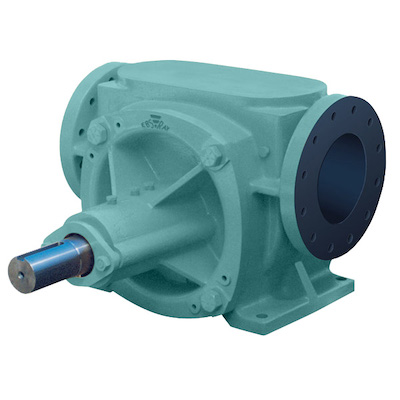

Ebsray L Series Model L80-1 image

L Series Lobe Pumps L80

The Ebsray® Model L80 Lobe Pump is designed and precision built for efficient transfer of medium to high viscosity clean liquids. It is a highly-efficient positive displacement rotary lobe pump that has only two moving parts to perform its pumping cycle. This lobe pump is especially suited for high viscosity liquids where increased efficiency is demanded, such as applications in the chemical, oil, paint, bitumen, resin, petrochemical and sugar industries.

Features and Benefits

  • Mechanical seal/hydraulic packing
  • Heating/cooling jackets
  • Reversible rotation and flow
  • Integral bypass/pressure relief valve - optional
  • Heavy-duty design
  • High overall efficiency at high viscosities
  • Self-priming, positive displacement
  • Low maintenance - long life, since lobe pump has only two rotating elements
  • Robust construction for heavy-duty applications

Performance Data

Performance Data (50 Hz)
Max. Flows 4,980 L/min (1,315 gpm)
Max. Differential Pressure 20 bar (290 psi)
Max. Viscosity 2,000,000 cSt
Temperature -40°C to 350°C (-40°F to 662°F)

Technical Data

Weight
Pump 750 kg
Part Material
Casing Cast Iron, Ductile Iron, Steel
Rotors Cast Iron, Ductile Iron
Shaft High-Tensile Alloy Steel, Stainless Steel
Porting
Inlet Flanged DN 200 (8”) CL150 ANSI, CL300 ANSI, Table H
Discharge Flanged DN 200 (8”) CL150 ANSI, CL300 ANSI, Table H

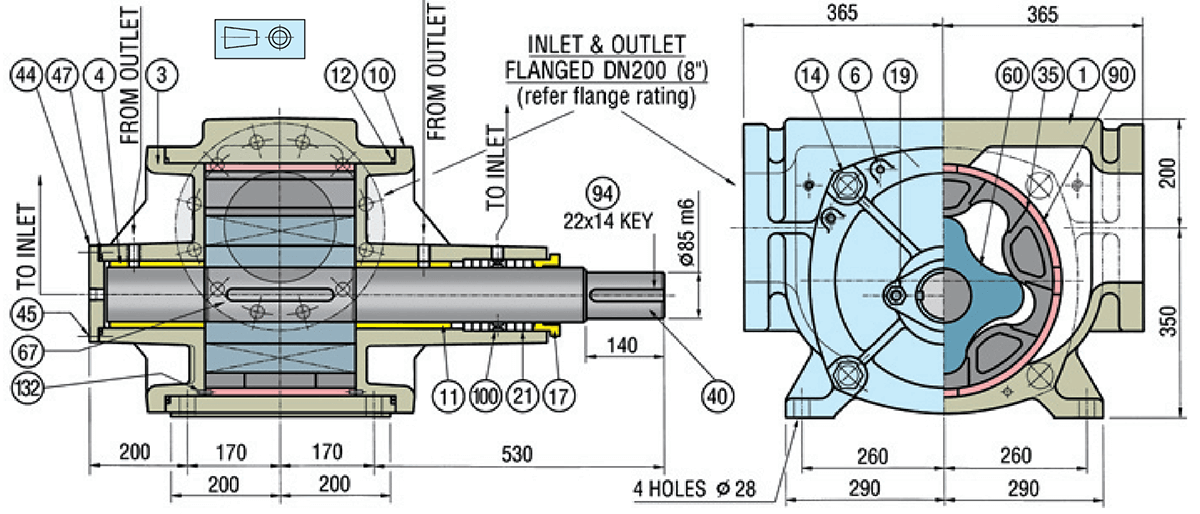

Model_L80
