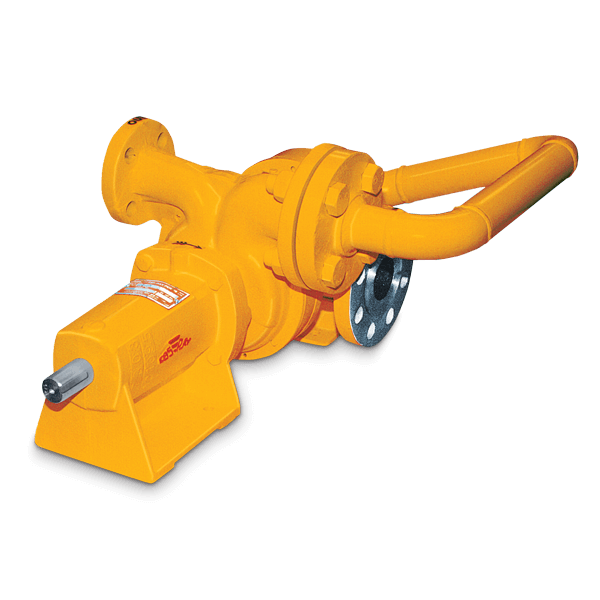

Ebsray RB10 Regenerative Turbine Pump

RB10 Regenerative Turbine Pump

Ebsray® R Series Model RB10 Regenerative Turbine Pumps have been designed and precision built for high-flow, high-pressure transfer of LPG, Autogas, propane, butane and DME from mainly underground or semi-buried storage tanks.

Ebsray Regenerative Turbine Pumps

Features and Benefits

  • Quiet and vibration-free operation
  • Direct coupled to 2,880 rpm or 3,500 rpm motors
  • Other drive options: v-belt, engine or PTO
  • Low maintenance
  • Flanged porting for simple installation and safe operation
  • Balanced mechanical seal and precision-lapped faces for excellent service life
  • Throttle bush for increased safety
  • Low NPSH booster first-stage impeller

Certifications

  • icon_cert-CE
  • icon_cert-Ex

Technical Data

Part Material
Pressure Casings Ductile Iron to ASTM A395
Porting
Inlet Flanged DN 50 (2") ANSI Class 300
Discharge Flanged DN 25 (1") ANSI Class 300

Performance Data

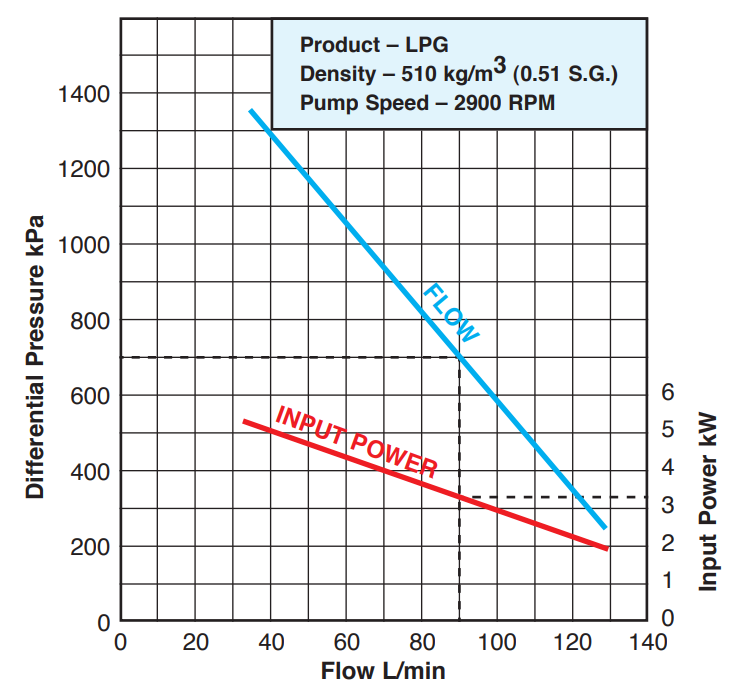

rb10-performance-chart
Performance Data (50 Hz)
Max. Flows 140 L/min (37 gpm)
Max. Differential Pressure 11 bar (160 psi)
Hydrostatic Test Pressure 70 bar (1,016 psi)

Applications

  • Driveway dispensing up to six hoses
  • Autogas applications
  • Bulk filling
  • Agricultural industries
  • Aerosol Industries
  • Marine dispensing
  • Cylinder filling
  • Forklift refueling
  • Direct burner or vaporizer feed
