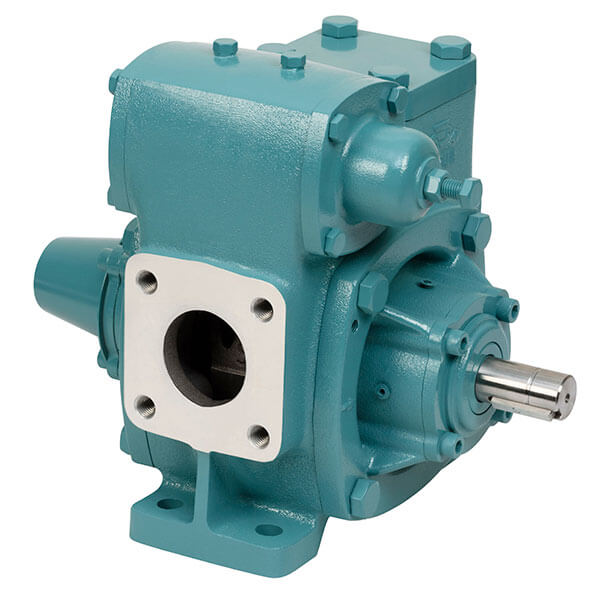

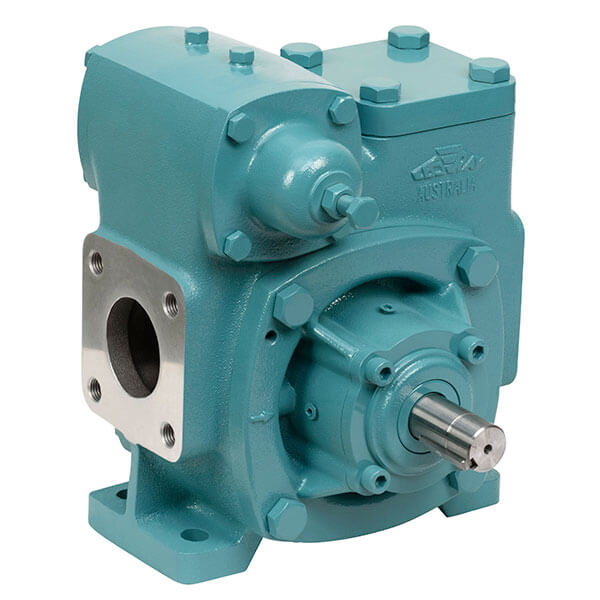

Ebsray V25 Sliding Vane Pump LR-Ebsray-V25-83-Sliding-Vane-Pump_2 LR-Ebsray-V25-83-Sliding-Vane-Pump_3

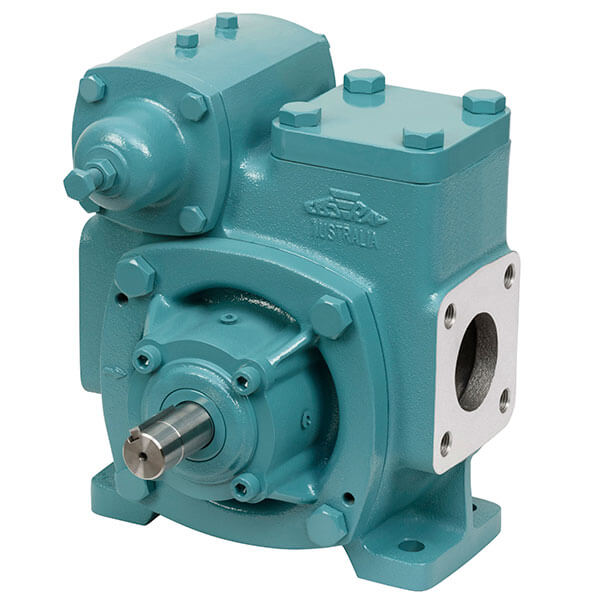

V25 Rotary Vane Pump

Ebsray® V Series Model V25 Rotary Vane Pumps have been designed and precision built for efficient transfer of a variety of liquids over a wide range of viscosities with lubricating or non-lubricating characteristics. Built for versatility, V25 Rotary Vane Pumps feature a three-port design that provides numerous mounting options, including up to eight different porting and drive configurations. These vane pumps include 2.5-in ports.

V25 Rotary Vane Pumps are manufactured under strict guidelines and procedures and are run tested prior to shipment in order to ensure performance in accordance with pump specifications. These high standards allow V25 Rotary Vane Pumps to provide a long and trouble-free service life.

Features and Benefits

    • Quiet operation
    • High overall efficiency
    • Low maintenance and long service life
    • Internal wearing parts replaceable without removing pump from piping
    • Dust seals for extra protection against moisture and dirt
    • Lightweight, robust and compact
    • Positively actuated synthetic vanes; self compensate for wear
    • Integral adjustable relief valve
    • Mechanical seals as standard
    • CE marked, ATEX compliant for specific applications
    • Variable porting options:
      • Double-ended shaft option
      • Direct coupling to synchronous speed electric motors, speed variators, PTOs or engine driven
      • Facility for close-coupled hydraulic motor connection
      • Belt drives
      • Designed with three ports to provide either two suction or two discharge options allowing 90° or 180° degree configuration - up to eight porting configurations available

Applications

    • Fuel oils
    • Transformer oils
    • Lube oils
    • Solvents
    • Distillate
    • Chemicals
    • Petrol
    • Edible oils
    • Kerosene
    • Aviation fuels

Certifications

  • icon_cert-CE
  • icon_cert-Ex

Performance Data

Performance Data (50 Hz)
Max. Flows 600 L/min (159 gpm)
Max. Differential Pressures 8.5 bar (123 psi)
Viscosity Range 0.5 to 10,000 cSt
Temperature 0°C to 100°C (32°F to 212°F)

Technical Data

Weight
Pump 41.5 kg
Pump Material
Body Aluminum Alloy
Rotors Cast Iron
Vanes Synthetic
Liner Cast Iron
Shaft High-Tensile Steel
Bearing Housing Cast Iron
Porting
Inlet DN 65 (2.5") SQ Flange
Discharge DN 65 (2.5") SQ Flange
