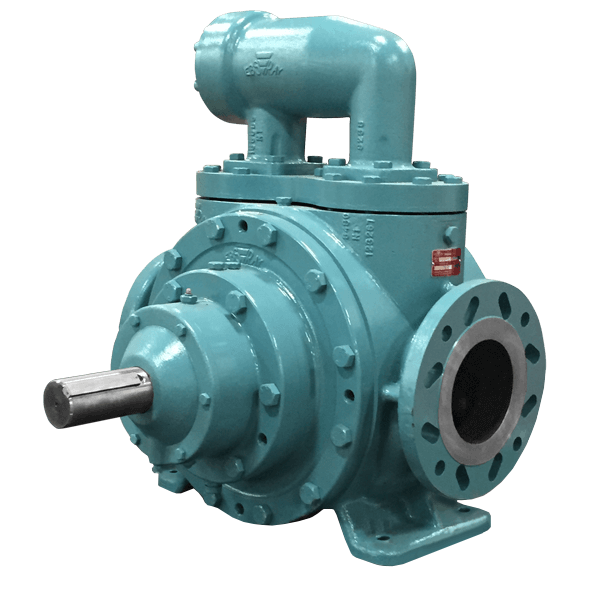

Ebsray V6000 Sliding Vane Pump

V6000 Rotary Vane Pump

The Ebsray® Model V6000 Rotary Vane Pump is designed and precision built for efficient handling of LPG, Propane, Butane, DME, Anhydrous Ammonia and more. V6000 Rotary Vane Pumps are foot-mounted and available with 6-in ports.

Features and Benefits

  • Meets API 676 requirements
  • Quiet operation, low NPSHR
  • High overall efficiency
  • Low maintenance - long life
  • Internal wearing parts replaceable without removing pump from system
  • Vanes positively actuated, self compensating for wear
  • Self-priming, excellent vapor handling
  • Integral/alternative top porting for bypass/relief valve
  • Drive options available to suit many applications
  • Shaft sealing - balanced, fully retained, multi-spring standard shaft sealing ensures simple maintenance; optional tandem or double arrangements available to suit your application

Applications

  • Fuel oils
  • Transformer oils
  • Lube oils
  • Solvents
  • Distillate/diesel
  • Chemicals
  • Petrol
  • Vegetable oils
  • Kerosene
  • Aviation fuels
  • LPG
  • Oil additives

Certifications

  • icon_cert-iso-9001

Performance Data

Performance Data (50 Hz)
Max. Flows 3,750 L/min (991 gpm)
Max. Differential Pressure 11 bar (160 psi)
Viscosity Range 0.1 to 20,000 cSt
Temperature 0°C to 150°C (32°F to 302°F)

Technical Data

Weight
Pump Up to 590 kg depending on construction type
Part Material
Body Ductile Iron or Cast Steel
Rotors Ductile Iron
Vanes Univane
Liner Cast Iron
Shaft Stainless Steel
Bearing Housing Ductile Iron or Cast Iron
Porting
Inlet DN150 (6") ANSI CL 150 flange
Discharge DN150 (6") ANSI CL 150 flange
