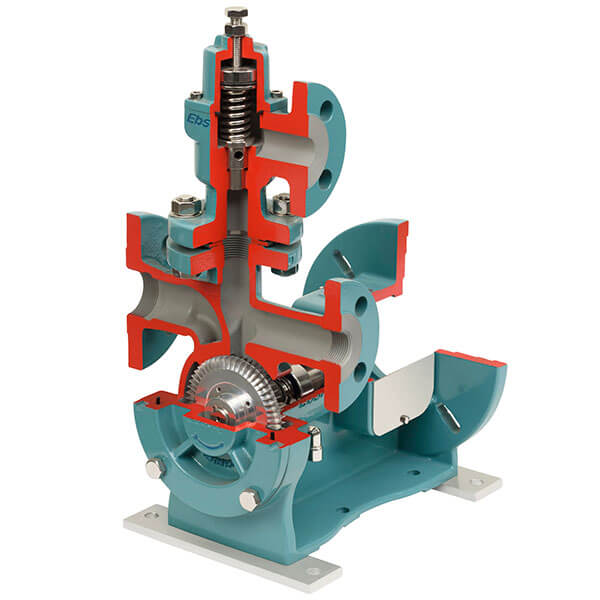

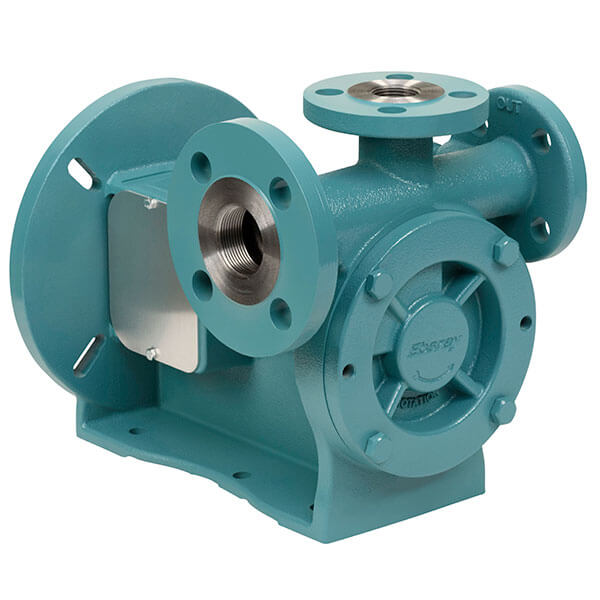

Ebsray RC40 Regenerative Turbine Pump_1 Ebsray Regenerative Turbine Pump_2 Ebsray RC40 Regenerative Turbine Pump_3

RC40 Regenerative Turbine Pump

Ebsray® R Series Model RC40 Regenerative Turbine Pumps are single stage pumps designed for handling LPG and other gaseous liquids. The model RC40 offers enhanced performance by increasing flow rates and versatility while reducing overall pumpset costs. The RC40 Regenerative Turbine Pump is suitable for the transfer of a wide variety of liquefied gases, including LPG, Autogas, DME, aerosols, CO2 , industrial refrigerants and anhydrous ammonia.

Features and Benefits

  • One flange fits NEMA and IEC B5 and B14 motors
  • Close-coupled or long-coupled design
  • Three-ported design (two discharge ports)
  • Simple single-stage design
  • Ductile iron pressure retaining parts (body/cover)
  • Minimum temperature rating of -40°C (-40°F)
  • Shaft: high-tensile alloy steel
  • Unique cartridge design mechanical seal
  • Complies with ATEX, UL51 and AS1596 codes
  • Versatile flange options: NPT, ANSI or DIN
  • Maximum working pressure of 34 bar (492 psi) (note: 27.5 bar (400 psi) in regions where Underwriters Laboratories UL51 applies)
  • Motor speeds up to 3,800 rpm (3,600 rpm in regions where Underwriters Laboratories UL51 applies)

Certifications

  • icon_cert-Ex

Technical Data

Part Material
Body, Cover Ductile Iron - ASTM 536
Impeller Bronze
Shaft Carbon Steel
O-Rings FKM
Coupling Guard Aluminum
Porting
Inlet 1-1/2” NPT, Flanged to suit 1-1/2” ANSI Class 300 and DN40 DIN PN40
Discharge 1” NPT, Flanged to suit 1” ANSI Class 300 and DN25 DIN PN40

Performance Data

Ebsray-RC20-Curves_50-and-60Hz-1
Ebsray-RC20-Curves_50-and-60Hz-1
Performance Data (50 & 60 Hz)
Max. Flows 50 Hz: 165 L/min (44 gpm)
60 Hz: 195 L/min (51 gpm)
Max. Differential Pressure 14 bar (200 psi)
Hydrostatic Test Pressure 70 bar (1,015 psi)

Applications

  • Autogas dispensing up to 4 hoses
  • Transfer and industrial dispensing
  • Cylinder filling
  • Fleet refueling
  • Forklift refueling
  • Direct burner and vaporizer feed
  • Above ground and underground tanks;
