Ebsray Bitumen SB-Series Spraybars

Bitumen Spraybars

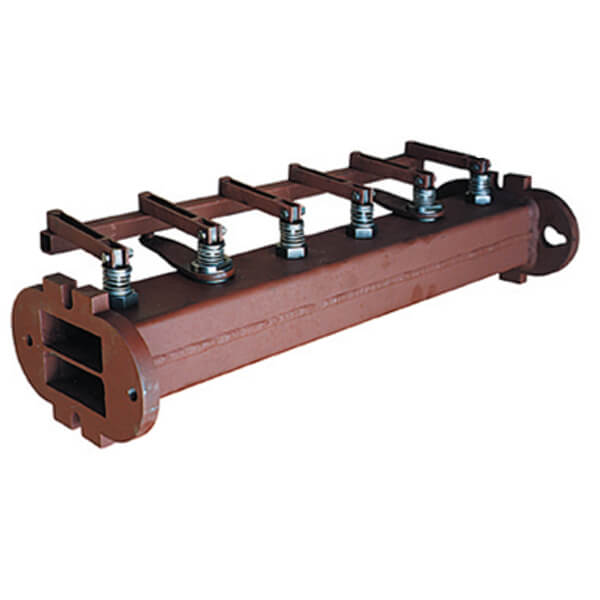

Ebsray® Spraybars are built to meet the stringent operational and environmental requirements for professional road spraying while being configured to suit applications from a modular build. Innovative design, precision machining, accurate assembly and testing ensures long service life and "leak free" operation.

These spraybars, which are used in conjunction with Ebsray bitumen pumps, are designed and manufactured to the highest quality standards, and have been developed in close cooperation with the bitumen industry to meet present and future operational needs. All design, manufacturing, assembly and testing is carried out under Ebsray's third party accredited quality system, to ISO 9001.

Every Ebsray spraybar is hydrostatically tested prior to shipping to guarantee product integrity in accordance with the specifications.

Features and Benefits

  • Recirculation system for liquid temperature maintenance eliminates tap blockages
  • Environmental requirements met by eliminating the need to "dump" product during cleaning operations - no blowing required
  • Cleaning procedures greatly simplified. Modular construction to suit a variety of configurations, bar lengths, capacities, etc.
  • Zero-leak precision taps incorporating spindle O-Rings for positive sealing, eliminating tap lock-up and allowing low torque actuation
  • Accurate spraybar alignment with machined flanges and extension connections
  • Custom designed (if required) to suit unique installations and applications
  • Bar folds into traveling position without disconnecting tap linkages; shear points designed to protect main bar and turnups in the event of extensions hitting an obstruction
  • Spraybar lengths may be varied to suit application requirements
  • Tap linkage system allows quick and simple isolation/reconnection of single or multiple taps without the use of any tools
  • Taps
    • O-Ring design
    • Reduced maintenance
    • Increased life
    • Low torque actuation
    • Zero leak
    • "Lift handle" to isolate tap/s depending on spray pattern required

Certifications

  • icon_cert-iso-9001

Performance Data

Performance Data
Max. Flows 1500 L/min (396 gpm)
Max. Length 8 m (78 tap)
Center Sections 16-Tap & 22-Tap
Turnups 4-Tap & 7-Tap
Extensions 3-Tap & 6-Tap

Applications

Ebsray manufactures a range of engineered Spraybars for all grades of bitumen, cutback, emulsion and more, which feature internal product recirculation operation for truck or trailer mounting in the toughest road spraying environments. The Spraybars are used in conjunction with Ebsray's range of purpose built heavy duty bitumen pumps, either internally tank mounted or external on tanker.
