RC20 Regenerative Turbine Pump

Ebsray® RC Series Regenerative Turbine Pumps are designed and precision-built for high-pressure transfer of LPG, autogas, propane, and butane.

Ebsray Regenerative Turbine Pumps

Features and Benefits

  • Low maintenance - single stage impeller
  • Close coupled to standard IEC or NEMA frame flanged 2 pole motors
  • Unique cartridge design mechanical seal
  • Integral API 682-ISO 21049 compliant throttle bush
  • Extremely quiet, vibration free operation
  • Very simple to service

Certifications

  • UL Certification
  • icon_cert-iso-9001

Technical Data

Part Material
Body, Cover Ductile Iron - ASTM 536
Impeller Bronze
Shaft Carbon Steel
O-Rings FKM
Coupling Guard Aluminum
Porting
Inlet 1” NPT Tapped Ports
Discharge 1” NPT Tapped Ports

Performance Data

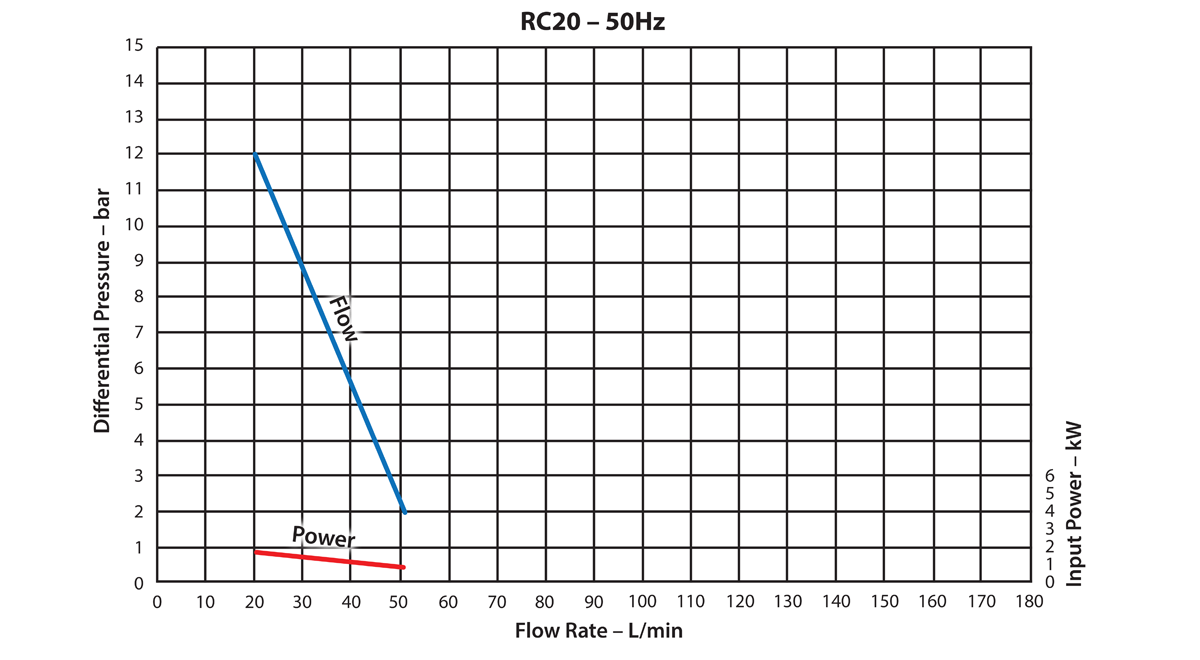

Ebsray-RC20-Curves_50-and-60Hz-1

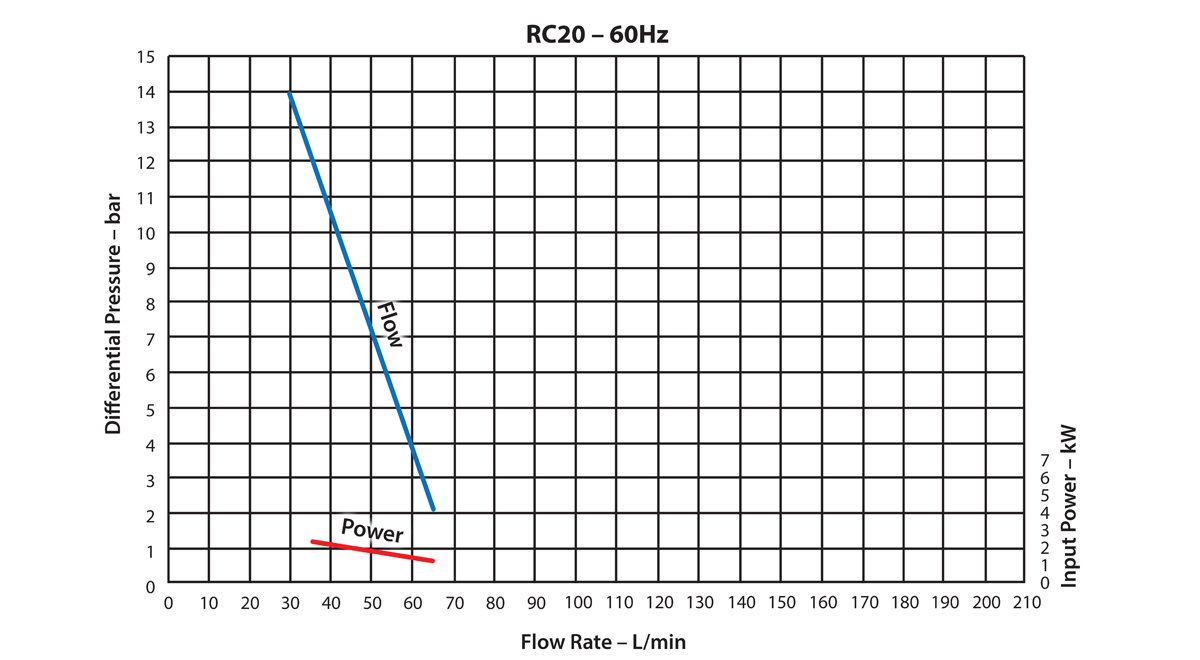

Ebsray-RC20-Curves_50-and-60Hz-2
Performance Data (50 & 60 Hz)
Max. Flows 50 Hz: 48 L/min (12 gpm)
60 Hz: 60 L/min (16 gpm)
Max. Differential Pressure 12 bar (175 psi)
Hydrostatic Test Pressure 70 bar (1,015 psi)

Applications

  • LPG Autogas single-hose dispensers
  • Industrial dispensing
  • Autogas refueling
  • Marine dispensing
  • Portable tanks
  • Cylinder filling
  • Forklift refueling
  • Direct burner or vaporizer feed
