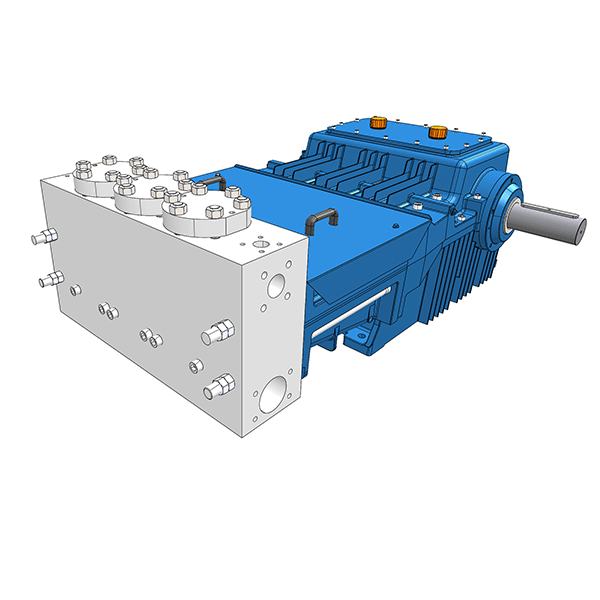

Reciprocating Triplex Plunger Pumps - API 674 TN260

Performance and Specifications

Mouvex reciprocating triplex plunger pumps cover most applications in the oil and gas industry, both offshore and onshore, and in the petrochemical field, especially when high pressures are required. Other typical applications include those in the LPG and LNG field. Mouvex TN260 pumps are triplex plunger pumps designed according to API 674 norms.

Performance

• Stroke: 125 mm
• Maximum Flowrate: 82 m3/h
• Maximum power at shaft end: 191.1 Kw
• Maximum Differential Pressure: 938 bar
• Approximate weight: 2,700 Kg (5,952 lbs)
• Max. viscosity: 100 cSt
• Max. solid size: 100 µm
• API speed rating: 312 rpm
• Suction and discharge connections are available on both sides

Options

• Self-supporting
• Gear reducer, couplings or belts
• Instrumentations: pressure, temperature switch, monitoring devices
• Drivers: electric motor or fuel motor
• Accessories: pulsation dampeners, suction stabilizers, valves, process and service filters
