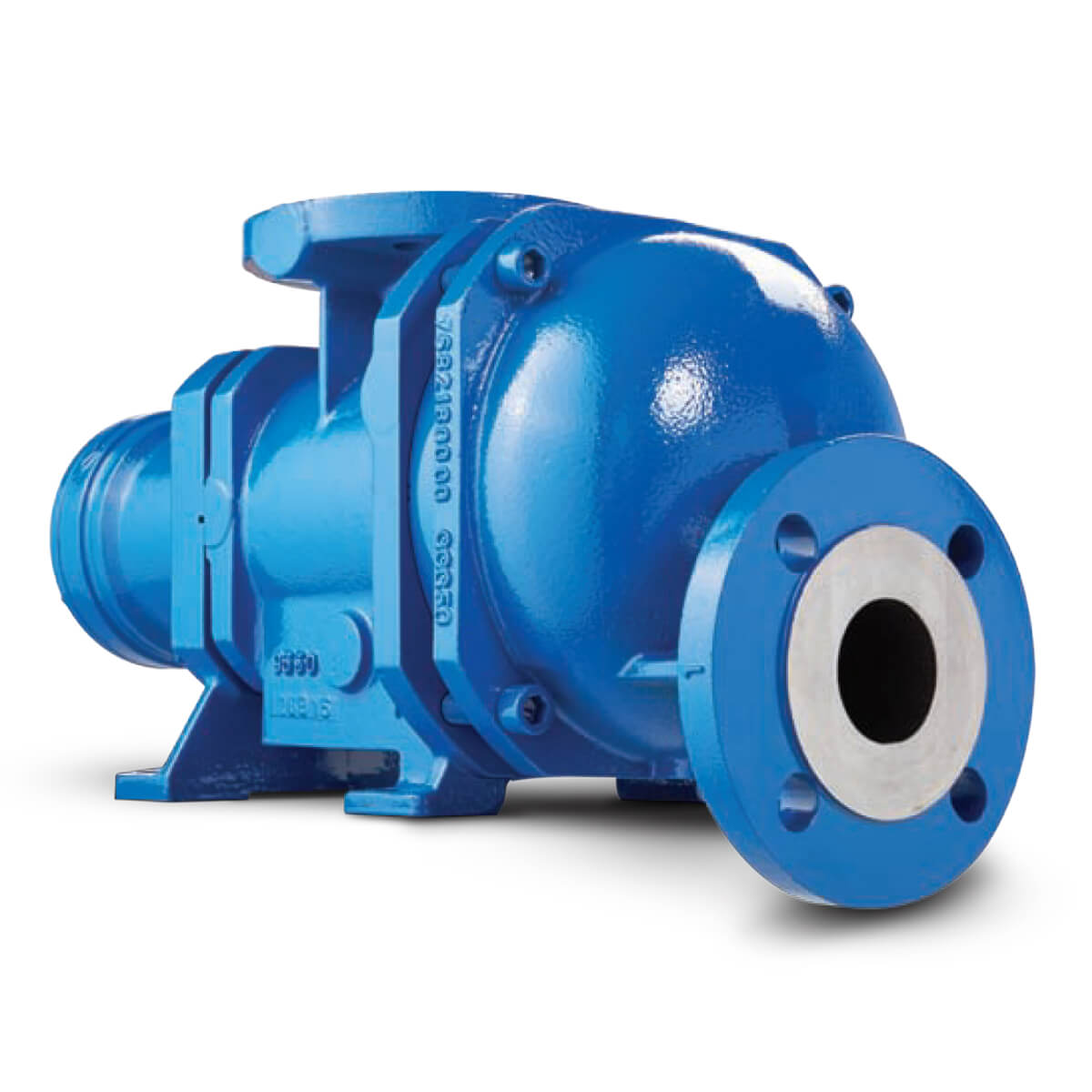

C Series Eccentric Disc Pumps

Mouvex® C Series Eccentric Disc Pumps have been specifically designed for air-sensitive and shear-sensitive products. They feature a unique seal-less design with a double stainless-steel bellows that ensures durability, safety and product containment. The result is a pump that delivers very high suction and discharge pressures that allow it to self-prime and fully strip lines, a critical consideration for maximizing product recovery.

Performance and Specifications

Performance

  • Seal-free design means leak free without mechanical seal, packing or magnets
  • Self-priming with strong suction power
  • Ability to clear the pipes
  • Ability to run dry
  • Low shear
  • Maintenance of the delivery/pressure performance over time due to automatic disc/cylinder adjustment
  • Outstanding volumetric efficiency
  • Pumped product constantly renewed
  • Ability to pump low and high viscosity products
  • Output not affected by viscosity variation
  • Low linear speed
  • Low pulsation effect

Options

  • High temperature: HT version for C4, C8, C12, C18 models enable high-temperature transfer (up to 150° C continuous)
  • Double bellow
  • Bellows Monitoring System (BMS)
  • Heating or cold jacket
  • Mobile unit
  • Stainless-steel shroud

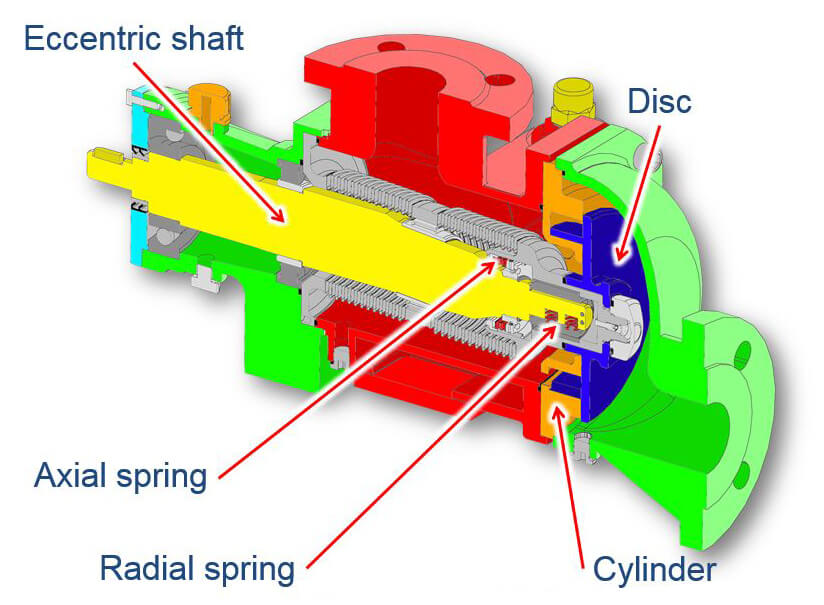

Section_view_C12_A
  • icon_cert-CE
  • icon_cert-Ex
  • TA Luft

Markets & Applications

Chemical and Industrial

Transfer applications that require consistent non-pulsing flow and gentle fluid handling (low-shear rates), including isocyanates, polyols, alcohol, acid, additives, solvents, glues, paint and coatings, methacrylate, soda, ether and detergents

Videos

Mouvex A Series Pump Enhancements

This video shows how the unique eccentric disc principle is beneficial to customers who want a pump that has high suction for priming, can run dry, offers a gentle low-shearing action and has the pressure to clear pipes on the discharge side of the pump.
