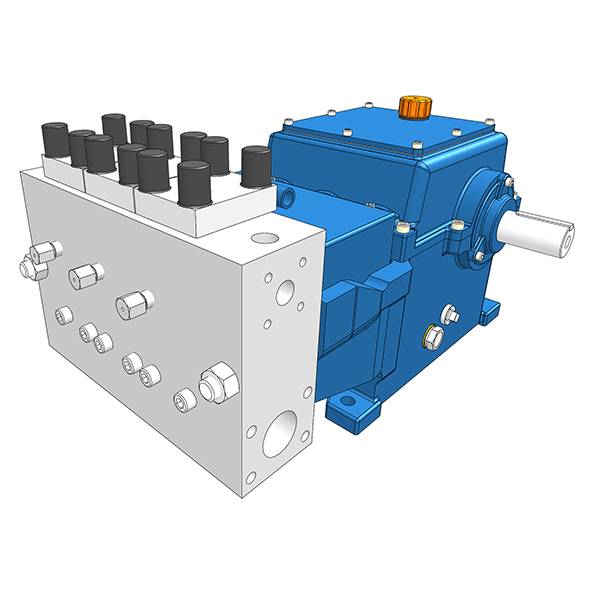

Reciprocating Triplex Plunger Pumps - API 674 TD18

Performance and Specifications

Mouvex reciprocating triplex plunger pumps cover most applications in the oil and gas industry, both offshore and onshore, and in the petrochemical field, especially when high pressures are required. Other typical applications include those in the LPG and LNG field. Mouvex TD18 pumps are triplex plunger pumps designed according to API 674 norms.

Performance

• Stroke: 34 mm
• Maximum Flowrate: 5.5 m3/h
• Maximum power at shaft end: 13.2 Kw
• Maximum Differential Pressure: 900 bar
• Approximate weight: 116 Kg (256 lbs)
• Max. viscosity: 100 cSt
• Max. solid size: 100 µm
• API speed rating: 490 rpm
• Suction and discharge connections are available on both sides

Options

• Self-supporting
• Gear reducer, couplings or belts
• Instrumentations: pressure, temperature switch, monitoring devices
• Drivers: electric motor or fuel motor
• Accessories: pulsation dampeners, suction stabilizers, valves, process and service filters
