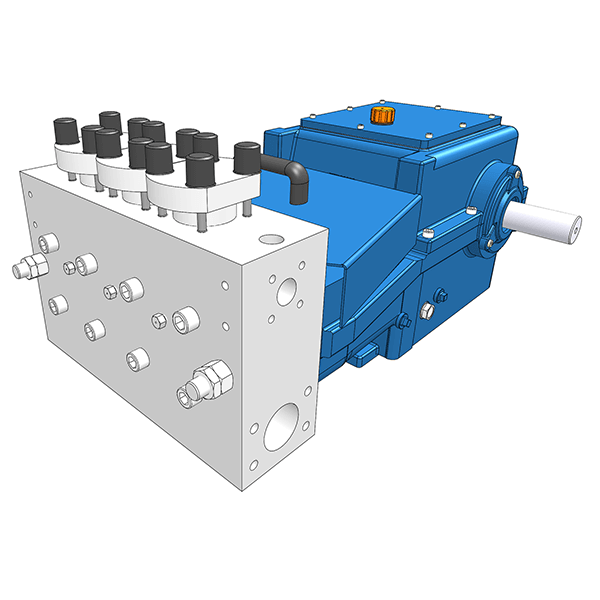

Reciprocating Plunger Pumps API 674 - NF50 NF50-3D

Reciprocating Triplex Plunger Pumps - API 674 NF50

Performance and Specifications

Mouvex reciprocating triplex plunger pumps cover most applications in the oil and gas industry, both offshore and onshore, and in the petrochemical field, especially when high pressures are required. Other typical applications include those in the LPG and LNG field. Mouvex NF50 pumps are triplex plunger pumps designed according to API 674 norms.

Performance

  • Stroke: 60 mm
  • Maximum Flowrate: 10 m3/h
  • Maximum power at shaft end: 36.7 Kw
  • Maximum Differential Pressure: 900 bar
  • Approximate weight: 290 Kg (639 lbs)
  • Max. viscosity: 100 cSt
  • Max. solid size: 100 µm
  • API speed rating: 432 rpm
  • Suction and discharge connections are available on both sides

Options

  • Self-supporting
  • Gear reducer, couplings or belts
  • Instrumentations: pressure, temperature switch, monitoring devices
  • Drivers: electric motor or fuel motor
  • Accessories: pulsation dampeners, suction stabilizers, valves, process and service filters

Flow Rate

NF50
Maximum Flowrate (API674 max speed) 10 m3/h 44USGPM
Maximum Differential Pressure 900 bar 13050 PSI
