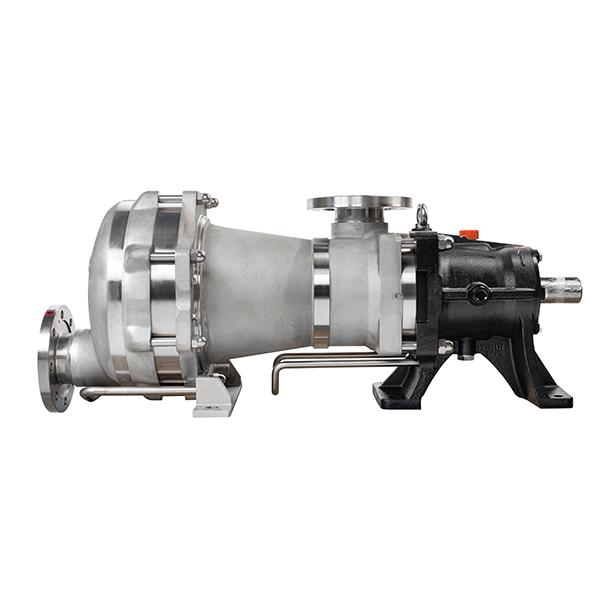

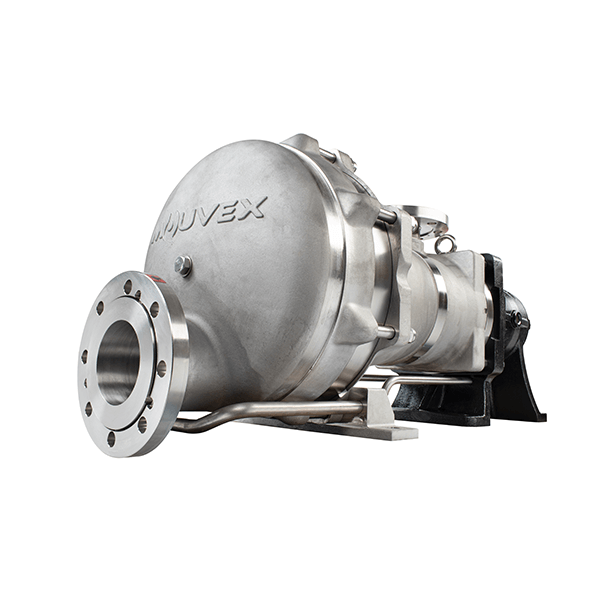

G-FLO Series G-Flo50-4-HD G-FLO Series Dynamic G-Flo50-3-HD

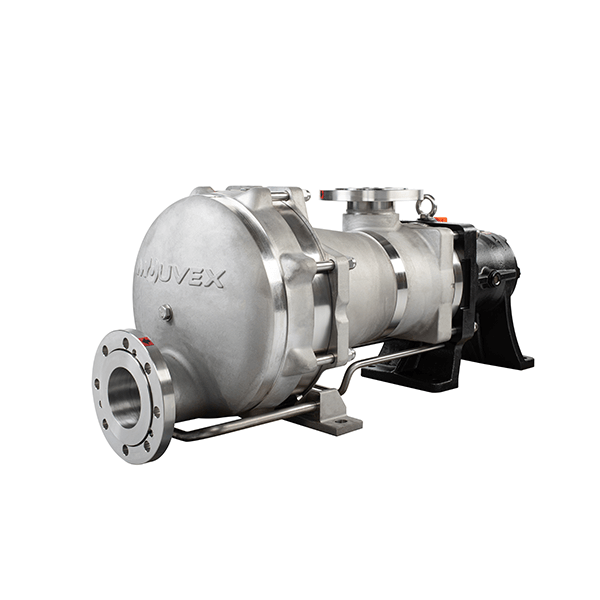

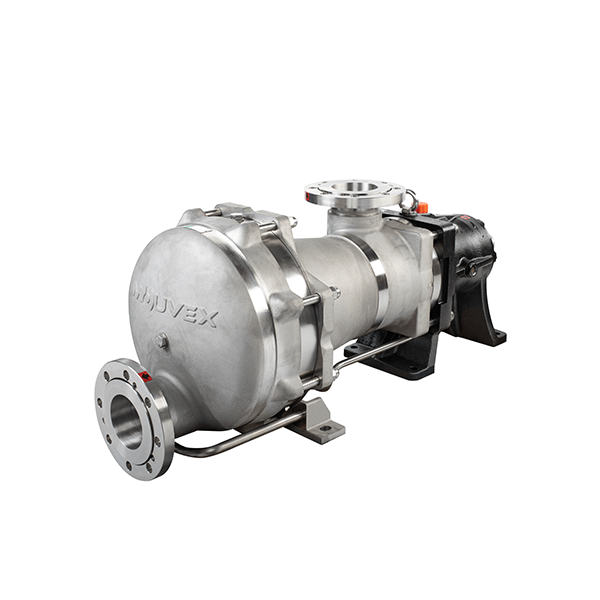

G-FLO Series Seal-less Eccentric Disc Pumps

Mouvex® G-FLO Seal-Less Eccentric Disc Pumps are designed to provide premium performance and the ultimate in full containment and safety in chemical-processing and industrial applications, delivering high suction vacuum and high discharge pressure that allow it to self-prime and fully maximize product containment. G-FLO pumps are ideally suited for the safe transfer of critical high-value fluids.

The seal-less eccentric disc transfer solution for chemical & industrial applications requiring high flow rates — up to 70 m3/h (300 gpm), 10 bar (145 psi).

Performance and Specifications

Performance

  • Provides consistent and efficient flow with a wide range of viscosities
  • Flow rate up to 70 m3/h (300 gpm), 10 bar (145 psi)
  • Eccentric disc design allows for consistent flow and improved energy savings
  • Extremely gentle, pulse-free flow to protect shear-sensitive products
  • Reduced maintenance with no mechanical seals or timing gears
  • Easy to install

Options

  • ISO PN 20 flanges / ANSI 150 flanges
  • ISO PN 16 flanges
  • Heating Jacket
G-FLO Logo
  • icon_cert-Ex
  • TA Luft

Markets & Applications

Suitable for most chemical and industrial transfer applications, in particular those that require consistent non-pulsing flow and gentle fluid handling (low shear rates).

Videos

Mouvex H-FLO & G-FLO Animation

Learn about the features and benefits of the Mouvex® H-FLO and G-FLO Series Pumps and see how they work.

Mouvex G-FLO Series Eccentric Disc Pump Success Story: Vinavil

This success story video illustrates why Vinavil chose Mouvex G-FLO Series Eccentric Disc Pumps to help optimize the company's production processes.
