Neptune Electronic Stroke Controller for Metering Pumps

Advanced Stroke Controller

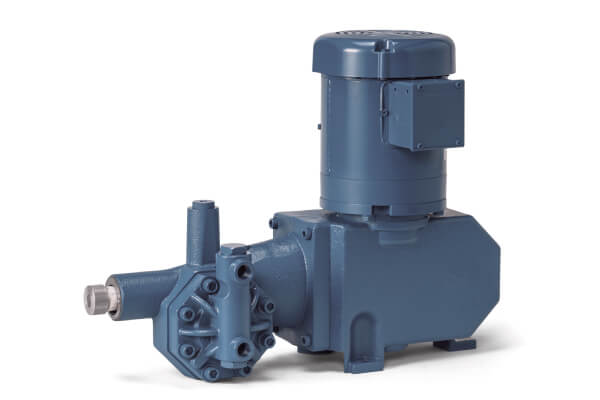

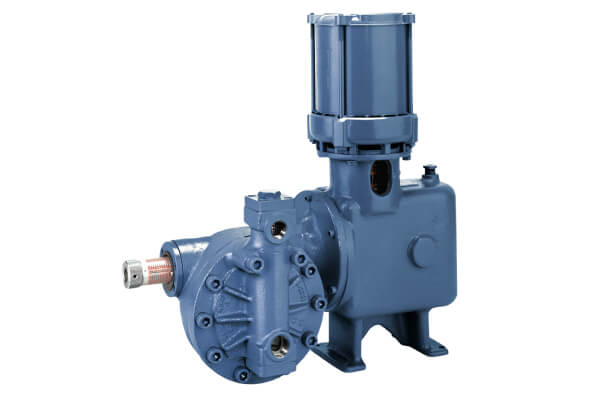

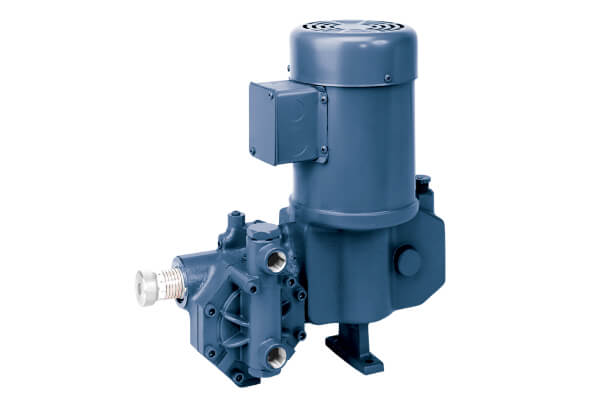

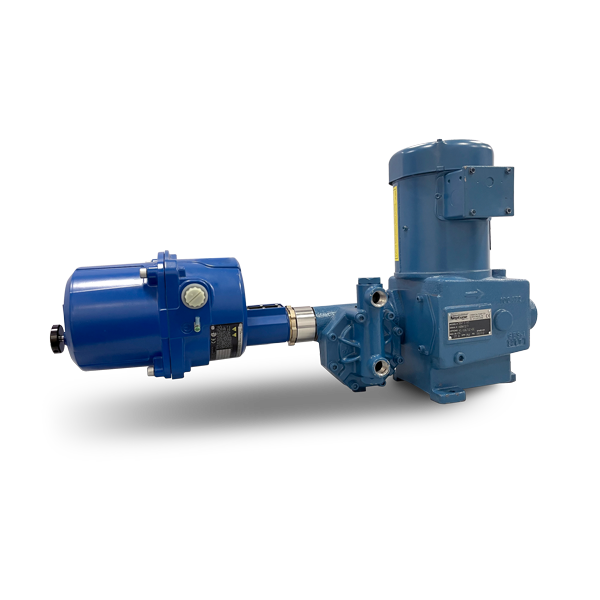

The Neptune Advanced Stroke Controller allows the capacity of any Neptune 500 Series, 600 Series, or 6000 Series Hydraulic Metering Pump to be automatically controlled in response to a standard 4-20 mADC process signal. The one-piece controller-positioner mounts directly to the pump. No machining or any special drillings or tapings are needed to retrofit the pump. The Advanced Stroke Controller is commonly used in water/wastewater, power and process industry applications or anywhere pump flow must be automatically proportioned or varied.

Power Supply
  • Single phase 120/240 VAC (switch selectable), 50/60 Hertz
Operating Temperature
  • -4°F (-20°C) to 150°F (65°C)
Input Signal
  • 4-20 mADC
Ouput Signal
  • 4-20 mADC
  • icon_cert-CE
  • csa logo
  •
logo_choice Select Your Pump

Features and Benefits

  • Precise pump stroke positioning accurate to ±0.20%
  • Easy LCD User Interface
  • Permanently lubricated, maintenance free
  • Unrestricted duty cycle
  • Signal interruption “memory.” If process signal is lost, unit can remain in its last position or move to a preset position
  • Alarm function
  • Manual operation if power or signal is lost
  • Stroke position indicator to permit fast, easy visual check of pump stroke length
