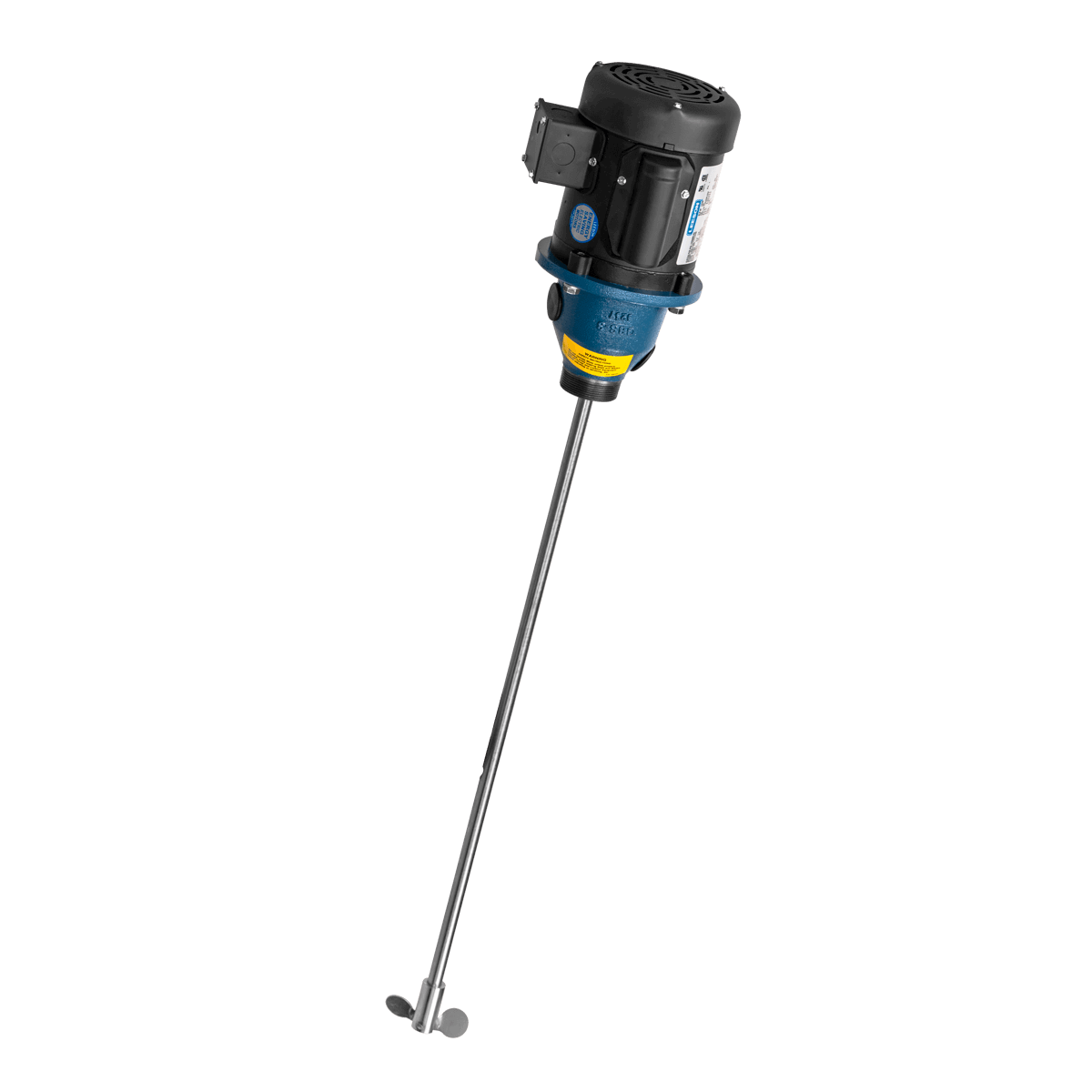

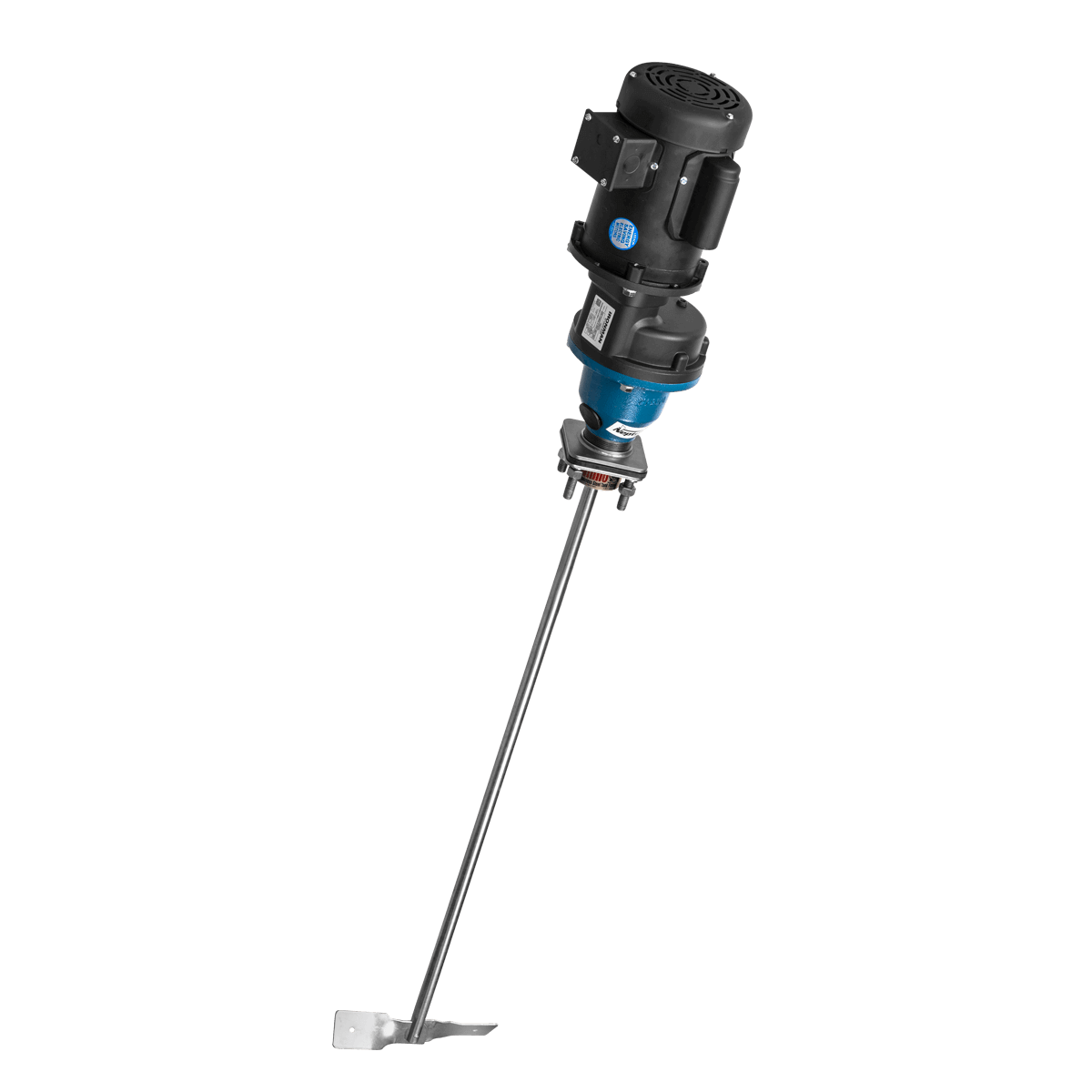

Neptune Direct Drive Air Driven Mixer - BF and BC Neptune Small Drum Mixer - H-3.0-003 Neptune Small Drum Mixer - E-1.0-001 Neptune Small Drum Mixer - F-4.0-004

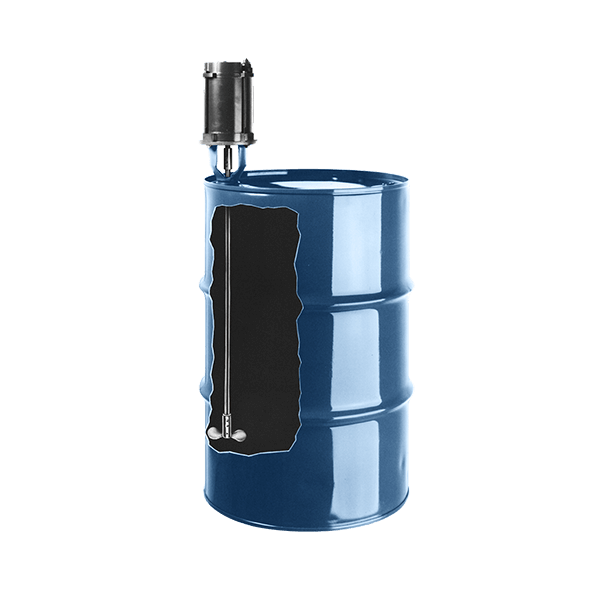

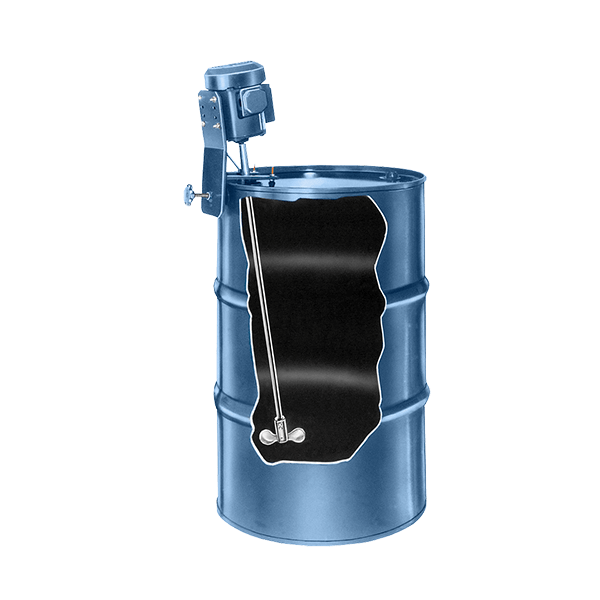

Drum Mixers - E & F Series, H & HGS Series

Neptune offers a complete line of bung entering drum mixers. Neptune’s E and F Series drum mixers are equipped to handle low viscosity/water-like liquids that use a folding propeller for proper drum installation. Neptune’s H and HGS Series are equipped with permanent blades to have the capability to handle more viscous fluids up to 32,000 cPs. All drum series mixers fit through the standard 2" (51 mm) bung on 55-gallon (208 liter) drums.

Propeller and Shaft Material
  • 316SS as standard
Housing Material
  • Cast aluminum
Motors
  • Totally-Enclosed Fan-Cooled
  • Explosion-Proof Enclosures Class 1 Group D
  • Air Motor
Shaft Length
  • 29" (737 mm) to 33-1/8" (838 mm)
Shaft Diameter
  • 5/8" (16 mm)
Propeller Size
  • 3-3/4" (95 mm)
logo_choice Select Your Pump

Features and Benefits

  • Air control valve included to allow speed adjustment
  • Motor may be stalled without damage
