Corporation Stops & Injection Quills

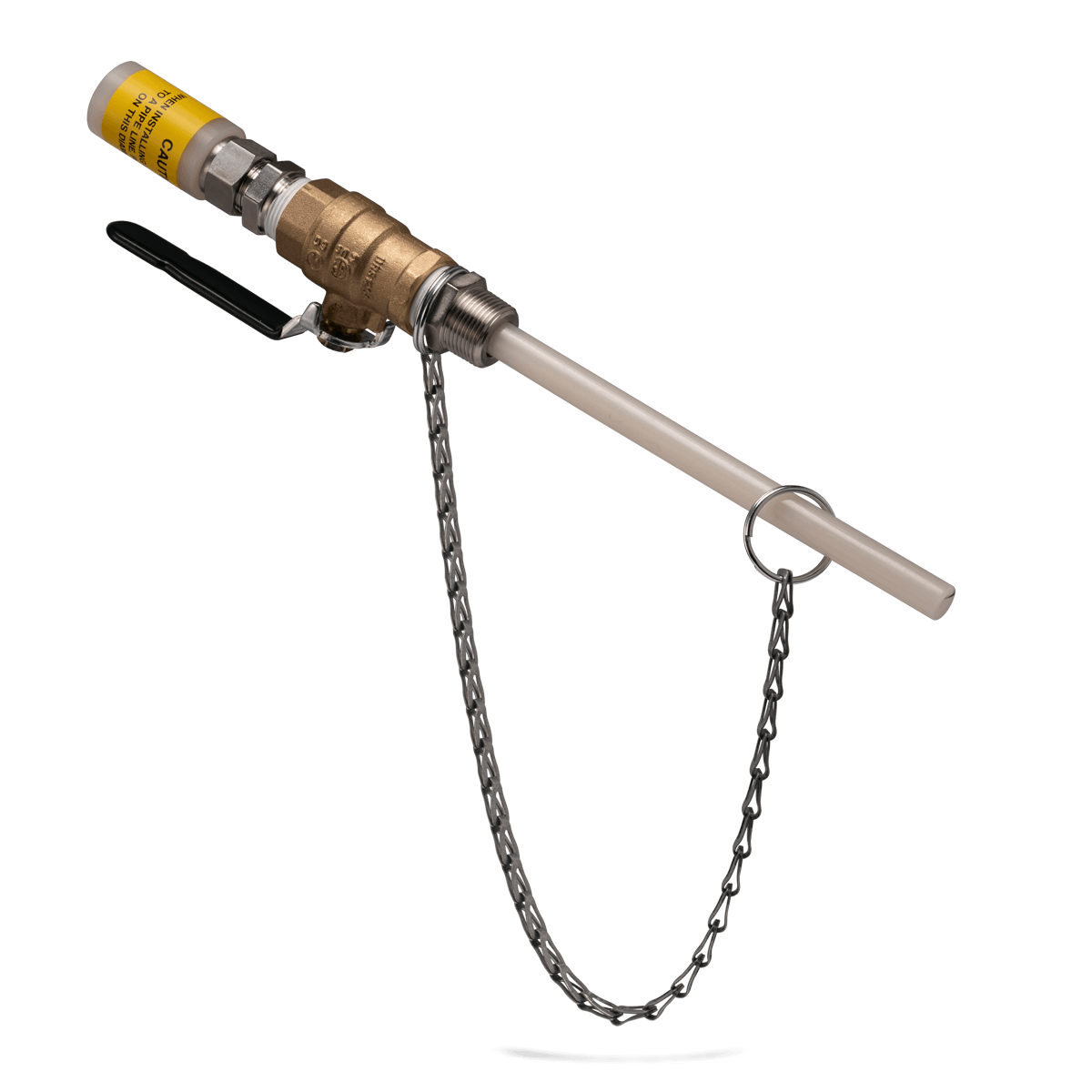

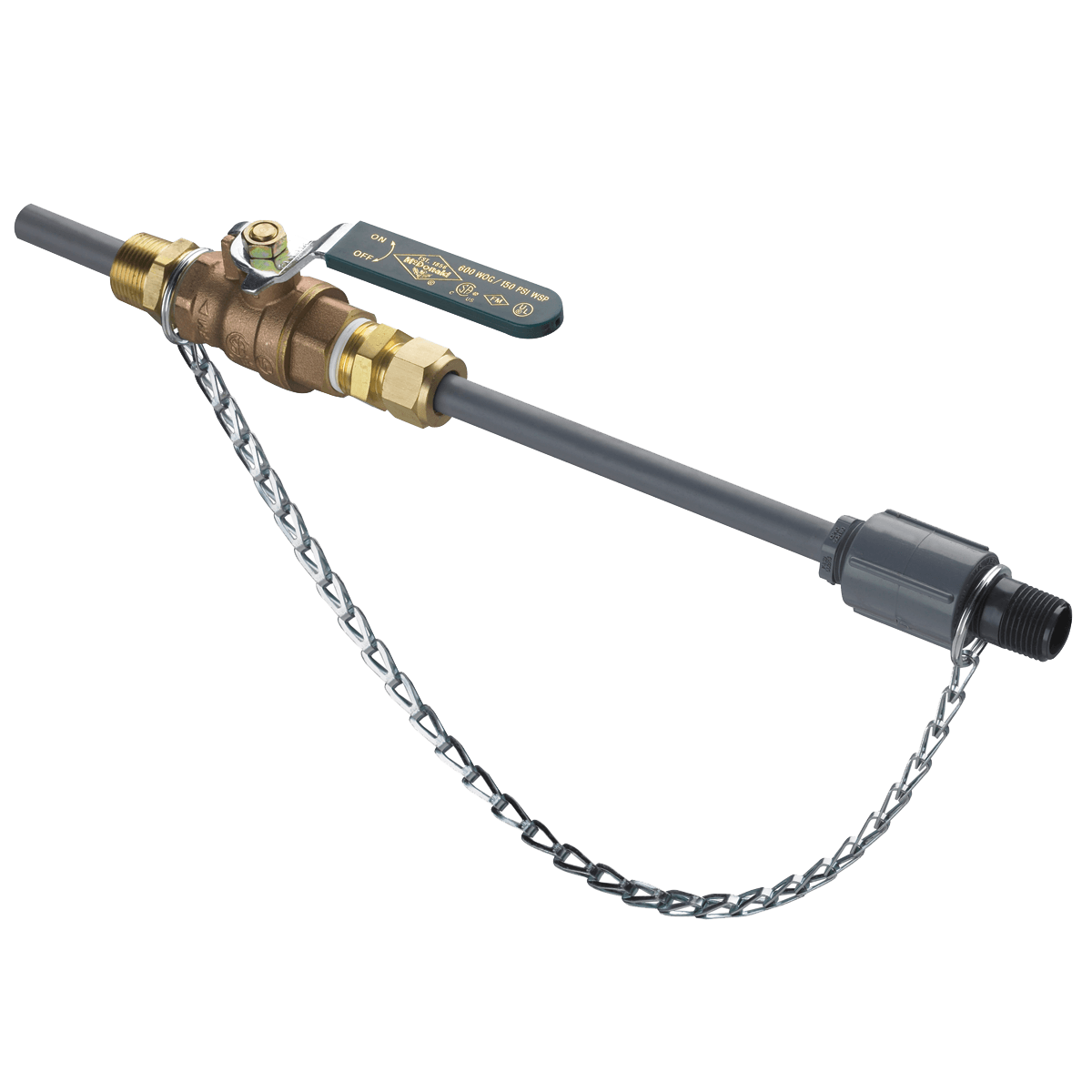

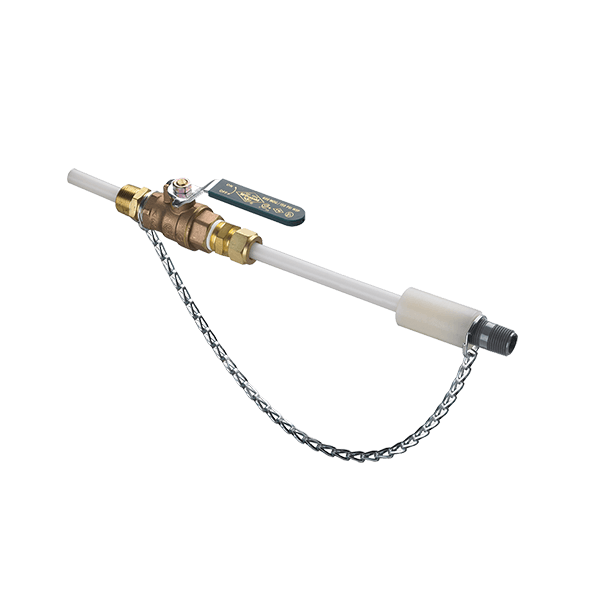

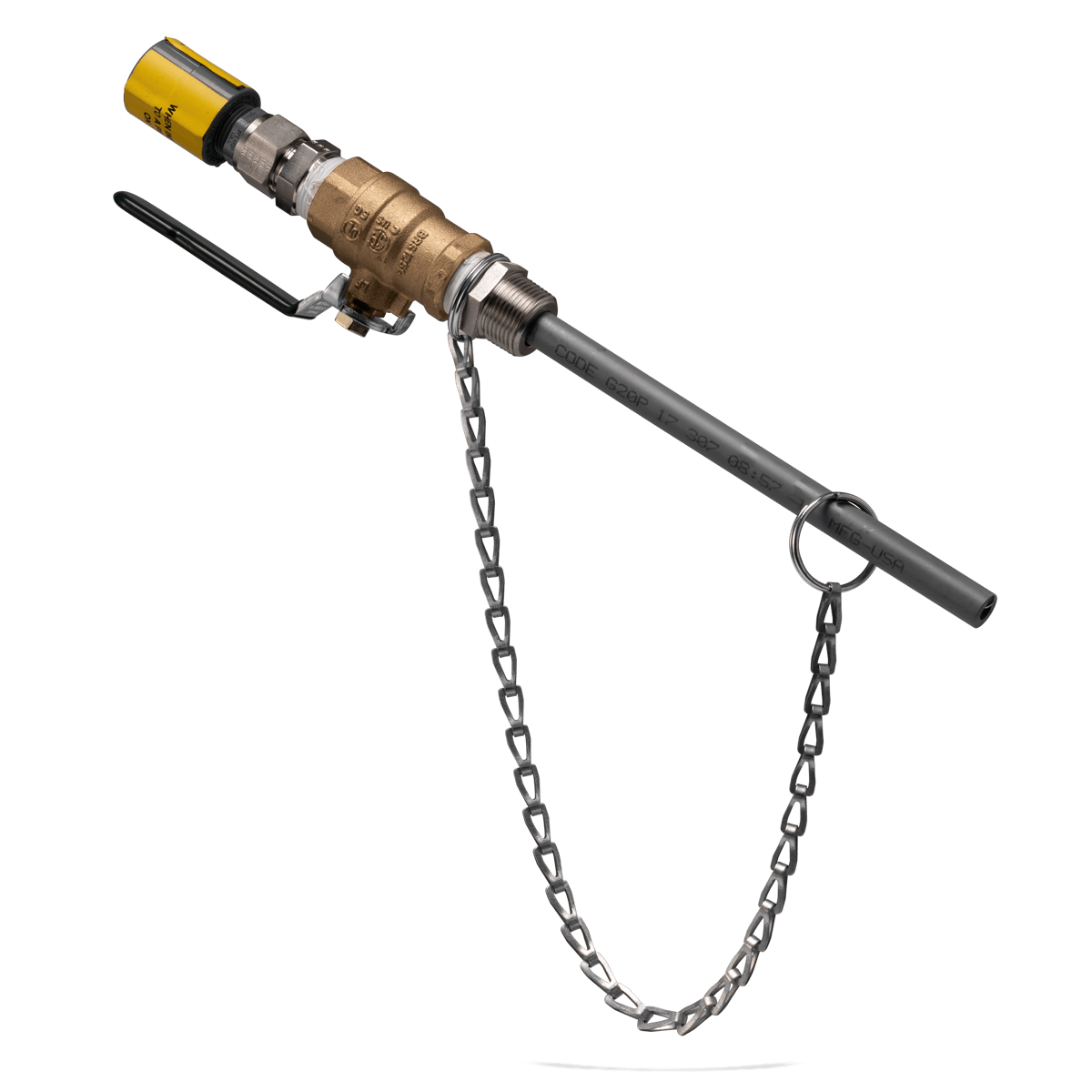

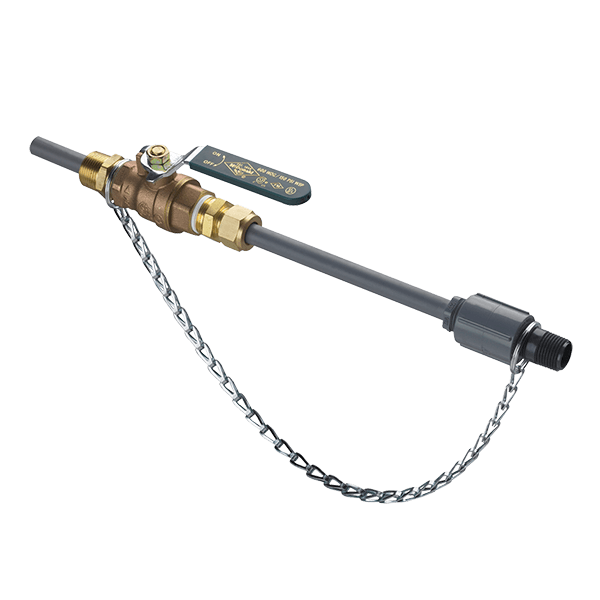

Corporation Stops

Corporation Stops with injection quills are used for injecting chemicals pumped by metering pumps into tanks, mains, cooling towers and process systems. The quill extends into the center of the stream providing more uniform dispersion of injection chemical. Corporation Stop can be mounted to a "hot tap" which is installed without draining the system. Corporation Stop allows the injection quill to be inserted or removed without having to drain or shut down the system.

  • Use to 150 psi (10.3 bar)
  • Available in 316SS, C-20, PVC, and PVDF
  • Available in 1/2", 3/4" or 1" process connections

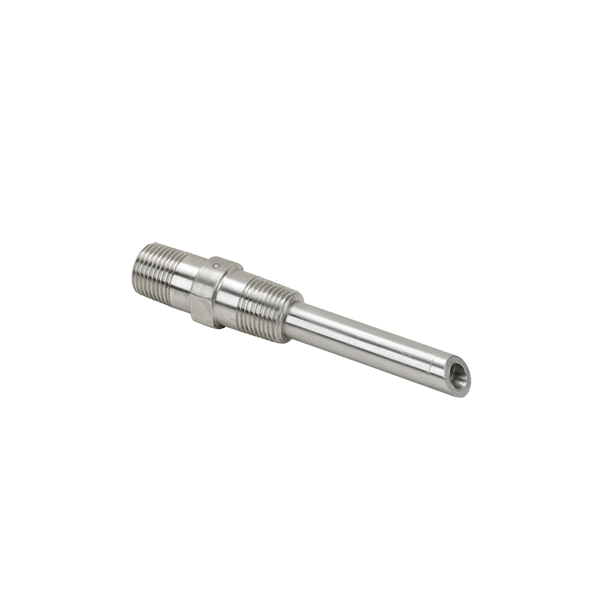

High Pressure Injection Quills

High Pressure Injection Quills are used to inject chemicals pumped by metering pumps into the turbulent flow zone of high pressure water or steam lines.

  • Use to 3,000 psi (206.8 bar)
  • Built-in check valve or without (QB Models)
  • Available in 316SS, C-20, PVC, and PVDF
