Neptune Bulk Container Mixer - JGT, RGT, and HGL Neptune Bulk Container Mixer Neptune Small Bulk Container Mixer - HGL-6.0-004

Bulk Container Mixers - JGT Series, RGT Series, and HGL Series

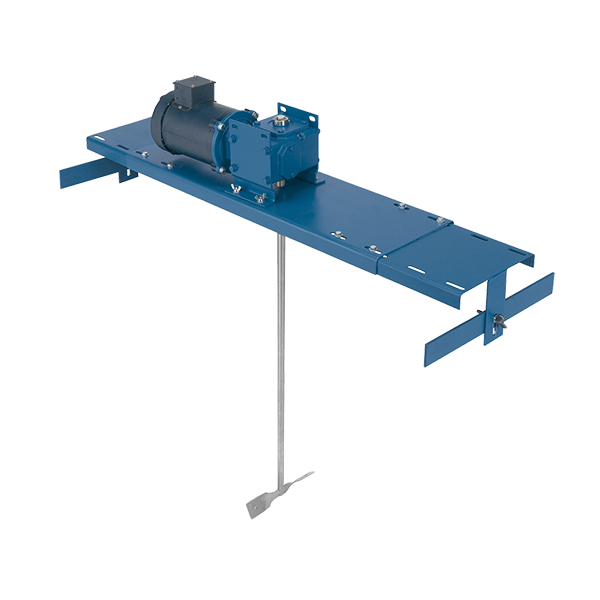

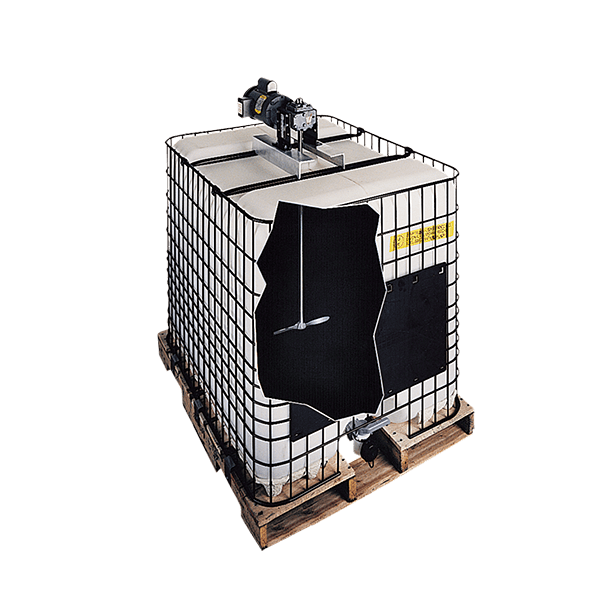

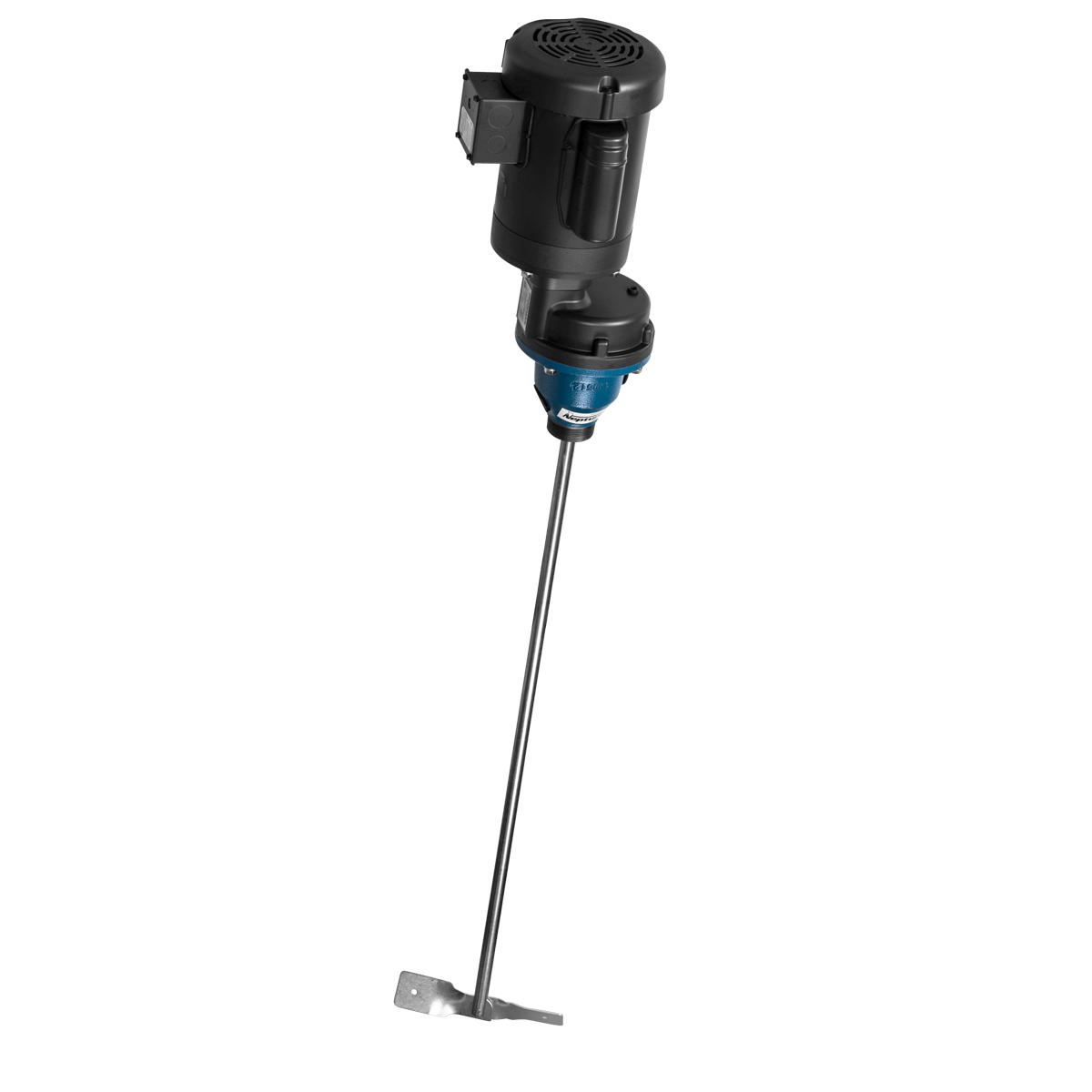

Neptune offers a variety of bulk container gear drive mixers with bung or bracket mount capabilities depending on the application requirements. Neptune’s JGT Series and RGT Series mixers mount to the tank or optional bracket. Neptune’s HGL Series mounts to a 2" (50.8 mm) coupling or flange. All bulk container mixer propellers fold to fit through 2" (50.8 mm) opening and opens to 9" (229 mm) operating diameter.

Propeller and Shaft Material
  • 316SS as standard
Housing Material
  • Cast aluminum
Motors
  • Totally-Enclosed Fan-Cooled
  • Air Motor
Shaft Length
  • 35-1/2" (902 mm) to 45" (1,143 mm)
Shaft Diameter
  • 3/4" (19 mm) to 1" (25 mm)
Propeller Size
  • 9" (229 mm) operating diameter
logo_choice Select Your Pump

Features and Benefits

  • 316SS propeller folds to fit through 2" (50.8 mm) opening; opens to 9" (228.6 mm) operating diameter
  • Second folding propeller bolts anywhere on 3/4" (19 mm) shaft (HGL and RGT Series only)
