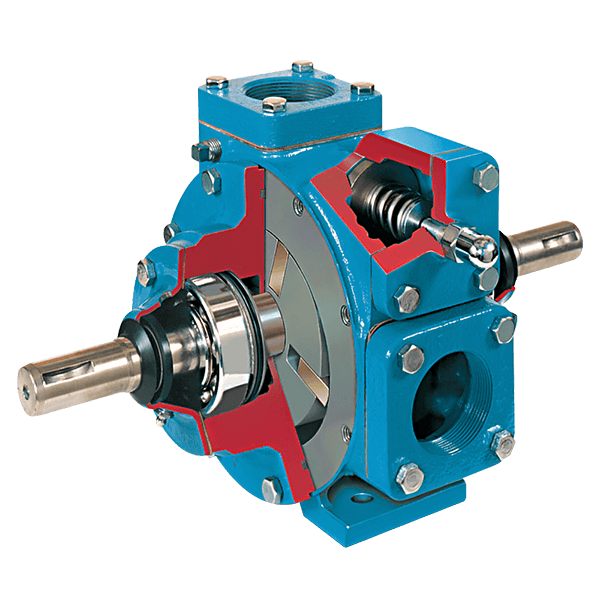

TXD1220 Sliding Vane Pumps High-Speed Truck Pumps with Adjustable Relief Valve for Excessive Pressure Protection

With pump speeds of up to 1,200 RPM, the durable, high-speed, Iron Line, TX1220 truck pumps provide fast and quiet operation while the sliding vane design offers sustained performance and reliability.

Adjustable relief valve protects pump from excessive pressure. Optional air operated piston-style relief valve offers easy hose and nozzle handling. T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in the piping and tanks.

Available in 2-, 2.5- and 3-in port sizes with flow rates from 20 to 265 US gallons per minute (4 to 60 m³/h) and pressures up to 125 psi (8.6 bar).

Features
Performance
Materials
Options
Maintenance
Downloads
Request a Quote

Features and Benefits

Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
Blackmer mechanical seal and ball-bearing construction provide maximum reliability
Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
Symmetrical bearing support assures even loading and wear for long life
Adjustable relief valve protects pump against excessive pressures
T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
Easy maintenance: vanes can be easily replaced -- without removing pump from truck
Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs

Applications

Transport delivery, fleet refueling & bulk transfer:

Fuel oil
Jet fuel & aviation fuel
Gasoline
Biodiesel
Ethanol & other alcohols
Solvents
Ester
Ketone
Naphtha
Ether
Amine
Aromatic
Terpene
Glycol
Additives

Chemical Compatibility Guide

Performance and Specifications

Available Models

TXD1220
TXD1225
TXD1230

MIN/MAX SPEED (rpm)

TXD1220 & TXD1225: 700 - 1,200
TXD1230: 270 - 900

NOMINAL FLOW RATE RANGE

TXD1220: 48 - 87 gpm (181 - 329 L/min)
TXD1225: 80 - 157 gpm (302 - 594 L/min)
TXD1230: 80 - 270 gpm (302 - 1,022 L/min)

Viscosity

0.2 - 20 cP

Differential Pressure

125 psi (8.6 bar)

PRIMARY MATERIALS OF CONSTRUCTION

Cast Iron

Connection Orientation

Side Inlet | Top Outlet

MAXIMUM WORKING PRESSURE (MAWP)

225 psi (15.5 bar)

Temperature

-25°F to 240°F (-32°C to 115°C)

Available Certificates

Hydrostatic Test
Performance Test
NPSH Test
Material (actual or typical)
Dimensional (actual or typical)

Catalog Options

Connections: NPT, Weld, Victaulic
Elastomers: FKM
Valve: Corrosion resistant
Inlet Strainer, Hydraulic Motor Adapter

TXD1220 Nominal Flow Range Rate

CLICK IMAGE TO ENLARGE

Dimensions

Pump Model		L	W	H	Approx. Wt.
TXD1220	in	16-3/4	10	8-11/16	70 lb
TXD1220	mm	425.5	254	220.6	32 kg
TXD1225	in	18-1/4	10-3/4	9-5/8	94 lb
TXD1225	mm	463.6	273.1	244.5	43 kg
TXD1230	in	20-1/3	13-1/2	12-4/5	152 lb
TXD1230	mm	515.9	342.9	325.4	69 kg

Materials of Construction

Pressure Parts	Materials
Cylinder	Cast Iron: ASTM A48
Heads	Cast Iron: ASTM A48
Relief Valve Cover	Cast Iron: ASTM A48

Pump Options

Options	Details
Orientation Options	Double End: Drive pump from either side
Porting Options	Top Outlet: Outlet 90° offset from inlet
Connection Options	NPT (threaded)
Connection Options	Welded, Victaulic
Mounting Options	Pump Only with Hydraulic Motor Adapter and/or Inlet Strainer
Sealing Options	Blackmer single mechanical seal
