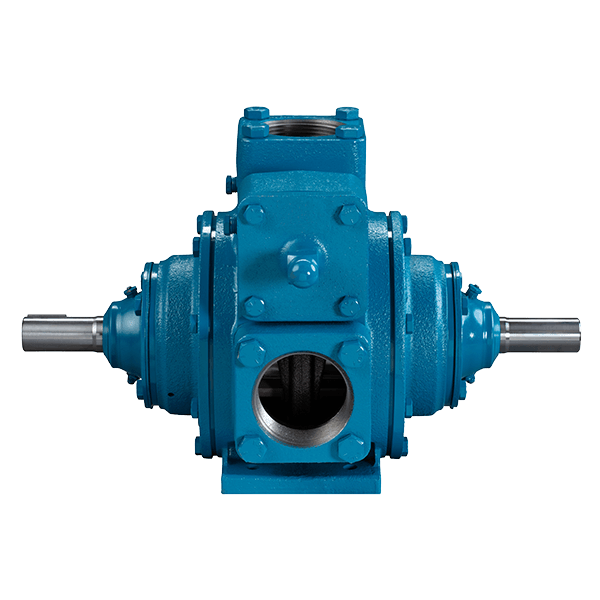

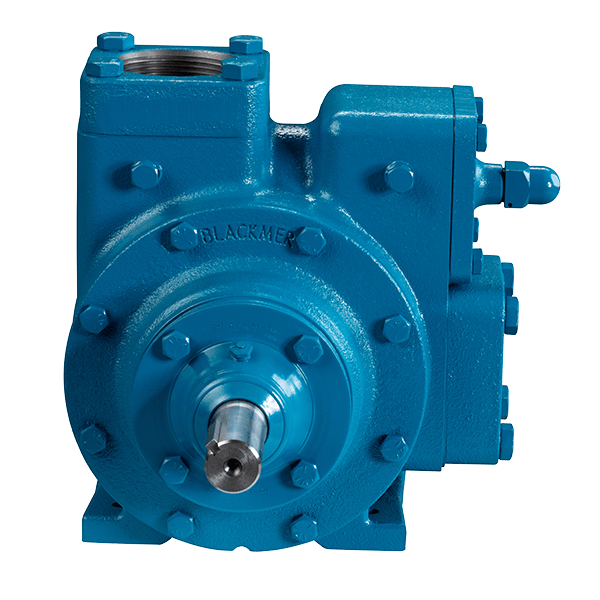

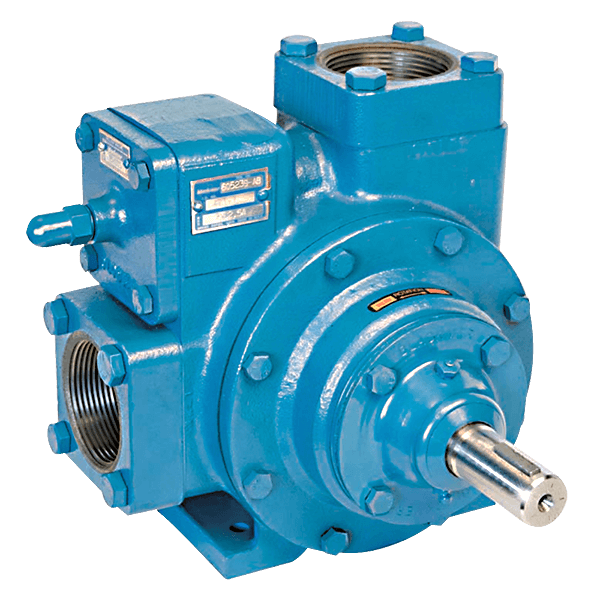

Blackmer TX TXD Series 600 Sliding Vane Pump

TXD Sliding Vane Pumps Pumps Utilized for Fast and Quiet Operation, Compatible with All Biodiesel and Ethanol Blends

Part of the Iron Line, Blackmer® TX/TXD/TXDI Series Sliding Vane Pumps are durable pumps utilized for fast and quiet operation. The sliding vane design provides sustained performance and trouble-free operation. These pumps are equipped with FKM O-rings and Blackmer mechanical seals that are compatible with all biodiesel and ethanol blends. TX/TXD/TXDI options include corrosion resistant relief valve, pneumatic relief valves and Buna or PTFE elastomers and seals.

Features
Specifications
Materials
Options
Maintenance
Testimonials
Downloads
Request a Quote

Features and Benefits

Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
Blackmer mechanical seal and ball-bearing construction provide maximum reliability
Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
Symmetrical bearing support assures even loading and wear for long life
Adjustable relief valve protects pump against excessive pressures
T-type strainers are available to protect pumping systems from damage caused by welding slag and foreign matter in pumps and tanks
High volumetric efficiency and symmetrical bearing support means less required horsepower than other PD pumps, meaning a cost savings on both motor operation and electricity
External ball-bearings are isolated from pumpage by mechanical seals to maximize bearing life and minimize contamination risk
Easy maintenance: vanes can be easily replaced -- without removing pump from truck
Advantages of sliding vane technology:
- Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
- Excellent self-priming and dry-run capabilities
- Sliding vane design provides sustained performance and trouble-free operation
- High suction lift and line-stripping capabilities
- Low maintenance and low life-cycle costs

Applications

Transport Delivery, Fleet Refueling, & Bulk Transfer:

Fuel oil
Jet fuel & aviation fuel
Gasoline
Ethanol & other alcohols
Lube oil
Solvents
Ester
Ketone
Naphtha
Ether
Amine
Aromatic
Terpene
Glycol
Additives

Chemical Compatibility Guide

Performance and Specifications

AVAILABLE MODELS

TX1.5
TXD(I)2
TXD(I)2.5
TXD(I)3
TX(I)4

NOMINAL FLOW RATE

TX1.5: 56 gpm (212 L/min)
TXD(I)2: 87 gpm (329 L/min)
TXD(I)2.5: 157 gpm (594 L/min)
TXD(I)3: 270 gpm (1,022 L/min)
TX(I)4: 505 gpm (1,911 L/min)

CATALOG OPTIONS

Connections: NPT, Weld, Victaulic
Elastomers: BUNA, FKM, PTFE
Valve: Corrosion resistant
Bypass: 1-stage or pneumatic 2-stage
Inlet Strainer, Hydraulic Motor Adapter

DIFFERENTIAL PRESSURE

125 psi (8.6 bar)

MAXIMUM WORKING PRESSURE (MAWP)

175 psi (15.5 bar)

VISCOSITY

1.0 - 4250 cP

VANE MATERIALS

Duravane
Bronze

PRIMARY MATERIALS OF CONSTRUCTION

TX & TXD: Cast Iron
TXI & TXDI: Ductile Iron

CONNECTION ORIENTATION

TX & TXD: Side Inlet | Top Outlet
TXI & TXDI: Side Inlet | Side Outlet

TEMPERATURE

-25°F to 240°F (-32°C to 115°C)

MIN/MAX SPEED (rpm)

TX1.5: 200 - 800
TXD(I)2 & TXD(I)2.5: 70 - 780
TXD(I)3: 70 - 640
TX(I)4: 70 - 520

AVAILABLE CERTIFICATES

Hydrostatic Test
Performance Test
NPSH Test
Material (actual or typical)
Dimensional (pump only or unit)

TXD Nominal Flow Range Rate

CLICK IMAGE TO ENLARGE

Dimensions

Pump Model		L	W	H	Approx. Wt.
TX1.5	in	12-7/8	10-4/7	8-1/2	61 lb
TX1.5	mm	327	287.3	215.9	27 kg
TX(D)2A, TXDI2	in	16-3/4	10	8-11/16	70 lb
TX(D)2A, TXDI2	mm	425.5	254	220.6	32 kg
TX(D)2.5A, TXDI2.5	in	18-1/4	10-3/4	9-5/8	94 lb
TX(D)2.5A, TXDI2.5	mm	463.6	273.1	244.5	43 kg
TX(D)3E, TXDI3	in	20 1/3	13 1/2	12 4/5	152 lb
TX(D)3E, TXDI3	mm	515.9	342.9	325.4	69 kg
TX4A, TXI4	in	19-1/4	16-1/2	15-1/2	295 lb
TX4A, TXI4	mm	489	419.1	393.7	134 kg

Materials of Construction

PRESSURE PARTS	Pump Model	Material
Cylinder	TX1.5–3	Cast Iron: ASTM A48
Cylinder	TX4 & TXDI2-4	Ductile Iron: ASTM 536
Heads	TX1.5–3	Cast Iron: ASTM A48
Heads	TX4 & TXDI2-4	Ductile Iron: ASTM 536
Relief Valve Cover	TX1.5–3	Cast Iron: ASTM A48
Relief Valve Cover	TX4 & TXDI2-4	Ductile Iron: ASTM 536

Options

Pump Options

Options
ORIENTATION OPTIONS	Double End: drive pump from either side Right Hand: INLET is to the right, when looking from driven side Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS	TX/TXD: Top Outlet: Outlet 90° offset from inlet TXI/TXDI: Side Outlet: Outlet 180° offset from inlet
CONNECTION OPTIONS	NPT (threaded) Welded, Victaulic
MOUNTING OPTIONS	Pump Only with Hydraulic Motor Adapter and/or Inlet Strainer
SEALING OPTIONS	Blackmer single mechanical seal

Vane Options

Materials	Temperature Limits	Viscosity
Duravane	-25°F to 240°F (-32°C to 115°C)	0.2 - 4250 cP

Elastomer Options

Materials	Temperature Limits
FKM	-15°F to 240°F (-26°C to 115°C)
Buna-N	-25°F to 240°F (-32°C to 115°C)
PTFE - SS Spring	0°F to 240°F (-18°C to 115°C)

Maintenance Kits

Model(s)	Description	Part Number
TX1.5	Kit - Maintenance, Buna-N	898949
TX1.5	Kit - Maintenance, FKM	899179
TXD2A, TX2A, TXD2A-AVA	Kit - Maintenance, Buna-N	898950
TXD2A	Kit - Maintenance	898956
TXD2.5A, TX2.5A, TXD2.5A-AVA	Kit - Maintenance, Buna-N	898951
TXD2.5A	Kit - Maintenance	898957
TXD3E, TX3E	Kit - Maintenance, Buna-N	898952
TXD3E	Kit - Maintenance	898958
TX4A	Kit - Maintenance, Buna-N	898953
TX4A	Kit - Maintenance	898959
