Blackmer AT414B Sliding Vane Hand Pump Blackmer AT210A Sliding Vane Hand Pump Blackmer AT807-828B Sliding Vane Hand Pump

Sliding Vane Hand Pumps

Blackmer® sliding vane hand pumps provide a safe, convenient method of dispensing or transferring non-corrosive liquids from drums, barrels, tanks or vats. They are designed for easy, efficient operation in handling liquids in industrial, construction and agricultural applications.

Operating on the same principle as Blackmer sliding vane power pumps, these positive displacement, self-priming, sliding vane pumps provide steady, non-pulsating flow at easy turning speeds. The sliding vanes self-compensate for wear to maintain high-suction lift and are easily replaced at low cost after years of service.

Features and Benefits

  • Capacity range of 10 gpm (38 L/min)
  • Fluid viscosities up to 2,000 ssu (420 Cs)
  • Liquid temperatures to 300°F (149°C)
  • FM approved models meet OSHA safety guidelines and regulations for handling Class I and Class II flammable and combustible liquids
  • Full complement of accessories permits the standard models to be modified for special requirements
  • Manufactured in conformance with ISO 9001 certification
  • Each pump is performance tested at the factory to ensure the highest quality standards

Sliding Vane Hand Pump Models

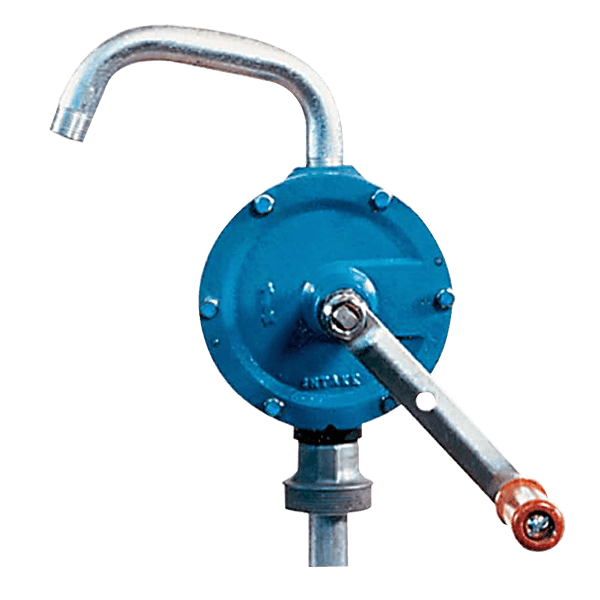

210A

The rugged 210A has earned a worldwide reputation for durability and longevity. Typical applications include dispensing of light to medium weight cutting oils, solvents and fuels. Available in PA, AT and BR mounting styles.

F210A

FM approved for handling Class I and Class II flammable and combustible liquids. Available in PA, AT and BR mounting styles.

BRF210A

A transfer model of the F210A, the BRF210A sliding vane hand pump is equipped with a 3/4" X 8' anti-static hose, spout, non-sparking aluminum nozzle, telescoping suction pipe with strainer basket, and flame arresting baffle and vacuum breaker. BRF (FM approved) mounting style that meets OSHA safety guidelines and regulations for handling Class I and Class II flammable and combustible liquids.

DPF210A

A dispensing model of the F210A, the DPF210A is equipped with a spout, drip pan, bung adapter, telescoping suction pipe with strainer basket, and flame arresting screen and baffle. DPF (FM approved) mounting style that meets OSHA safety guidelines and regulations for handling Class I and Class II flammable and combustible liquids.
