Quattroflow 5k Max. Flow Rate 6,000 lph

Increased max. flow rate of 6,000 lph with most drives
Clean-In-Place/Steaming-In-Place (CIP/SIP) and autoclavability
Self-draining design to minimize non-recoverable product
Enhanced venting to reduce the minimum flow rate required to remove entrapped air during priming
Patented valve plate design to achieve self-draining and venting
Up to 120:1 turndown ratio
Improved linear flow performance
High flow stability across entire flow range

Technical Data

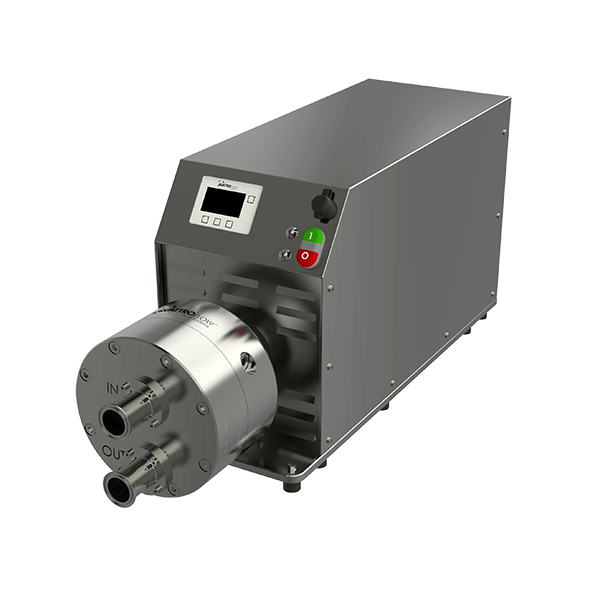

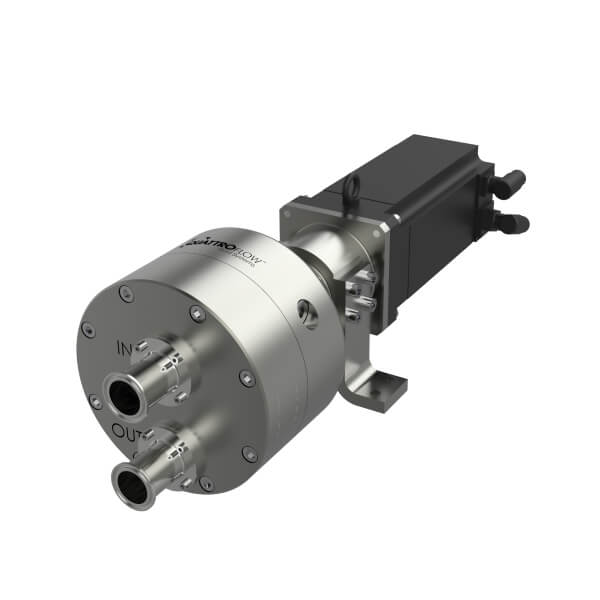

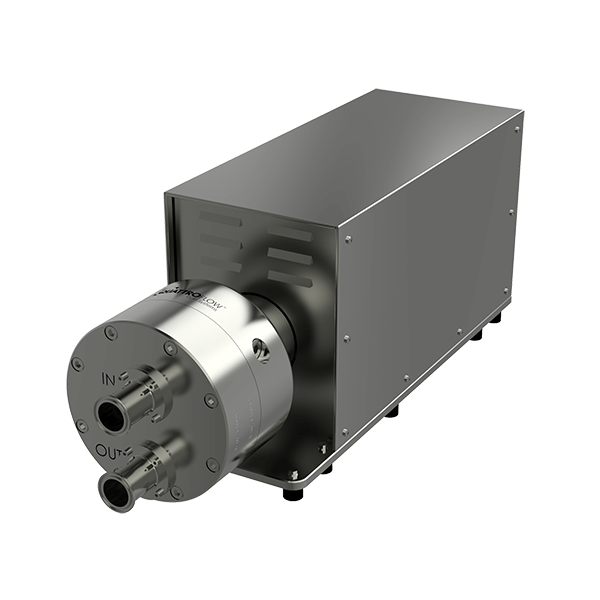

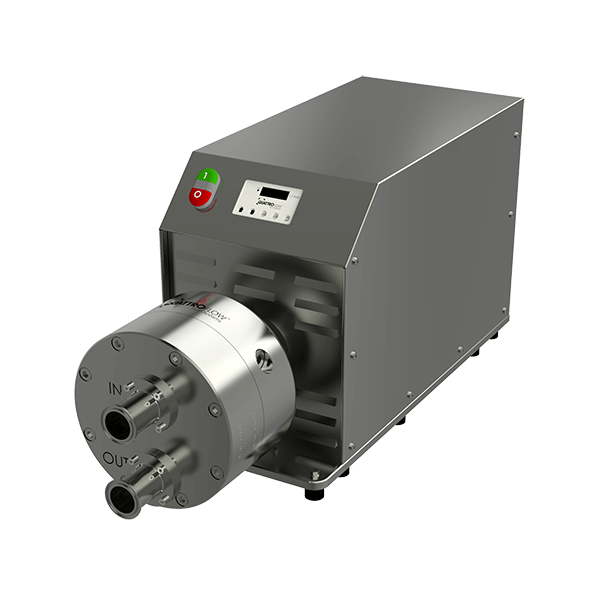

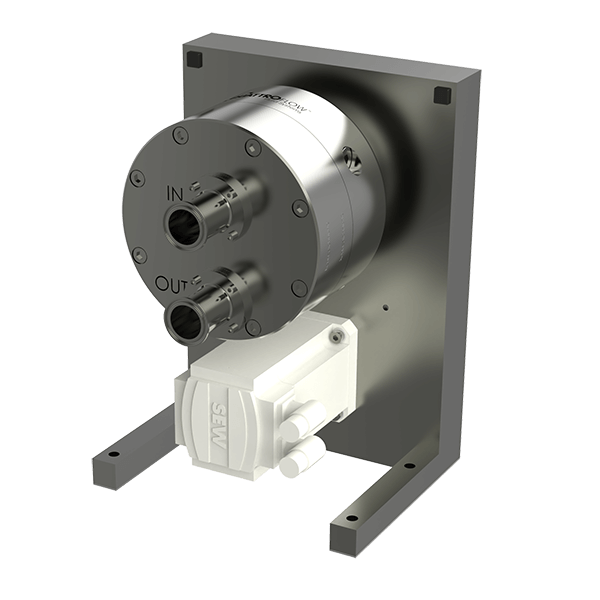

Description			Unit	QF5k-MU	QF5kHT-MU	QF5kQCON-MU	QF5kCD-MU	QF5K-MU OEM

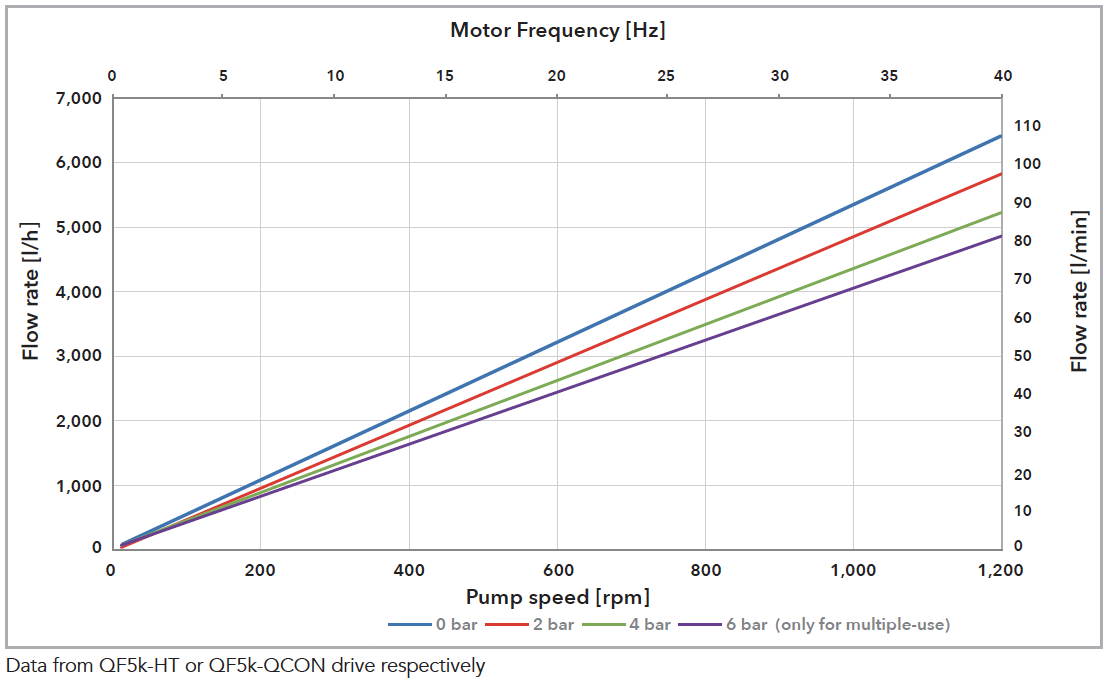

Flow Rate	Eccentric Shaft 5°	Min.	lph	200	50
Flow Rate	Eccentric Shaft 5°	Max.	lph	6,000			5,000
Pumping Pressure	Media Temperature <40°C	Max.	bar	6
Pumping Pressure	Media Temperature <40°C	Continuous	bar	4
Pumping Pressure	Media Temperature >40°C	Max.	bar	4
Pumping Pressure	Media Temperature >40°C	Continuous	bar	4
Pumping Pressure	Neg. Inlet Pressure	Continuous	bar	-0.2				---
Temperature		Min.	°C (°F)	4 (39)				---
Temperature		Max.	°C (°F)	80 (176)
Pump Speed		Min.	rpm	30	13
Pump Speed		Max.	rpm	1,200			1,050
Displacement Volume	Eccentric Shaft 5°		ml/rev	91
Connection Specification	Size		Inch	1.5" (TriClamp)
Dimensions	Pump Unit	Length	mm	872	851	950	261	694
Dimensions	Pump Unit	Width	mm	257	281	281	320	225
Dimensions	Pump Unit	Height	mm	333	385	405	410	233
Pump Weight with Motor and Housing	Pump Unit		kg	95	110	115	70	66.4
IP-Protection Class (Total Pump)	Pump Unit		---	55	54	55	54	---
Filling Volume	Without Connection		ml	788
Surface	Product Wetted		cm²	1,586				---
Media	Temperature	Max.	°C (°F)	90 (194)
Sterilization	Autoclave	Max.	°C (°F)	130 (266)
Sterilization	Gamma Irradiation	Max.	kGy	n/a				---
Material	Product Wetted	Pump Housing	---	SS316L
Material	Product Wetted	Valve Plate	---	SS316L
Material	Product Wetted	Diaphragm	---	TPE
Material	Product Wetted	Valves	---	EPDM
Material	Product Wetted	O-rings	---	EPDM
