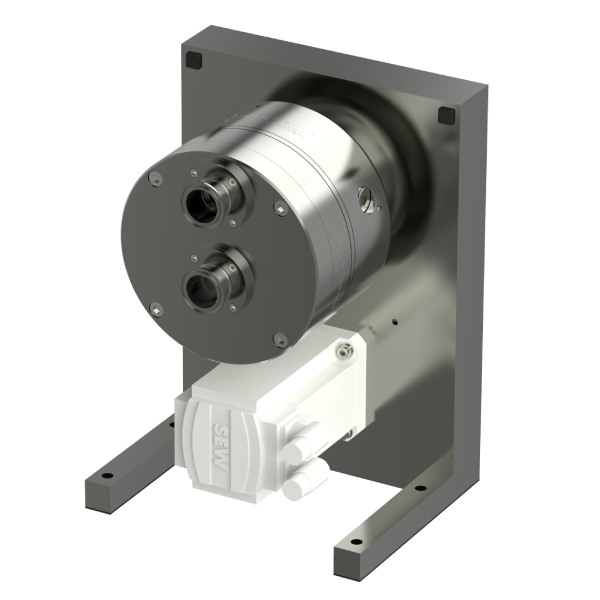

| QF5050S Servo Motor |
| Flow Rate Maximum |
Eccentric Shaft 6° |
5000 lph (83 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 6° |
50 lph (0.83.lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
80°C (176°F) |
| CIP |
90°C (194°F) |
| SIP |
130°C (266°F)* |
| Autoclave |
130°C (266°F)* |
| Suction Lift Dry at 1200 rpm |
Eccentric Shaft 6° |
4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications |
Approximated Volume per
Revolution at Free Output |
95 ml |
| Filling Volume Without Connectors |
820 ml |
| Connection Specification (Standard) |
Connectors |
1.5" TC |
| Position of Connectors |
Front |
| Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
| Valve Plate |
SS316L or PP |
| Diaphragms |
TPE |
| Valves |
EPDM/SS316L |
| O-rings |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe |
| Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
| Motor (Standard) |
Rated speed |
3000 min -1(2.661 reduction) |
| Voltage |
400 V |
| Power |
3 kW |
| Pump Dimension with Motor and Housing |
Length |
440 mm (17.32") |
| Width |
325 mm (12.80") |
| Height |
320 mm (12.60") |
| Pump Weight with Motor and Housing |
|
66 kg (146 lb) |
Other connection specifications, materials and motors available on request.
* With SS316L valve plate only
