| Standard Motor |

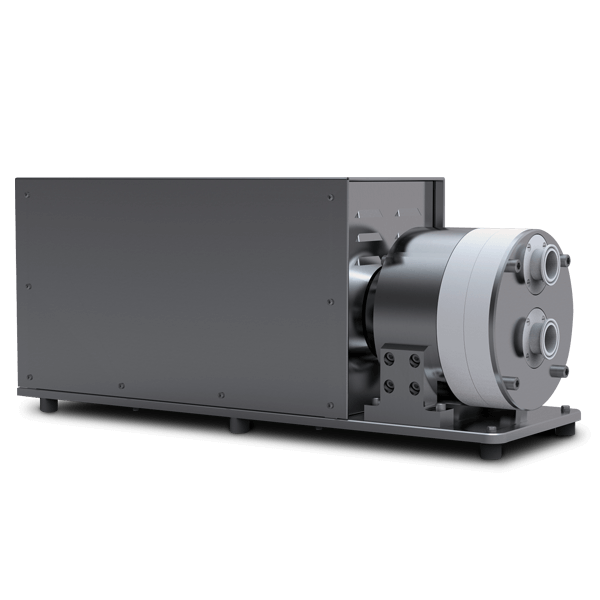

QF4400SU |

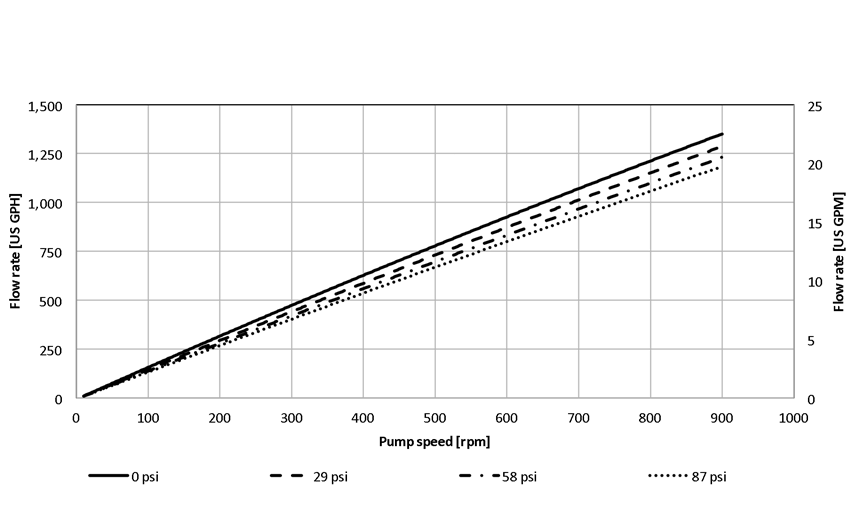

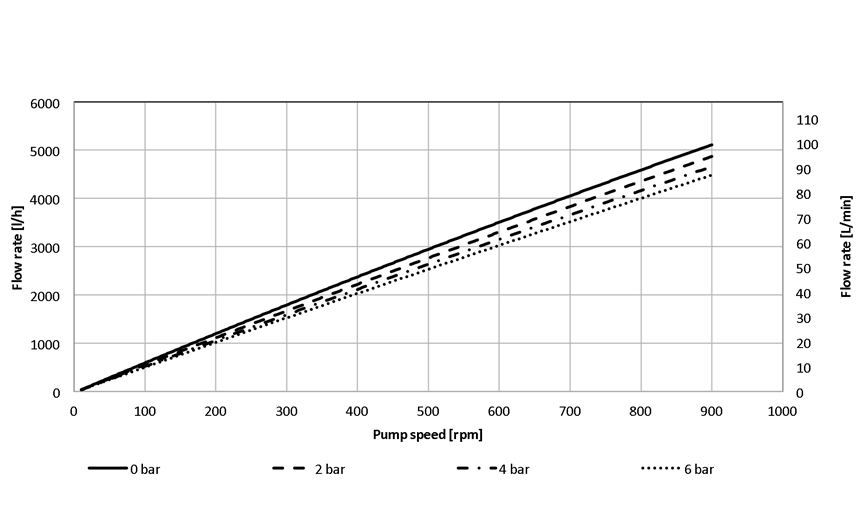

QF4400SU-HT |

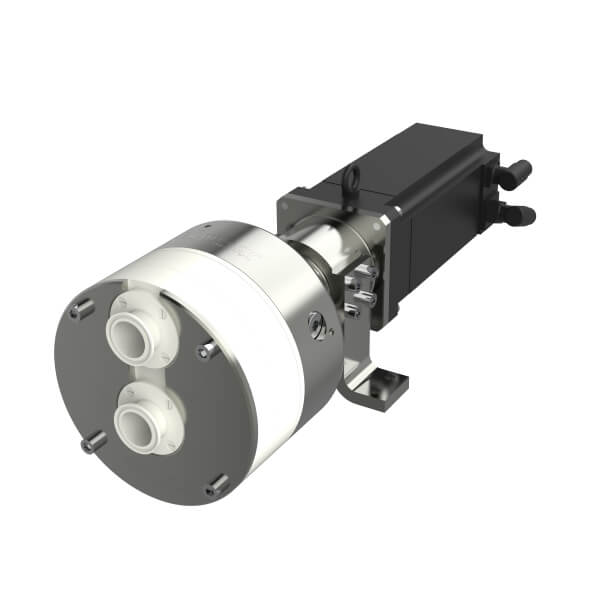

QF4400SU OEM |

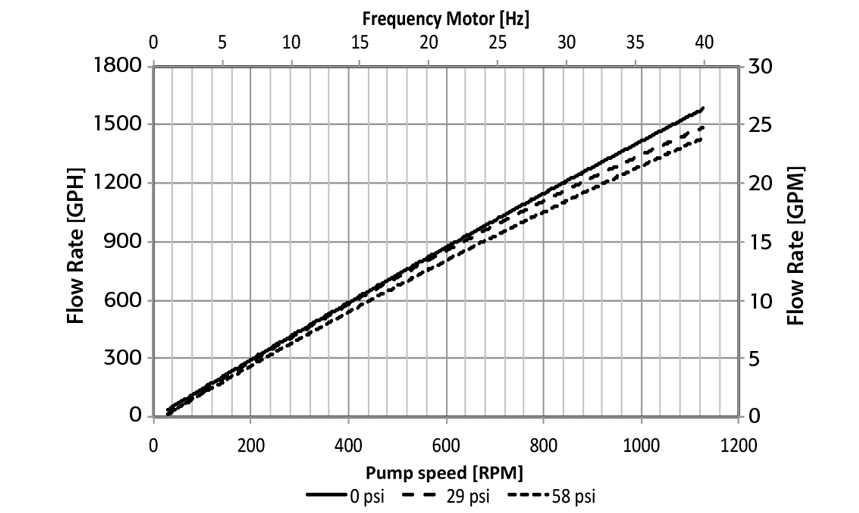

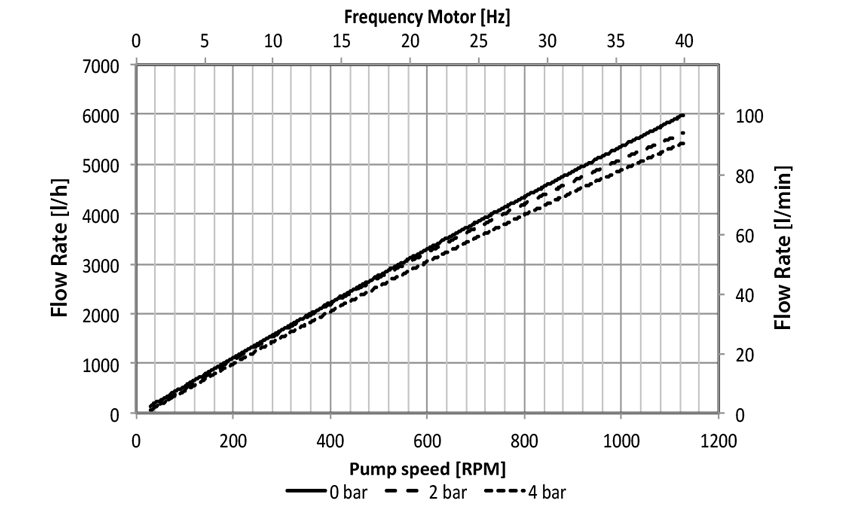

| Flow Rate Maximum |
Eccentric Shaft 6° |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 6° |
150 lph (2.5 lpm) |
50 lph (0.83 lpm) |
50 lph (0.83 lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
60°C (140°F) |
60°C (140°F) |
60°C (140°F) |
| Autoclave |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
| Suction Lift Dry at 1800 rpm |
Eccentric Shaft 6° |
4 – 4.5 m (13.1-14.7 ft) |
4 – 4.5 m (13.1-14.7 ft) |
4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications |
Approximated Volume per
Revolution at Free Output |
95 ml |
95 ml |
95 ml |
| Filling Volume Without Connectors |
820 ml |
820 ml |
820 ml |
| Connection Specification (Standard) |
Connectors |
1.5" TC |
1.5" TC |
1.5" TC |
| Position of Connectors |
Front |
Front |
Front |
| Product Wetted Materials (Standard) |
Pump Chamber |
PP |
PP |
PP |
| Valve Plate |
PP |
PP |
PP |
| Diaphragms |
TPE |
TPE |
TPE |
| Valves |
EPDM / SS316L |
EPDM / SS316L |
EPDM |
| O-rings |
EPDM |
EPDM |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661 |
| Motor |
Rated speed |
1455 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
| Voltage |
230/400 V |
400 V |
3 x 230V / 3 x 400V |
| Power |
2.2 kW |
4.0 kW |
- |
| Pump Dimension with Motor and Housing |
Length |
852 mm (33.54") |
790 mm (31.10") |
670 mm (26.38") |
| Width |
250 mm (9.84") |
275 mm (10.83") |
225 mm (8.86") |
| Height |
333 mm (13.11") |
393 mm (15.47") |
233 mm (9.17") |
| Pump Weight with Motor and Housing |
|
105 kg (232 lb) |
75 kg (165 lb) |
50.4 kg (111 lb) |
Other connection specifications, materials and motors available on request.
