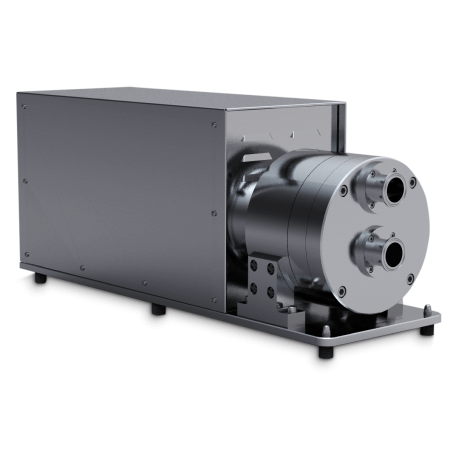

QF4400S Standard Motor |

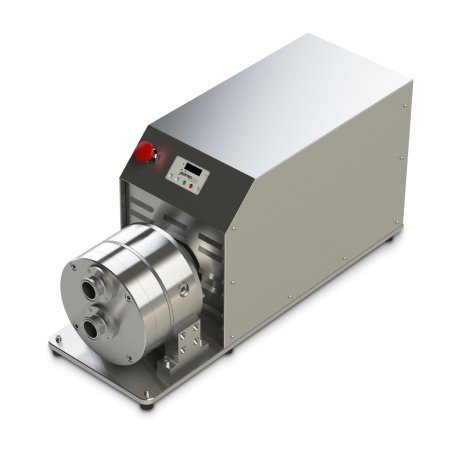

HT Standard Motor |

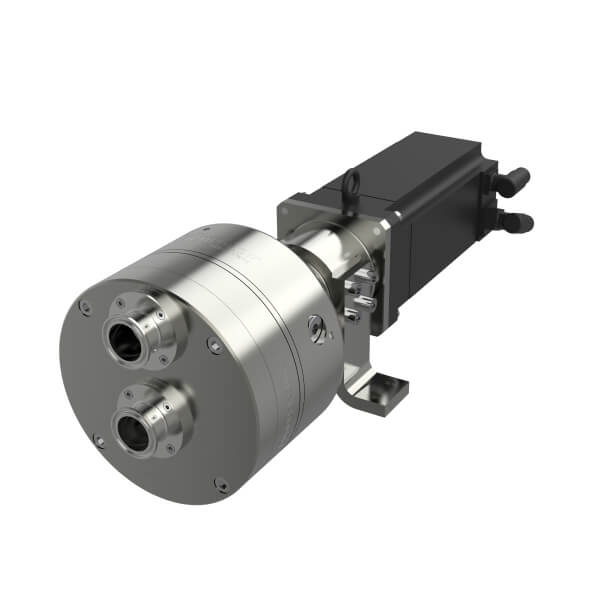

QF4400MU OEM |
| Flow Rate Maximum |
Eccentric Shaft 6° |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 6° |
150 lph (2.5 lpm) |
50 lph (0.83 lpm) |
50 lph (0.83 lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
| CIP |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
| SIP |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
| Autoclave |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
| Suction Lift Dry at 1200 rpm |
Eccentric Shaft 6° |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
| Volume Specifications |
Approximated Volume per Revolution at Free Output |
95 ml |
95 ml |
95 ml |
| Filling Volume Without Connectors |
820 ml |
820 ml |
820 ml |
| Connection Specification (Standard) |
Connectors |
1.5" TC |
1.5" TC |
1.5" TC |
| Position of Connectors |
Front |
Front |
Front |
| Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
SS316L |
SS316L |
| Valve Plate |
SS316L or PP |
SS316L |
SS316L |
| Diaphragms |
TPE |
TPE |
TPE |
| Valves |
EPDM/SS316L |
EPDM/SS316L |
EPDM/SS316L |
| O-rings |
EPDM |
EPDM |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
| Motor (Standard) |
Rated speed |
1455 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
| Voltage |
230 V/400 V |
400 V* |
3 x 230V / 3 x 400V |
| Power |
2.2 kW |
4.0 kW |
— |
| Pump Dimension with Motor and Housing |
Length |
852 mm (33.54") |
790 mm (31.10") |
670 mm (26.38") |
| Width |
250 mm (9.84") |
275 mm (10.83") |
225 mm (8.86") |
| Height |
333 mm (13.11") |
393 mm (15.47") |
233 mm (9.17") |
| Pump Weight with Motor and Housing |
|
120 kg (265 lb) |
90 kg (198 lb) |
66.9 kg (147.5 lb) |
Other connection specifications, materials and motors available on request.
*3 x 230 V as option
