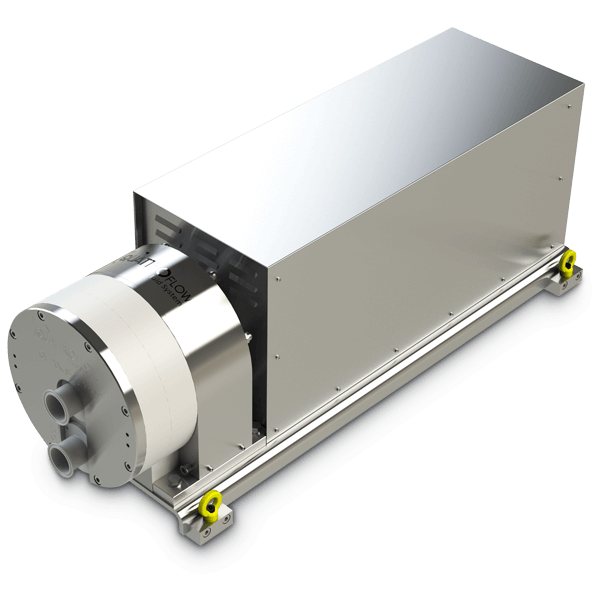

| QF20kSU Standard Motor |

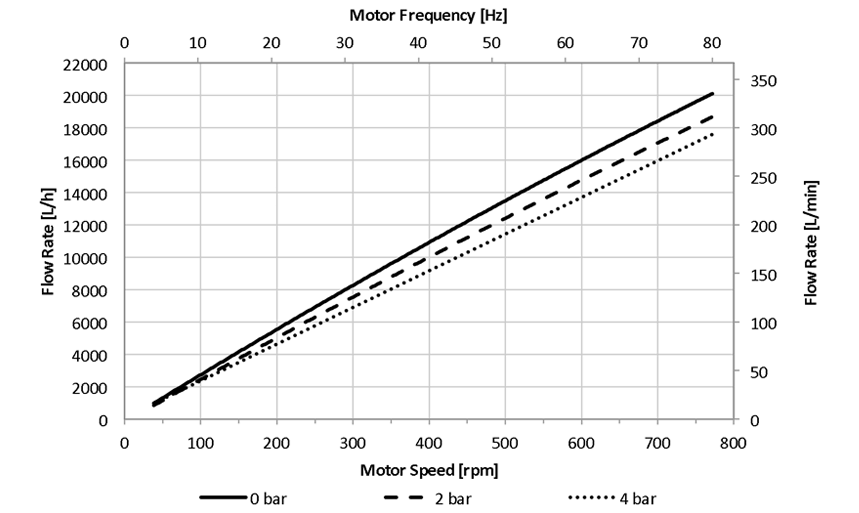

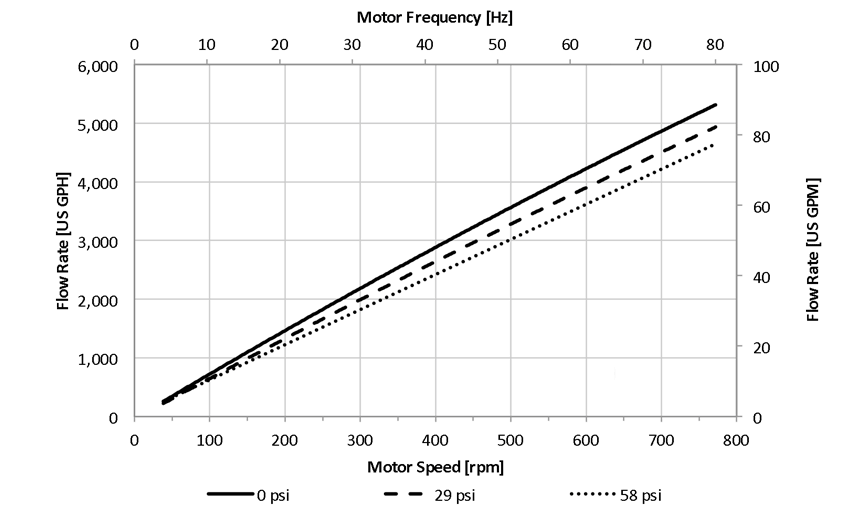

| Flow Rate Maximum |
Eccentric Shaft 7° |
16000 lph (267 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 7° |
1000 lph (16.7 lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
60°C (140°F) |
| Suction Lift Dry 330 rpm |
Eccentric Shaft 7° |
4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications |
Approximated Volume per
Revolution at Free Output |
470 ml |
| Filling Volume Without Connectors |
2950 ml |
| Connection Specification (Standard) |
Connectors |
2" TC |
| Position of Connectors |
Front |
| Product Wetted Materials (Standard) |
Pump Chamber |
PP |
| Valve Plate |
PP |
| Diaphragms |
TPE |
| Valves |
EPDM/SS316L |
| O-rings |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe;
USP 87/381/661 |
| Motor |
Rated speed |
1460/474 min-1 (50 Hz) |
| Voltage |
230/400 V |
| Power |
4 kW |
| Pump Dimension with Motor and Housing |
Length |
1152.5 mm (45.37") |
| Width |
400 mm (15.75") |
| Height |
416 mm (16.38") |
| Pump Weight with Motor and Housing |
|
190 kg (419 lb) |
Other connection specifications, materials and motors available on request.
