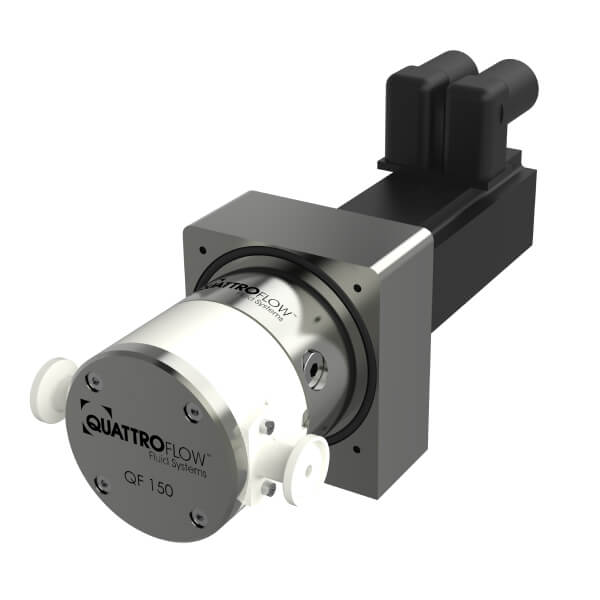

QF150SU-HT* |
QF150SU OEM |
| Flow Rate Maximum |
Eccentric Shaft 5° |
180 lph (3 lpm) |
180 lph (3 lpm) |
| Flow Rate Minimum |
Eccentric Shaft 5° |
1 lph (0.017 lpm) |
1 lph (0.017 lpm) |
| Pressure |
Temperature of Fluid < 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
| Maximum Temperature |
Fluid |
60°C (140°F) |
60°C (140°F) |
| Autoclave* |
130°C (266°F) |
130°C (266°F) |
| Suction Lift Dry at 3000 rpm |
Eccentric Shaft 5° |
2 – 3 m (6.6 – 9.8 ft) |
2 – 3 m (6.6 – 9.8 ft) |
| Volume Specifications |
Approximated Volume per
Revolution at Free Output |
1.2 ml |
1.2 ml |
| Filling Volume Without Connectors |
15 ml |
15 ml |
| Connection Specification (Standard) |
Connectors |
1/4" TC |
1/4" TC |
| Position of Connectors |
Inline |
Inline |
| Number of Flow Directions |
4 |
4 |
| Product Wetted Materials (Standard) |
Pump Chamber |
PP |
PP |
| Valve Plate |
PP |
PP |
| Diaphragms |
TPE |
TPE |
| Valves |
EPDM |
EPDM |
| O-rings |
EPDM |
EPDM |
| Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661 |
| Motor (Standard) |
Rated speed |
3500 min-1 |
3000 min-1 |
| Voltage |
100-264 VAC |
3 x 230V / 3 x 400V |
| Power |
250 W |
— |
| Pump Dimension with Motor and Housing |
Length* |
333 mm (13.11") |
270 mm (10.63") |
| Width* |
200 mm (7.87") |
114 mm (4.49") |
| Height* |
217 mm (8.54") |
130 mm (5.12") |
| Pump Weight with Motor and Housing |
|
9.4 kg (20.9 lb) |
5.2 kg (11.5 lb) |
Other connection specifications, materials and motors available on request.
*Dimensions of the new QF30SU-HT pump. Old QF30SU pumps will be sold according to availability with smaller dimensions.
