Quattroflow Biopharma Pump QF1200SU Single-Use

Quattroflow Biopharma Pump QF1200SU-M Single-Use

Quattroflow Biopharma Pump QF1200SU-HT Single-Use

Quattroflow 1200SU Max. Flow Rate 1200 lph

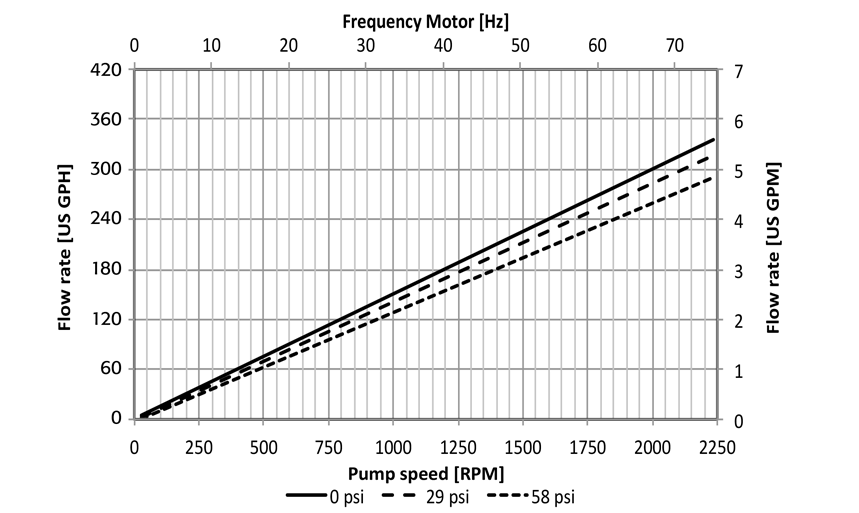

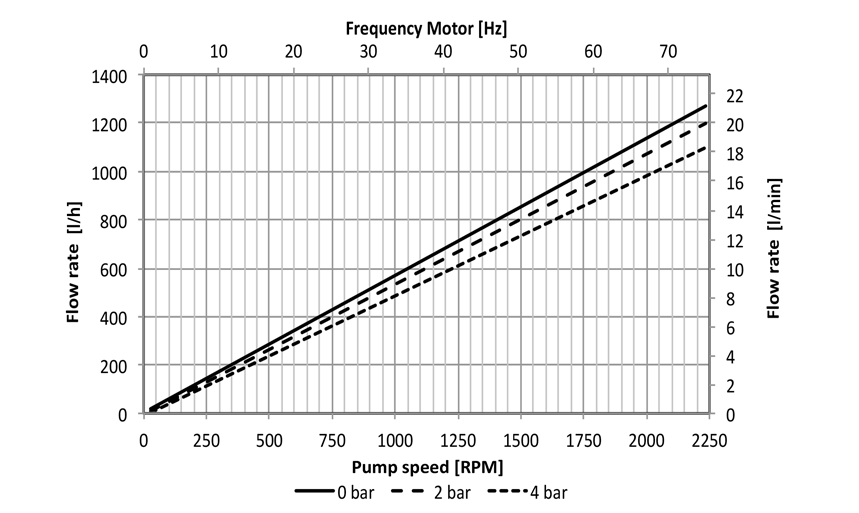

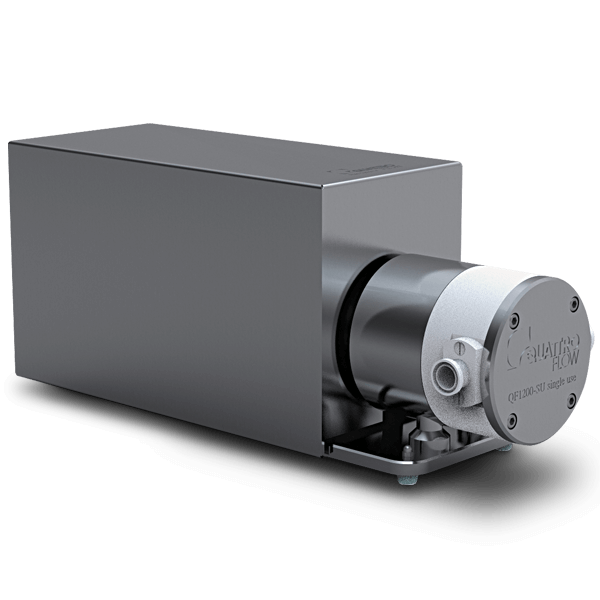

QF1200SU

Disposable wetted pump chamber
Pump chamber made of solid polypropylene
AC motor for operation for external VFD

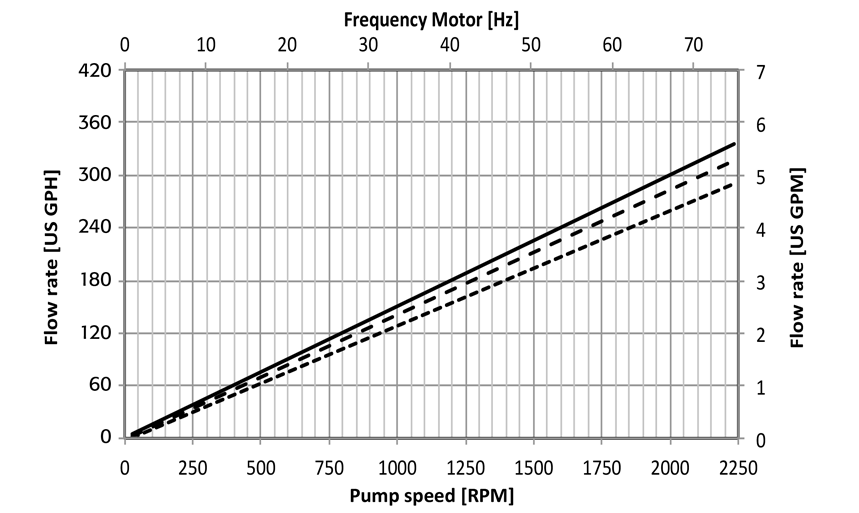

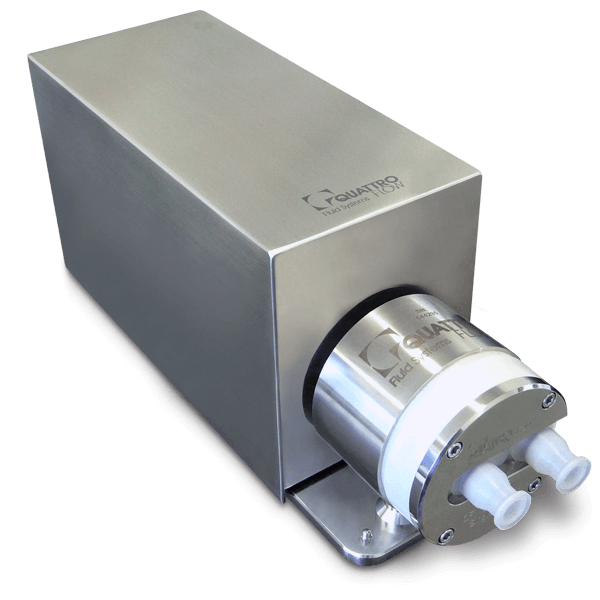

QF1200SU-M

Pump chamber made of injection-molded polyethylene
Front side connections

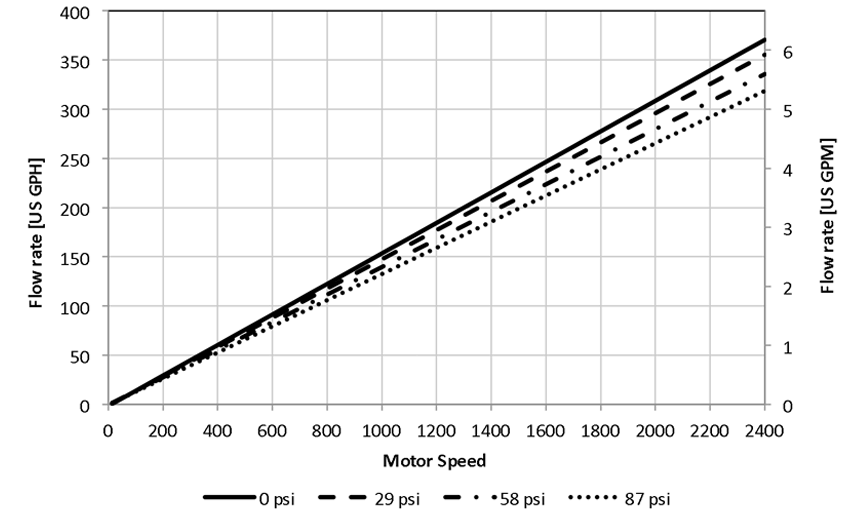

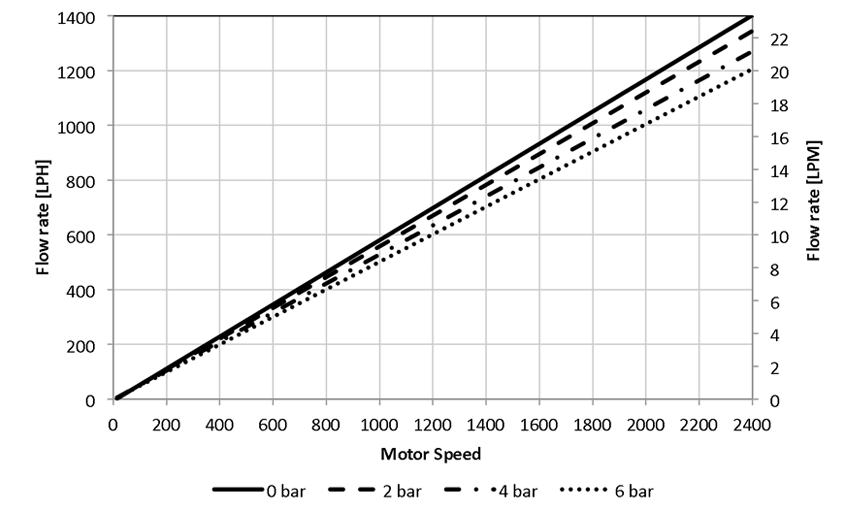

QF1200SU-HT

Integrated pump chamber, pump drive, motor and control box
Extended turndown ratio
Flexible single-phase 110-23V power supply

QF1200SU OEM

OEM design for easy skid integration
Extended turndown ratio
Global power supply and motor certification
Multiple accessories (VFD, Cable, Gasket) available
Flange adapters for additional motor types available

Technical Data
Performance
Downloads

Technical Data

Standard Motor		QF1200SU	QF1200SU-M	QF1200SU-HT	QF1200SU OEM
Flow Rate Maximum	Eccentric Shaft 3°	800 lph (13.3 lpm)	800 lph (13.3 lpm)	800 lph (13.3 lpm)	800 lph (13.3 lpm)
Flow Rate Maximum	Eccentric Shaft 5°	1200 lph (20 lpm)	1200 lph (20 lpm)	1200 lph (20 lpm)	1200 lph (20 lpm)
Flow Rate Minimum*	Eccentric Shaft 3°	10 lph (0.167 lpm)	10 lph (0.167 lpm)	10 lph (0.167 lpm)	10 lph (0.167 lpm)
Flow Rate Minimum*	Eccentric Shaft 5°	20 lph (0.333 lpm)	20 lph (0.333 lpm)	6 lph (0.1 lpm)	6 lph (0.1 lpm)
Pressure	Temperature of Fluid < 40°C (104°F)	4 bar (58 psi)	4 bar (58 psi)	4 bar (58 psi)	4 bar (58 psi)
Pressure	Temperature of Fluid > 40°C (104°F)	4 bar (58 psi)	4 bar (58 psi)	4 bar (58 psi)	4 bar (58 psi)
Maximum Temperature	Fluid	60°C (140°F)	50°C (122°F)	60°C (140°F)	60°C (140°F)
Maximum Temperature	Autoclave	130°C (266°F)	130°C (266°F)	130°C (266°F)	130°C (266°F)
Pump Speed Range	rpm	30 – 2,400	30 – 2,400	10 – 2,400	10 – 2,400
Suction Lift Dry at 1800 rpm	Eccentric Shaft 3°	2.5 – 3 m (8.2-9.8 ft)	2-2.5 m (6.6-8.2 ft)	-	-
Suction Lift Dry at 1800 rpm	Eccentric Shaft 5°	4 – 4.5 m (13.1-14.7 ft)	3-3.5 m (9.8-11.5 ft)	4 – 4.5 m(13.1-14.7 ft)	4 - 4.5 m (13.1 - 14.7 ft)
Volume Specifications	Approximated Volume per Revolution at Free Output	9.6 ml (5°)5.8 ml (3°)	9.6 ml (5°)5.8 ml (3°)	9.6 ml (5°)	9.6 ml
Volume Specifications	Filling Volume Without Connectors	75 ml	75 ml	75 ml	75 ml
Connection Specification (Standard)	Connectors	3/4" TC	3/4" TC	3/4" TC	3/4" TC
	Position of Connectors	Inline	Front	Inline	Inline
	Number of Flow Directions	4	4	4	4
Product Wetted Materials (Standard)	Pump Chamber	PP	PE injection molded**	PP	PP
	Valve Plate	PP	PE injection molded	PP	PP
	Diaphragms	TPE	TPE	TPE	TPE
	Valves	EPDM	EPDM	EPDM	EPDM
	O-rings	EPDM	EPDM	EPDM	EPDM
Certificates/Proofs (Optional)	Elastomere (product wetted)	USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661	USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661	USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661	USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661
Motor (Standard)	Rated speed	1375 min-1 (50 Hz)	1375 min-1 (50 Hz)	2200 min-1	2400 min-1
	Voltage	230/400 V	230/400 V	110 – 230 V	3 x 230V / 3 x 400V
	Power	0.37 kW	0.37 kW	0.485 kW	-
Pump Dimension with Motor and Housing	Length	497 mm (19.56")	503 mm (19.8")	499 mm (19.65")	387 mm (15.24")
	Width	159 mm (6.26")	159 mm (6.26")	200 mm (7.87")	159 mm (6.26")
	Height	210 mm (8.27")	210 mm (8.27")	220 mm (8.66")	163 mm (6.42")
Pump Weight with Motor and Housing		21 kg (46 lb)	20 kg (44 lb)	21 kg (46 lb)	13.6 kg (30 lb)

Other connection specifications, materials and motors available on request.
* When using pump with control box 20 lph (0.333 lpm) and 40 lph (0.667 lpm)
** Connectors PP
