Almatec CHEMICOR Series Stainless-Steel AODD Pumps

When developing Almatec® CHEMICOR Series Stainless-Steel Air-Operated Double-Diaphragm (AODD) Pumps, special attention was paid to the shape of the product chambers. The result is a pump design that offers soft changes in direction, smooth flows and no dead corners. The pump image shows a model with optional draining system.

CHEMICOR Series pumps are manufactured from stainless steel 1.4408/SS316 (G-X 6 CrNiMo 18 10), which is a cast steel that is resistant to corrosion and acids, and is frequently used for fittings and pump casings because of its good general chemical stability. This material in a precision lost-wax casting is used for the wetted housing parts of the CHEMICOR Series. The lost-wax process is a complex casting process yielding a smooth and dense surface with increased resistance to corrosion.

Features at a Glance

  • Three sizes: AD 20, AD 32, AD 50
  • Max. capacities 4.5 / 9 / 24 m3 /h (19 / 38 /105 gpm)
  • Wetted housing parts made of stainless-steel precision casting 1.4408
  • Special shape of the product chambers
  • Pump casing with only two joint faces
  • Freely turnable suction and discharge ports
  • No drives, rotating parts or shaft seals
  • Ball valves for liquids containing solids
  • Maintenance-free PERSWING P® air control system without dead center
  • Composite diaphragms with integrated metal core and no diaphragm discs
  • Self-priming and dry running
  • Gentle displacement
  • Can be infinitely controlled via the air volume
  • Unattended operation with long service life
  • Compact design
  • Easy to startup
  • Integrated muffler
  • Models available with FDA, USP Class VI, EC1935/2004, ATEX approval
  • Optional equipment available

Materials

Part Materials
Wetted Side Housings 1.4408 (SS316)
Non-Wetted Center Block PA, PE Conductive (ATEX)
Diaphragms EPDM, PTFE/EPDM, PTFE modified/EPDM, NBR, ATEX variations
Ball Valves EPDM, PTFE, NBR

Technical Data

Pump Size AD 20 AD 32 AD50
Dimensions Length, mm (inch) 154 (6.1) 203 (8.0) 278 (10.9)
Width, mm (inch) 150 (5.9) 200 (7.9) 270 (10.6)
Height, mm (inch) 241 (9.5) 325 (12.8) 450 (17.7)
Nominal port size BSP 3/4" 1 1/4" 2"
Air connection BSP 1/4" 1/4" 1/2"
Weight kg (lbs) 6 (13) 13 (29) 29 (64)
Max. particle size of solids mm (inch) 9 (0.35) 12 (0.47) 14 (0.55)
Suction lift, dry:
– EPDM ball valves
– PTFE ball valves

mWC (ftWC)

2 (6.6)
1 (3.3)

2 (6.6)
1.5 (4.9)

3 9.8)
2 (6.6)
Suction lift, wet mWC (ftWC) 9 (29.5) 9 (29.5) 9 (29.5)
Max. operating temperature
(with center block of PE conductive)
°C (°F)
130°(266°)
80° (176°)
130°(266°)
80° (176°)
130°(266°)
80° (176°)
Max. driving and operating pressure bar (psig) 7 (100) 7 (100) 7 (100)
Max. Capacities m³/h 4.5 9 24
l/min 75 150 400
gpm 20 40 106

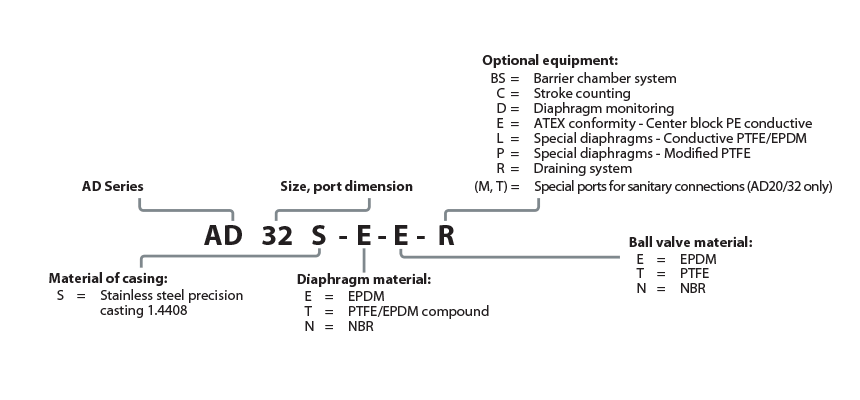

Code System

Almatec Pump Chemicor performance chart

Performance

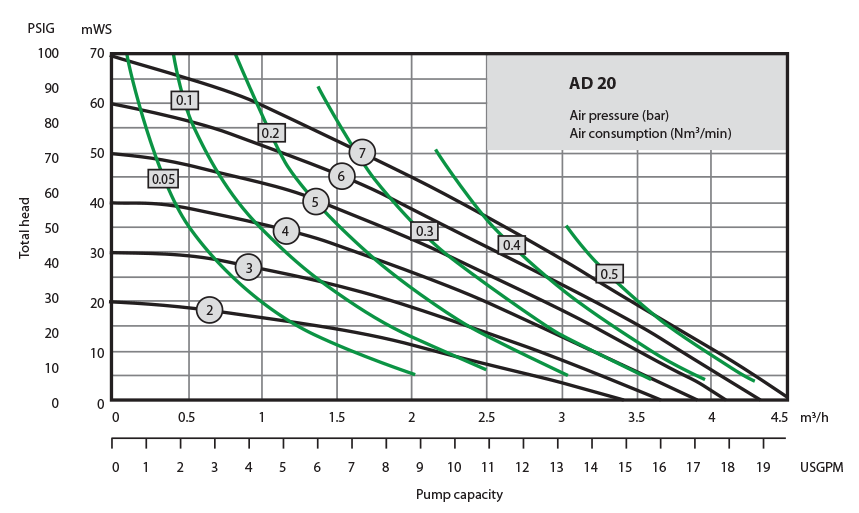

Almatec Pump AD20 performance chart

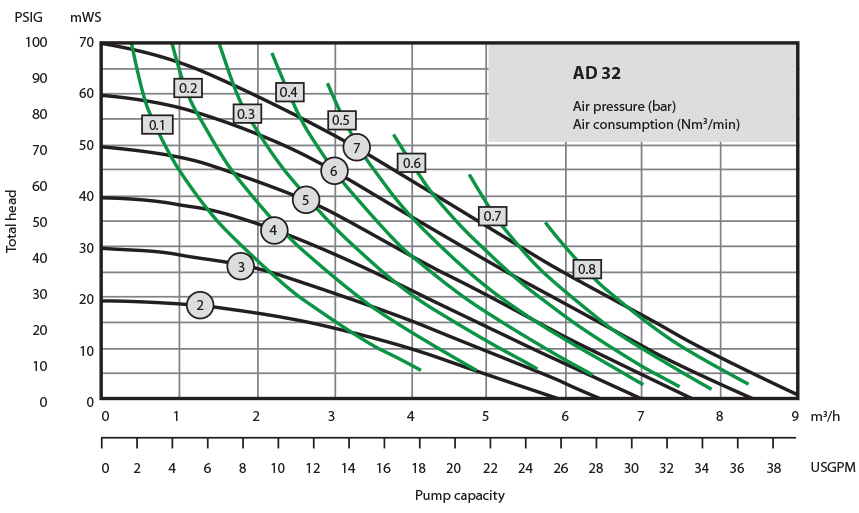

Almatec Pump AD32 performance chart

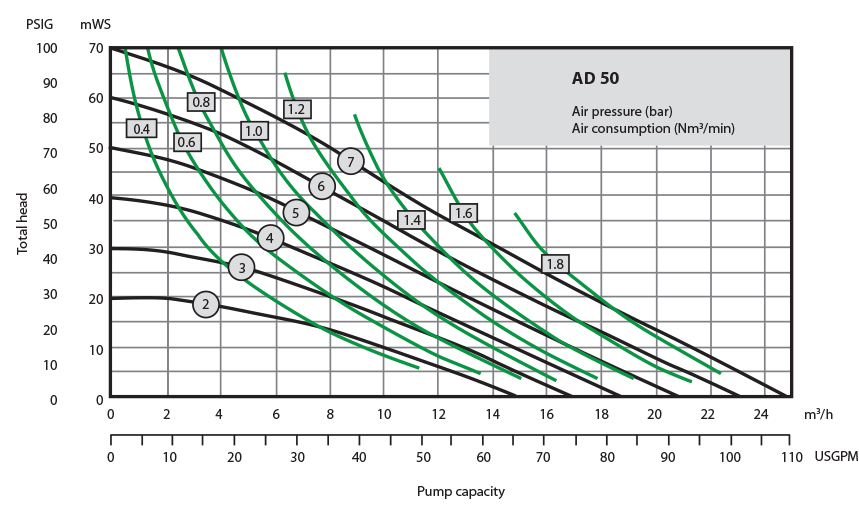

Almatec Pump AD50 performance chart

Downloads



Didn't find what you are looking for? Feel free to contact us, we look forward to hearing from you!
