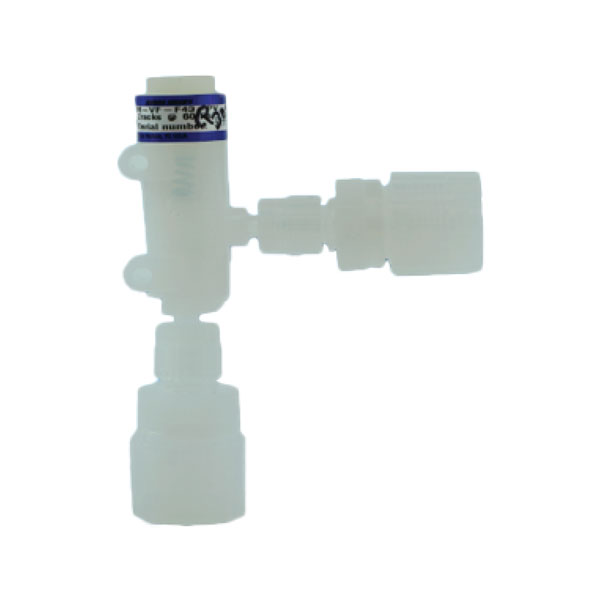

M-VF-F SERIES PFA PRESSURE RELIEF VALVES PFA High Purity Pressure Relief Valve

With an all-PFA molded body, the M-VF-F Series Pressure Relief Valve is suitable for installation on pressurized systems involving semiconductors, ultra-pure water and strong chemicals. Featuring 1/4" male flare-size ports, these high-purity pressure relief valves come with a bubble-tight seal and are factory-set for relief pressure.

Features

  • High reliability
  • Factory set
  • Low pressure drop
  • All mechanical
  • Right-angle flow
  • Flare type connection
  • Bubble tight seal

Applications

  • Special semiconductor equipment relief valve applications.

Specifications

  M-VF-F Pressure Relief
Set Point Accuracy ±5%
Repeatability ±2.5%
Calibration Range The product can be set at a cracking pressure in the range of 30 - 90 psi (2.1 - 6.2 bar) with bubble-tight shut off*
Cracking Pressure 30 - 90 psi (2.1 - 6.2 bar)
Hysteresis 30%
Connection Sizes 1/4" Male Flare

* Consult factory for lower settings
