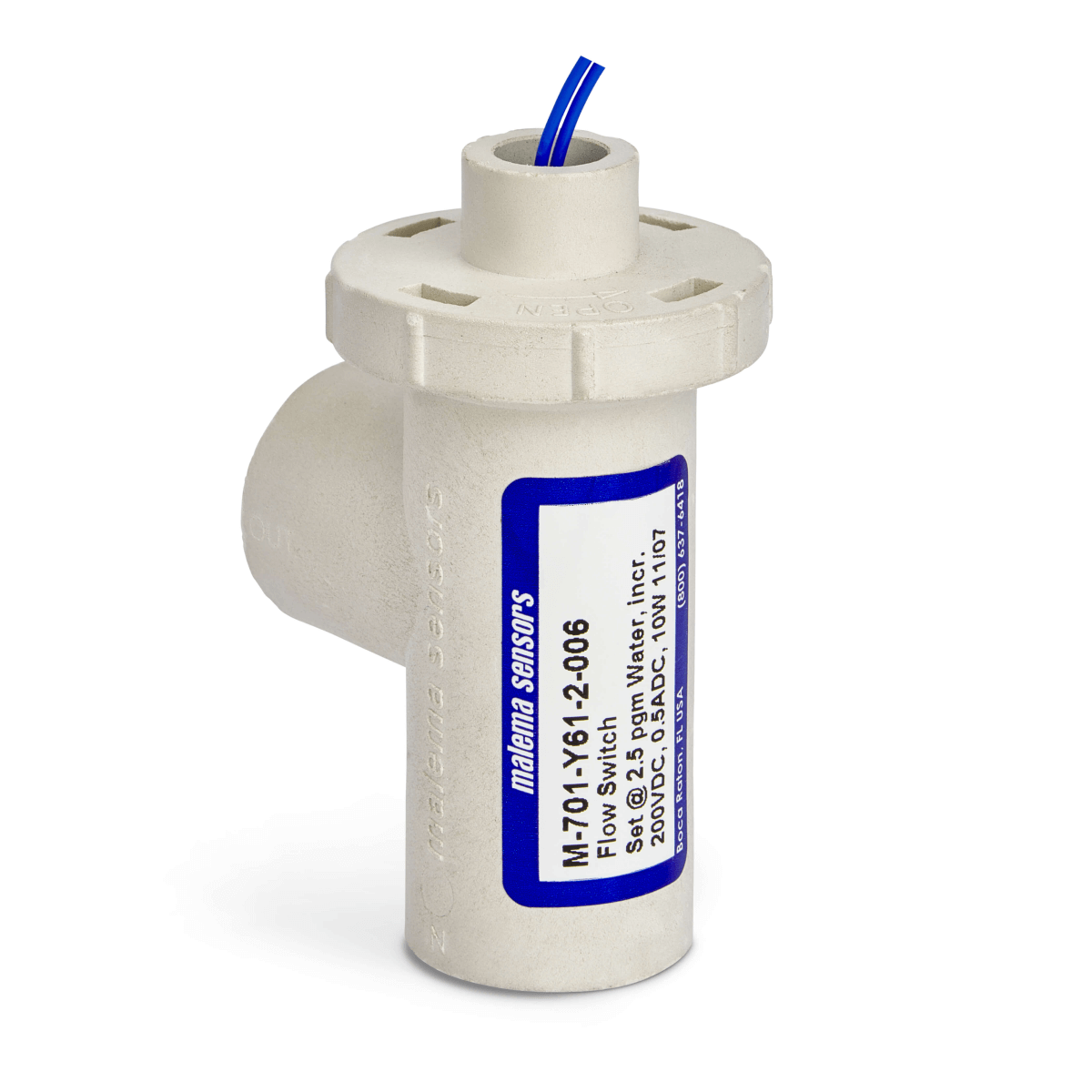

M-701 SERIES FIXED SET POINT SHUTTLE FLOW SWITCHES Fixed Set Point Shuttle Type Flow Switches with Right Angle Flow

The M-701 Series Fixed Set Point Shuttle Flow Switch offers accurate flow monitoring with a variety of switch actuation points and low pressure drop. M-701 is designed for ease of maintenance due to its shuttle type design, as the bonnet and shuttle can be removed, leaving the housing and pipe work connections intact. All wetted parts are polypropylene or stainless steel, making this Shuttle Flow Switch ideal for a wide range of chemical and temperature requirements, with its flow rates up to 19 L/m.

With configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT), the M-701 Series Fixed Set Point Shuttle Flow Switch allows for flexibility with different outputs for both the high and low set point. All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping. Additionally, Malema offers pre-calibrated set point ranges for applications that do not require a custom calibrated range.

Features

  • Low Cost Model
  • Universal Mounting
  • Convenient Maintenance

Applications

Equipment Cooling:

  • Welders
  • Lasers
  • Heat Exchangers

Water Treatment:

  • Chlorinators
  • Purifiers
  • Heaters

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-701 3/4" 1 - 19 LPM (0.26 - 5 GPM) - FNPT Fiberglass infused PP 20% maximum - ±20% maximum

* With applications featuring gases, ranges may vary
