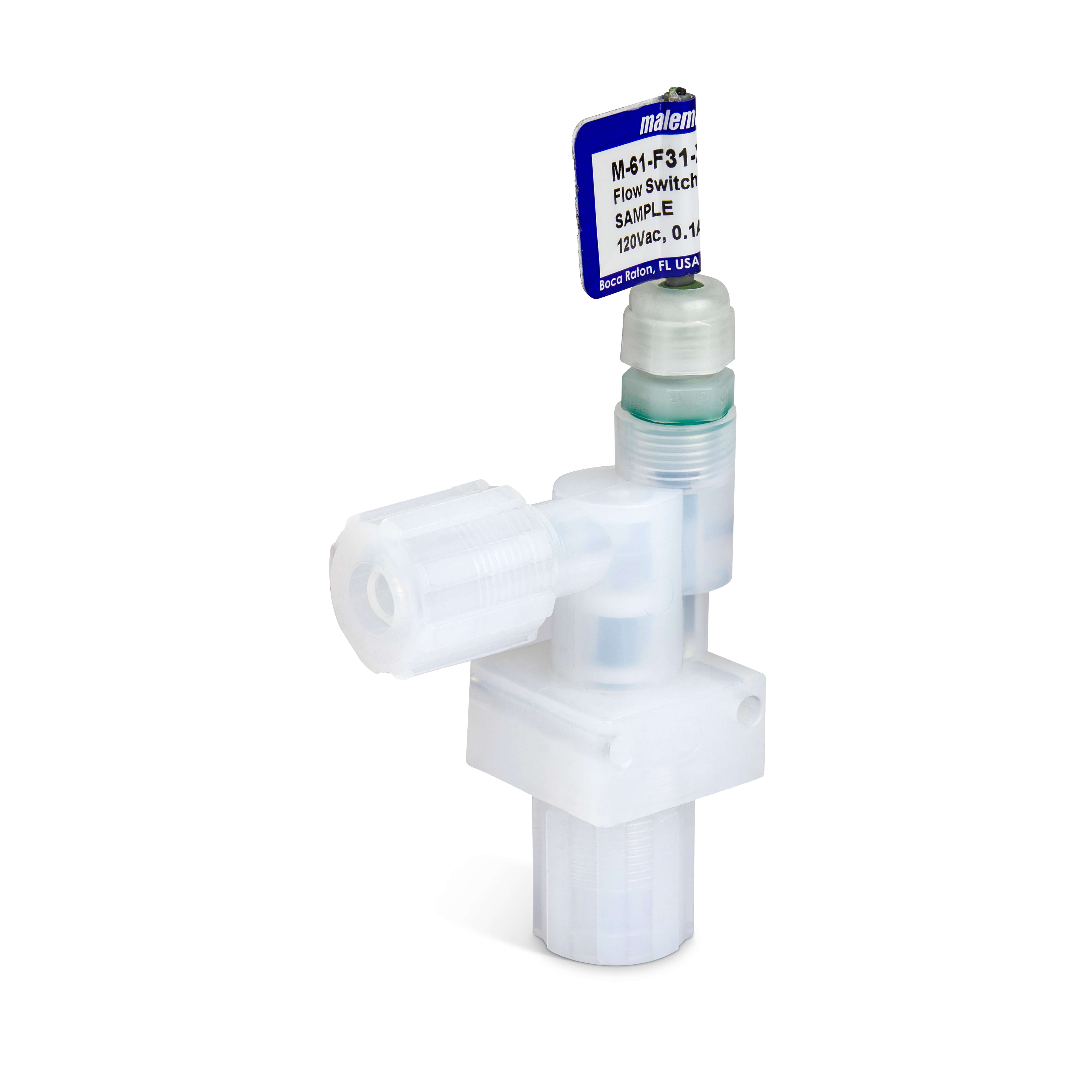

M-61-F SERIES PFA FIXED SET POINT FLOW SWITCHES PFA Fixed Set Point Piston Flow Switches with Right Angle Flow

Constructed with an all PFA molded body with PTFE piston, the M-61-F Series PFA Fixed Set Point Flow Switch is built and designed for high purity applications. Due to its PFA construction this flow switch is ideal for semiconductor applications and others that use corrosive liquids or gasses. Designed with right angle flow and flare fittings of either ¼” or ⅜” the M-61-F Series Fixed Set Point Flow Switches feature flow range rates of 20 to 7,600 CCM for water and 300 to 55,000 SCCM for air. When triggered, the M-61-F Flow Switch will be within 10% of the desired set point, with repeatability of 5%.

M-61-F Series PFA Fixed Set Point Flow Switches have configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility with different outputs for both the high and low set point. All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping. Additionally, Malema offers pre-calibrated set point ranges for applications that do not require a custom calibrated range.

Features

  • For corrosive and non-corrosive gases or liquids
  • Senses increasing or decreasing flow
  • Very accurate custom flow settings
  • Hermetically sealed
  • All-PFA molded body with PTFE piston
  • Extremely high level of accuracy within 10% of the desired set point for fixed set point models, and repeatability of 5% for all models of Malema Flow Switches.
  • Female NPT standard on flow switches providing small, compact design.
  • All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping.
  • Standard pre-calibrated set point ranges on Malema Flow Switches are also available for immediate use and distribution.
  • Malema application engineers are available for consultations to provide the best possible flow switch options and materials of construction to ensure compatibility.
  • Configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility different outputs for both the high and low set point.
  • Special configurations and different materials of construction are available. Consult the factory for details.

Applications

  • Gas and liquid analyzers, biomedical instruments, atmosphere furnaces, gas chromatographs, vacuum systems and industrial fluid lines
  • Protects expensive electronic equipment from coolant flow failure on:
    • Laser Heads • Welders • Power Supplies • High-Speed Spindles • X-Ray Tubes • Semiconductor Equipment • Portable Plasma Cutters/Tables
  • Helps assure proper lubrication flow to critical bearings or gears to prevent system downtime on:
    • Presses • Rotating Equipment • Conveyors • Machine Tools • Robotics
  • Helps ensure system integrity in processing and dispensing equipment on:
    • Water Purification and Filtering • Beverage Dispensing • Chemical Additives • Gas Sampling • Distilling • Car Wash Fluid Dispensing • Portable Chillers • Vacuum Furnaces • Induction Furnaces
  • Works just as well with gases as it does with liquids, including:
    • Hydrogen • Oxygen • Air • Nitrogen • Argon • Helium • and more

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-61 1/4" 20 - 7600 CCM (0.005 - 2 GPM) 300 - 55000 SCCM FLARE PFA ±10% maximum ±2% maximum 30%
3/8"

* With applications featuring gases, ranges may vary
