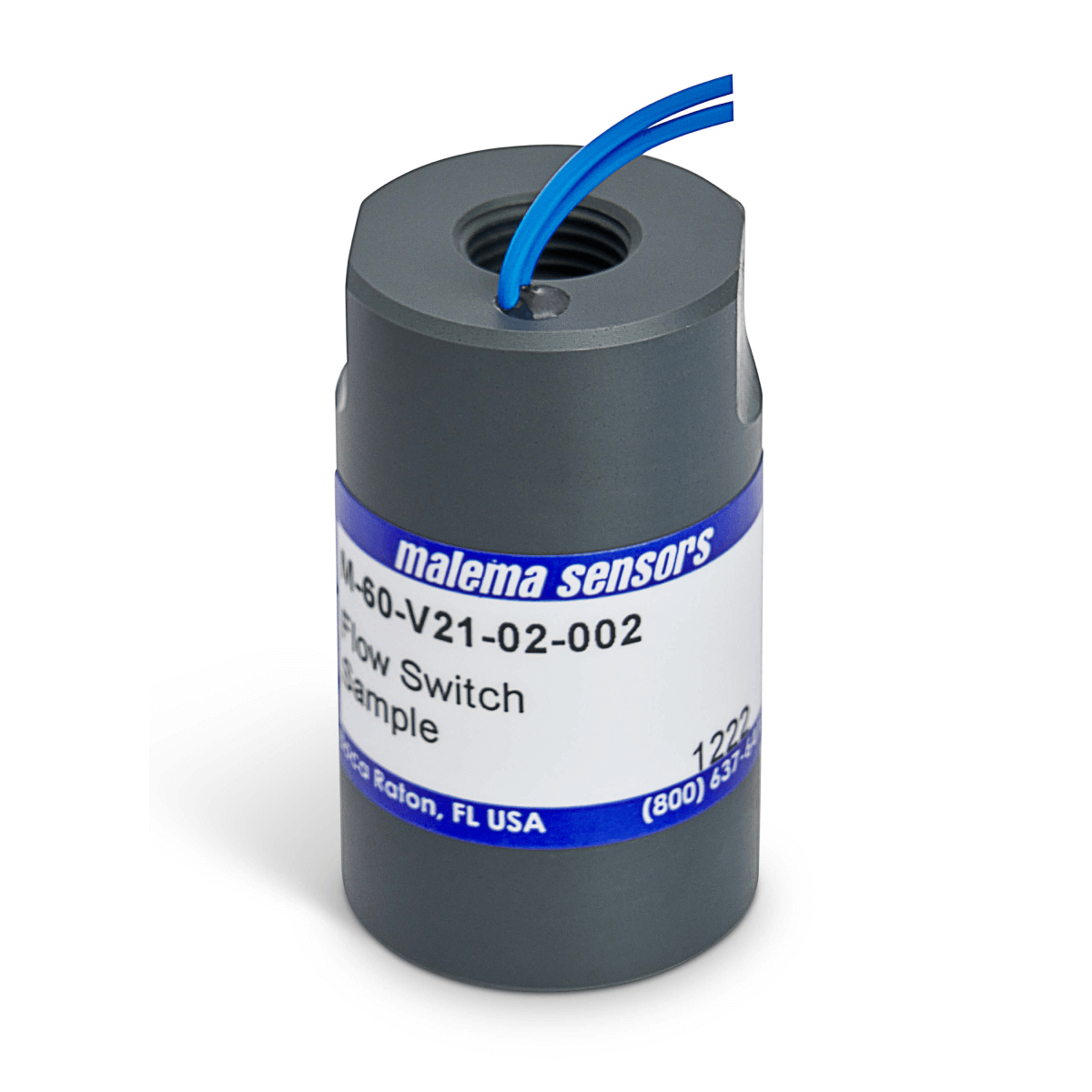

M-60 SERIES FIXED SET POINT FLOW SWITCHES Fixed Set Point Piston Flow Switches with Inline Flow

Available in 1/4" port size, the Malema M-60 Series Fixed Set Point Flow Switch is available in a wide range of construction materials including - acrylic, aluminum, PP, PTFE, PVC and stainless steel. These fixed set point flow switches monitor increasing and decreasing flow, with a flow range for water ranging from 750 to 1,600 CCM and 25 to 55 SLPM for air, these inline flow switches can be used in almost any application. When triggered, the M-60 Flow Switch will be within 10% of the desired set point, with repeatability of 5%.

M-60 Series Flow Switches have configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility with different outputs for both the high and low set point. All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping. Additionally, Malema offers pre-calibrated set point ranges for applications that do not require a custom calibrated range.

Features

  • Well suited for corrosive and non-corrosive gases or liquids
  • UL recognized for hazardous locations
  • Cenelec certified for intrinsic safety and encapsulation
  • Community Europe compliant
  • Universal mounting available
  • Extremely high level of accuracy within 10% of the desired set point for fixed set point models, and repeatability of 5% for all models of Malema Flow Switches.
  • Female NPT standard on flow switches providing small, compact design.
  • All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping.
  • Standard pre-calibrated set point ranges on Malema Flow Switches are also available for immediate use and distribution.
  • Malema application engineers are available for consultations to provide the best possible flow switch options and materials of construction to ensure compatibility.
  • Configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility different outputs for both the high and low set point.
  • Special configurations and different materials of construction are available. Consult the factory for details.

Applications

  • Gas and liquid analyzers, biomedical instruments, atmosphere furnaces, gas chromatographs, vacuum systems and industrial fluid lines
  • Protects expensive electronic equipment from coolant flow failure on:
    • Laser Heads • Welders • Power Supplies • High-Speed Spindles • X-Ray Tubes • Semiconductor Equipment • Portable Plasma Cutters/Tables
  • Helps assure proper lubrication flow to critical bearings or gears to prevent system downtime on:
    • Presses • Rotating Equipment • Conveyors • Machine Tools • Robotics
  • Helps ensure system integrity in processing and dispensing equipment on:
    • Water Purification and Filtering • Beverage Dispensing • Chemical Additives • Gas Sampling • Distilling • Car Wash Fluid Dispensing • Portable Chillers • Vacuum Furnaces • Induction Furnaces
  • Works just as well with gases as it does with liquids, including:
    • Hydrogen • Oxygen • Air • Nitrogen • Argon • Helium • and more

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-60 1/4" 750 - 1600 CCM (0.19 - 0.42 GPM) 25 - 55 SLPM FNPT 316SS, Acrylic, Anodized Aluminum, Brass, PP, PTFE, PVC ±10% maximum ±2% maximum 15%

* With applications featuring gases, ranges may vary
