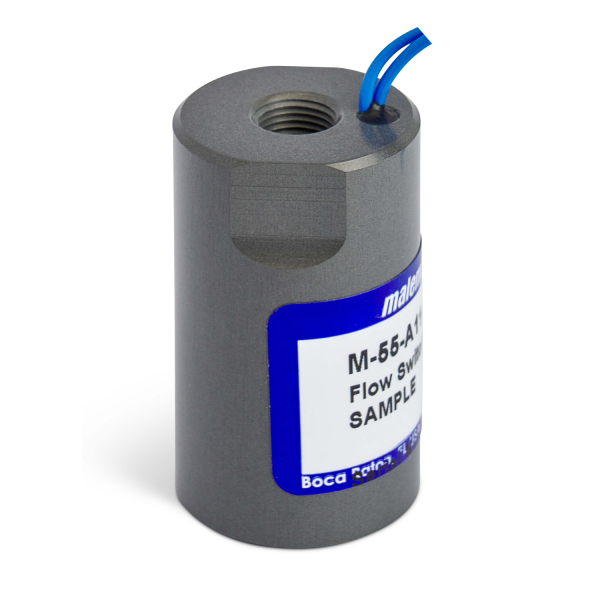

M-55 SERIES FIXED SET POINT FLOW SWITCHES Fixed Set Point Piston Flow Switches with Inline Flow

Utilizing a single moving part which responds to fluid (liquid or gas) flowing within a system, M-55 Series Fixed Set Point Flow Switches monitor increasing and decreasing flow. When triggered, the M-55 Flow Switch will be within 10% of the desired set point, with repeatability of 5%.These piston flow switches are suitable for a wide range of industrial applications due to their many available materials of construction – including acrylic, aluminum, PTFE, PPE and stainless steel. The flow switches operate only when fluid flow is positively established. The 1/8” port sized M-55 Flow Switch features a flow range up to 750 CCM (0.19 GPM) for water and 25 SLPM for air*. M-55 Series Flow Switches have configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility with different outputs for both the high and low set point. All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping. Additionally, Malema offers pre-calibrated set point ranges for applications that do not require a custom calibrated range.

Features

  • For corrosive and non-corrosive gases or liquids
  • Senses increasing or decreasing flow
  • Very accurate custom flow settings
  • Hermetically sealed
  • All-PTFE switch available
  • Universal mounting available
  • Extremely high level of accuracy within 10% of the desired set point for fixed set point models, and repeatability of 5% for all models of Malema Flow Switches.
  • Female NPT standard on flow switches providing small, compact design.
  • All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping.
  • Standard pre-calibrated set point ranges on Malema Flow Switches are also available for immediate use and distribution.
  • Malema application engineers are available for consultations to provide the best possible flow switch options and materials of construction to ensure compatibility.
  • Configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility different outputs for both the high and low set point.
  • Special configurations and different materials of construction are available. Consult the factory for details.

Applications

  • Gas and liquid analyzers, biomedical instruments, atmosphere furnaces, gas chromatographs, vacuum systems and industrial fluid lines
  • Protects expensive electronic equipment from coolant flow failure on:
    • Laser Heads • Welders • Power Supplies • High-Speed Spindles • X-Ray Tubes • Semiconductor Equipment • Portable Plasma Cutters/Tables
  • Helps assure proper lubrication flow to critical bearings or gears to prevent system downtime on:
    • Presses • Rotating Equipment • Conveyors • Machine Tools • Robotics
  • Helps ensure system integrity in processing and dispensing equipment on:
    • Water Purification and Filtering • Beverage Dispensing • Chemical Additives • Gas Sampling • Distilling • Car Wash Fluid Dispensing • Portable Chillers • Vacuum Furnaces • Induction Furnaces
  • Works just as well with gases as it does with liquids, including:
    • Hydrogen • Oxygen • Air • Nitrogen • Argon • Helium • and more

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-55 1/8" 170 - 750 CCM (0.04 - 0.19 GPM) 5 - 25 SLPM FNPT 316SS, Acrylic, Anodized Aluminum, Brass, PP, PTFE ±10% maximum ±2% maximum 15% - 30%

* With applications featuring gases, ranges may vary

For additional specification details, please refer to the product data sheet located in the documentation tab of this web page.
