The M-200X Series explosion-proof flow switches are engineered and field tested for sensing increasing and decreasing flow rates of gases or liquids.

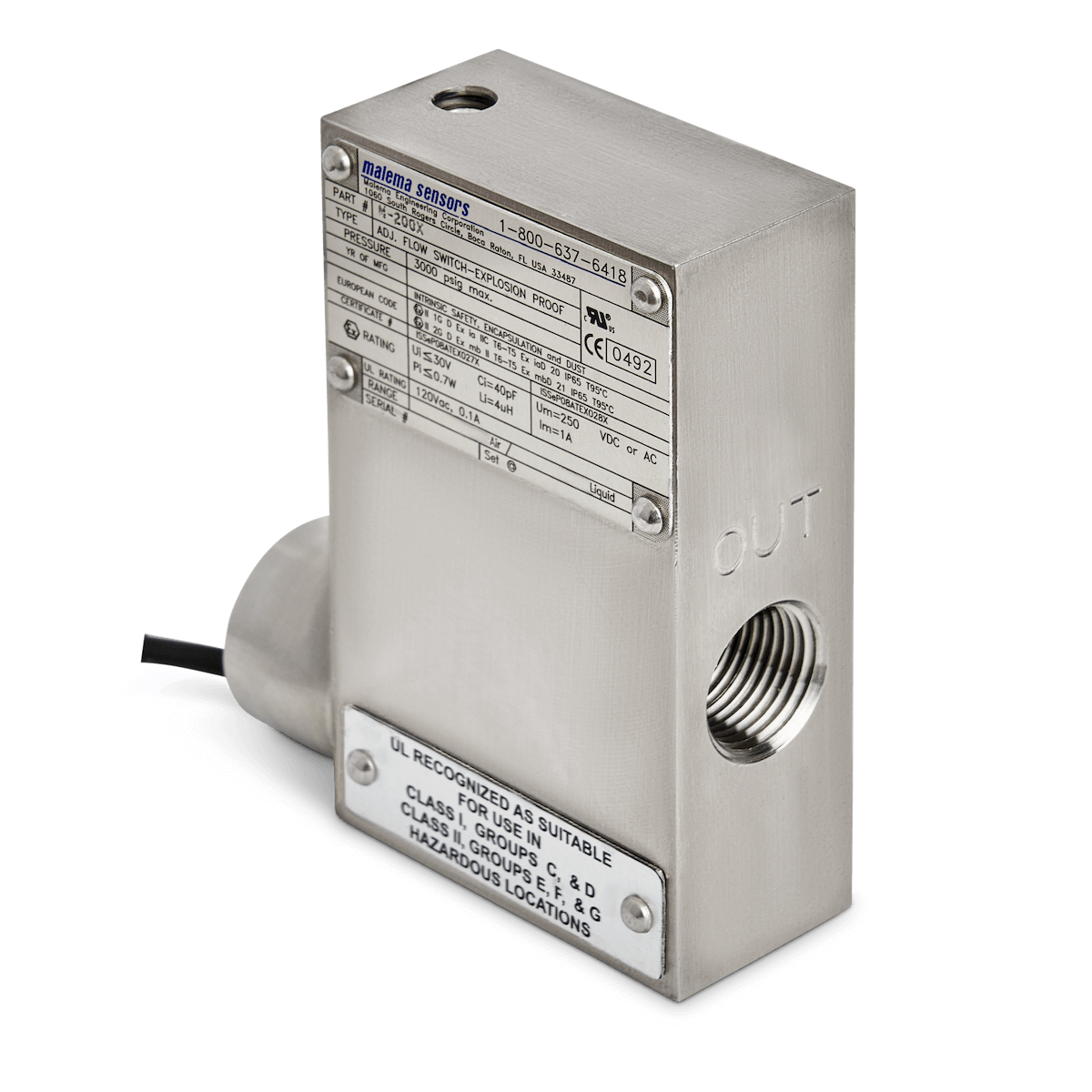

M-200X SERIES EXPLOSION-PROOF ADJUSTABLE FLOW SWITCHES UL Listed Adjustable Explosion Proof Flow Switches With Right Angle Flow

The M-200X Series Explosion Proof Adjustable Flow Switches are engineered and field tested for sensing increasing and decreasing flow rates of gasses or liquids. Pressure variation effects are minimal. Constructed of stainless steel, this explosion proof adjustable flow switch with right angle flow features such versatility, economy, and accuracy that it can be used in virtually any hazardous application requiring fool-proof flow detection.

With three different port size options (3/8”, 1/2” and 3/4”), the M-200x Series Explosion-Proof Adjustable Flow Switches come in SPST or SPDT configurations and are UL listed, ATEX and IECEX certified.

UL Listed Adjustable Explosion Proof Flow Switches with Right Angle Flow.

Features

  • Field adjustable
  • Infinite flow range
  • High repeatability
  • Extremely accurate and sensitive
  • Minimum pressure drop
  • Position insensitive

Applications

  • Gas and liquid analyzers
  • Biomedical instruments
  • Atmosphere furnaces
  • Fire control systems
  • Cooling systems

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-200X 3/8" 0.2 - 40 LPM (0.05 - 11 GPM) 56.5 - 2830 SLPM FNPT 316SS ±10% maximum ±2% 30%
1/2"
3/4"

* With applications featuring gases, ranges may vary
