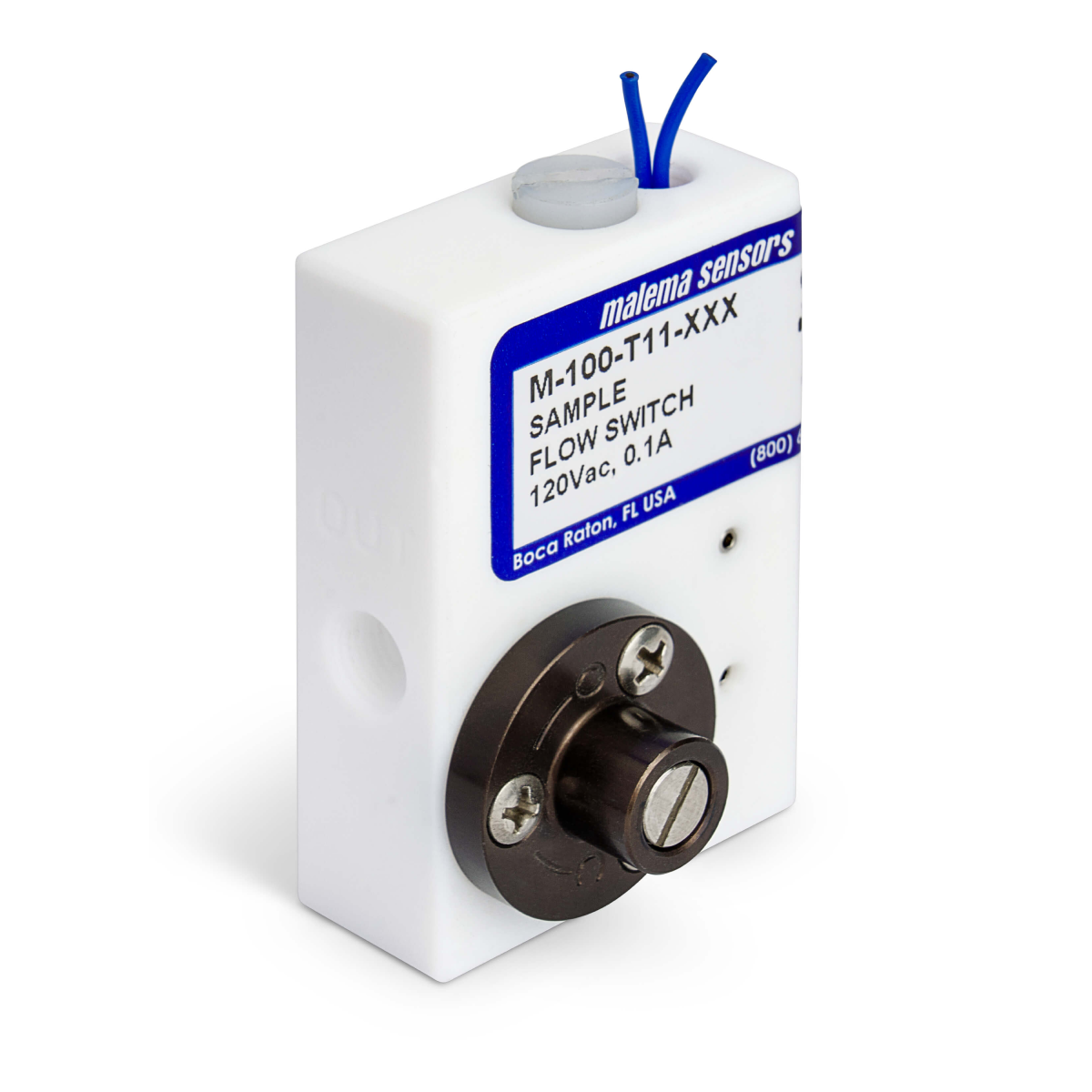

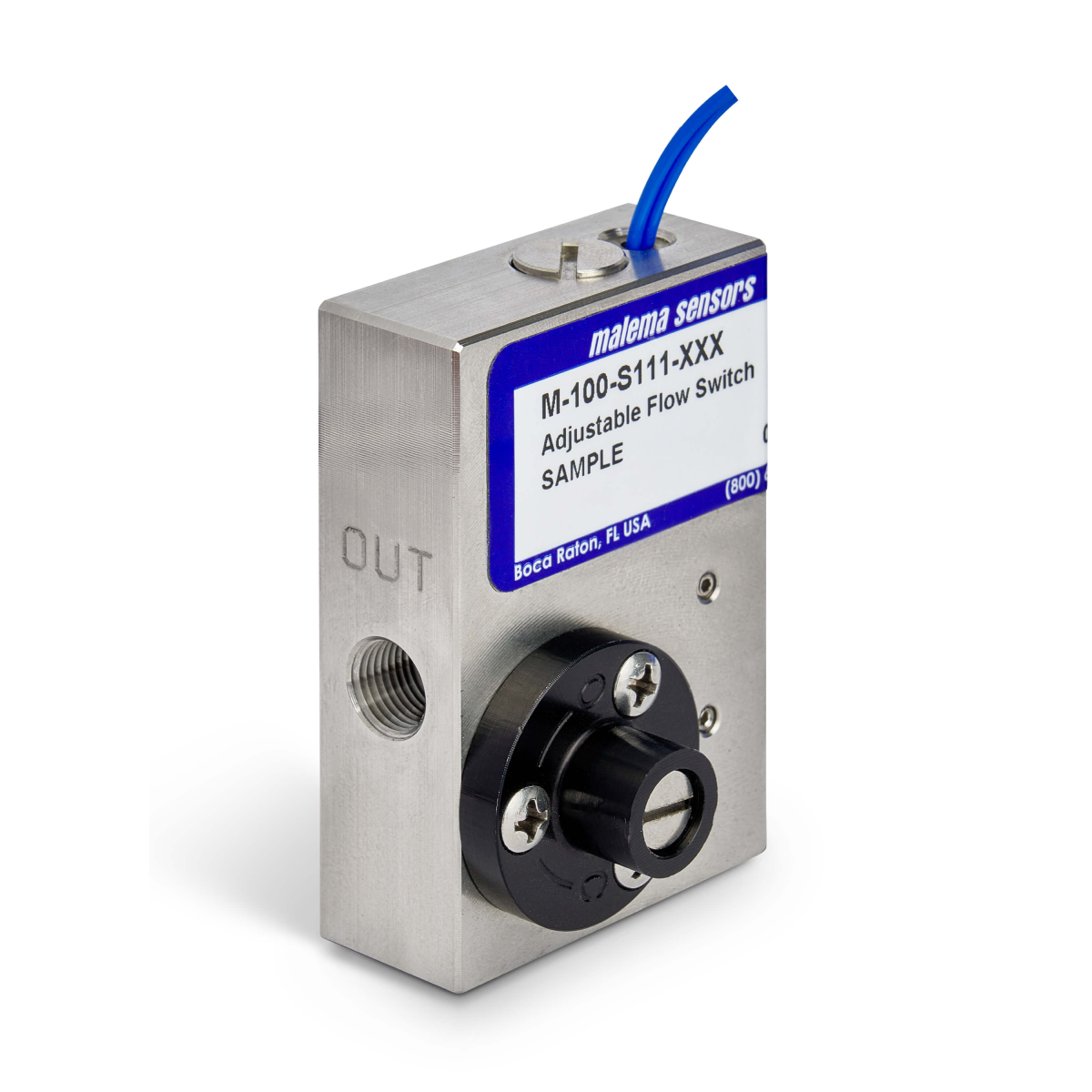

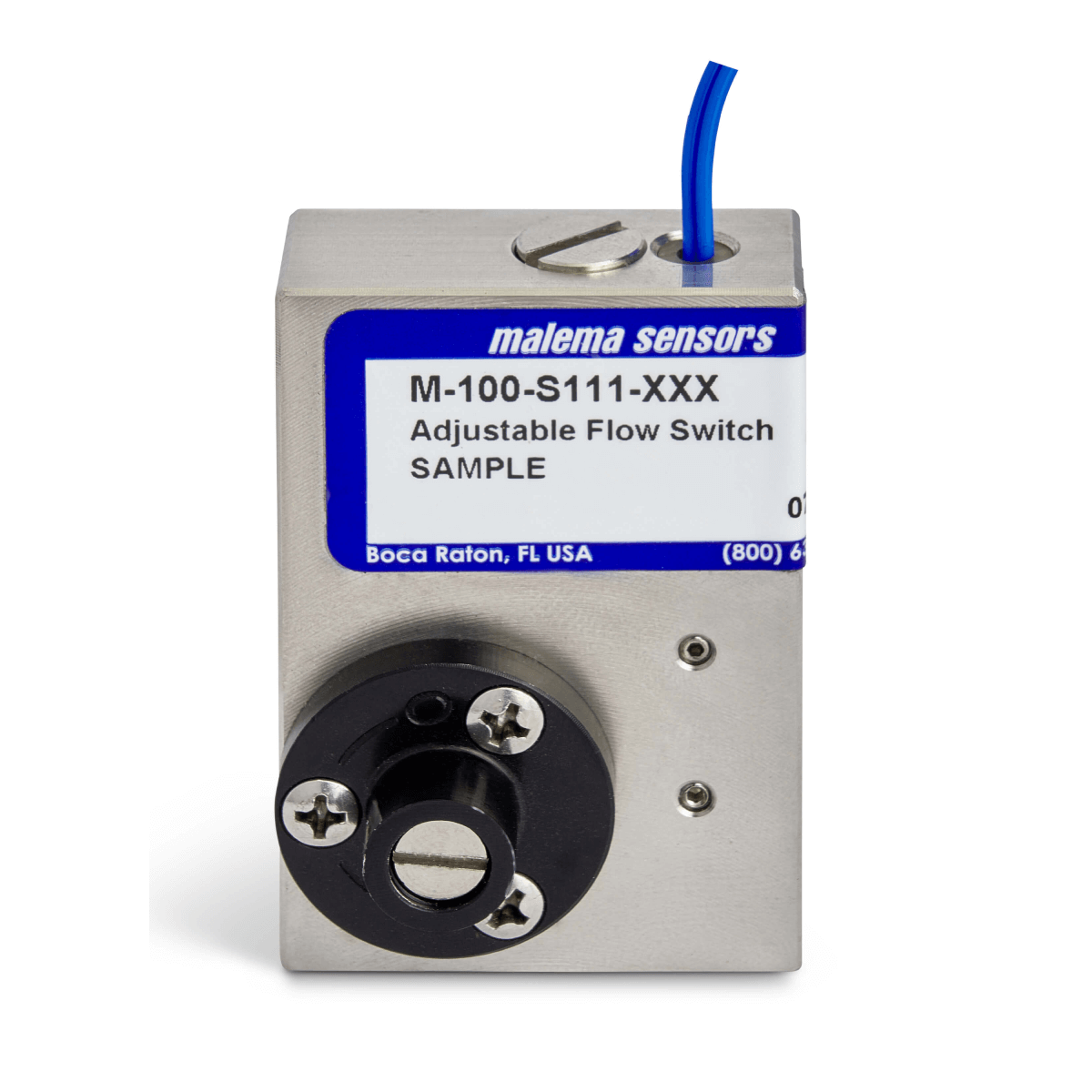

M-100 SERIES ADJUSTABLE FLOW SWITCHES Adjustable Piston Flow Switches with Right Angle Flow

The M-100 Series is an adjustable flow switch with right-angle flow that comes in 1/8” and 1/4” port sizes and has a flow range of up to 170 CCM for water and 60 SLPM for air. This extremely accurate adjustable flow switch provides repeatability of 5% and has options for SPST and SPDT configurations.

The M-100 Series Adjustable Flow Switch has been engineered to monitor vital sample flow parameters for instrumentation in process control and inert blanket gasses. It is used as an auxiliary alarm monitor for flow meters and is ideally suited for applications when installed on a by-pass for determination of filter plugging. Infinite adjustment permits detection and signaling of very low fluid flows with the added capability of detection in high flows.

Features

  • Field adjustable
  • Infinite flow range
  • For corrosive and non-corrosive liquids and gases
  • Extremely accurate and sensitive
  • Low pressure drop
  • All PTFE switch available
  • Universal mounting available
  • Repeatability of 5%
  • Female NPT standard on flow switches providing small, compact design.
  • All Malema Fixed Set Point Flow Switches can have their own customized set points calibrated at the factory before shipping.
  • Standard pre-calibrated set point ranges on Malema Flow Switches are also available for immediate use and distribution.
  • Malema application engineers are available for consultations to provide the best possible flow switch options and materials of construction to ensure compatibility.
  • Configurations available for single-pole, single-throw (SPST) or single-pole, dual-throw (SPDT) allowing for flexibility different outputs for both the high and low set point.
  • Special configurations and different materials of construction are available. Consult the factory for details.

Applications

  • Gas and liquid analyzers, biomedical instruments, atmosphere furnaces, gas chromatographs, vacuum systems and industrial fluid lines
  • Protects expensive electronic equipment from coolant flow failure on:
    • Laser Heads • Welders • Power Supplies • High-Speed Spindles • X-Ray Tubes • Semiconductor Equipment • Portable Plasma Cutters/Tables
  • Helps assure proper lubrication flow to critical bearings or gears to prevent system downtime on:
    • Presses • Rotating Equipment • Conveyors • Machine Tools • Robotics
  • Helps ensure system integrity in processing and dispensing equipment on:
    • Water Purification and Filtering • Beverage Dispensing • Chemical Additives • Gas Sampling • Distilling • Car Wash Fluid Dispensing • Portable Chillers • Vacuum Furnaces • Induction Furnaces
  • Works just as well with gases as it does with liquids, including:
    • Hydrogen • Oxygen • Air • Nitrogen • Argon • Helium • and more

Specifications

Model Port Size Flow Range Water Flow Range Air* Connection Type Available Materials Set Point Accuracy Repeatability Hystersis
M-100 1/8" 1 - 170 CCM (0.0002 - 0.04 GPM) 0.05 - 60 SLPM FNPT 316SS, Acrylic, Anodized Aluminum, Brass, PP, PTFE ±10% maximum ±1% 15%
1/4"

* With applications featuring gases, ranges may vary
