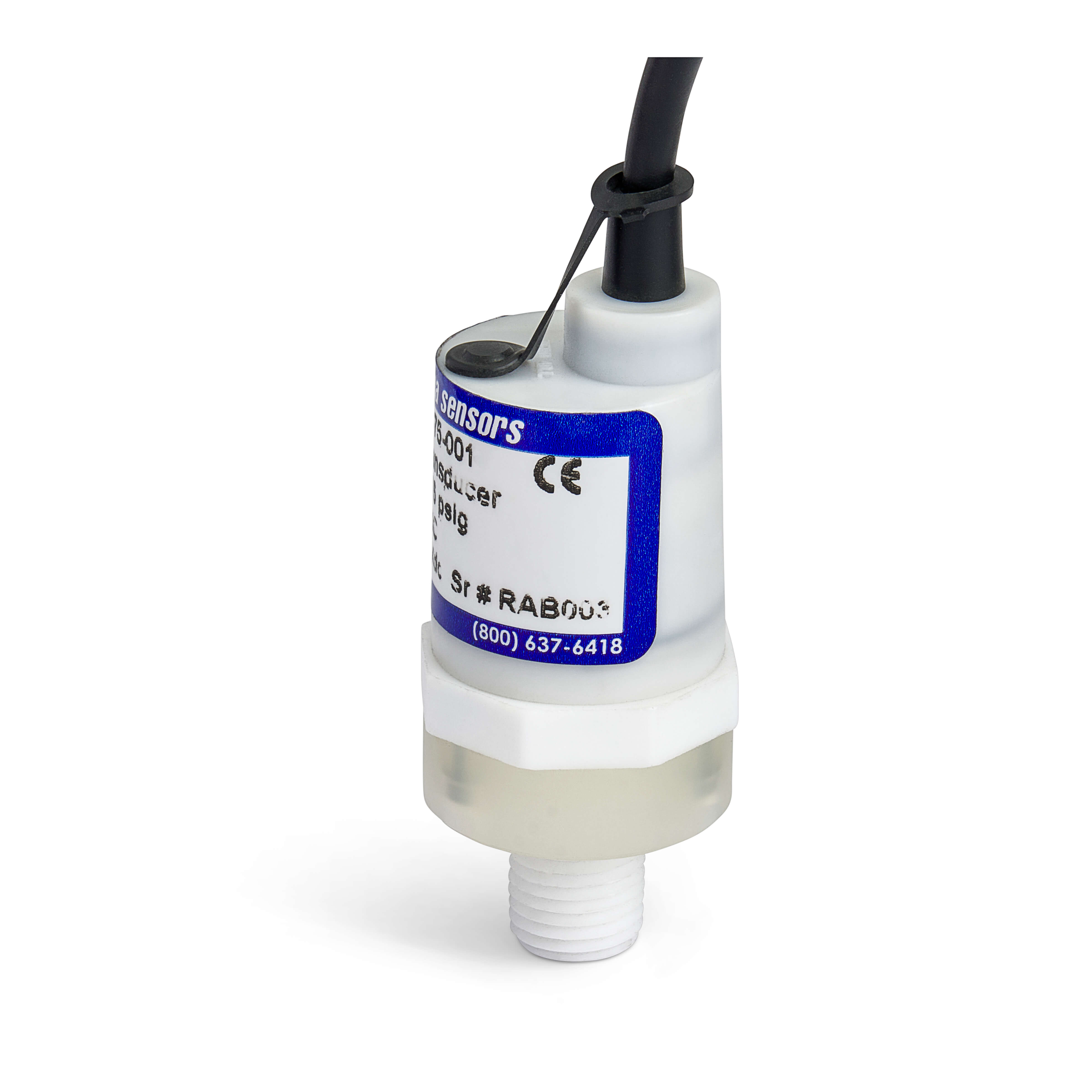

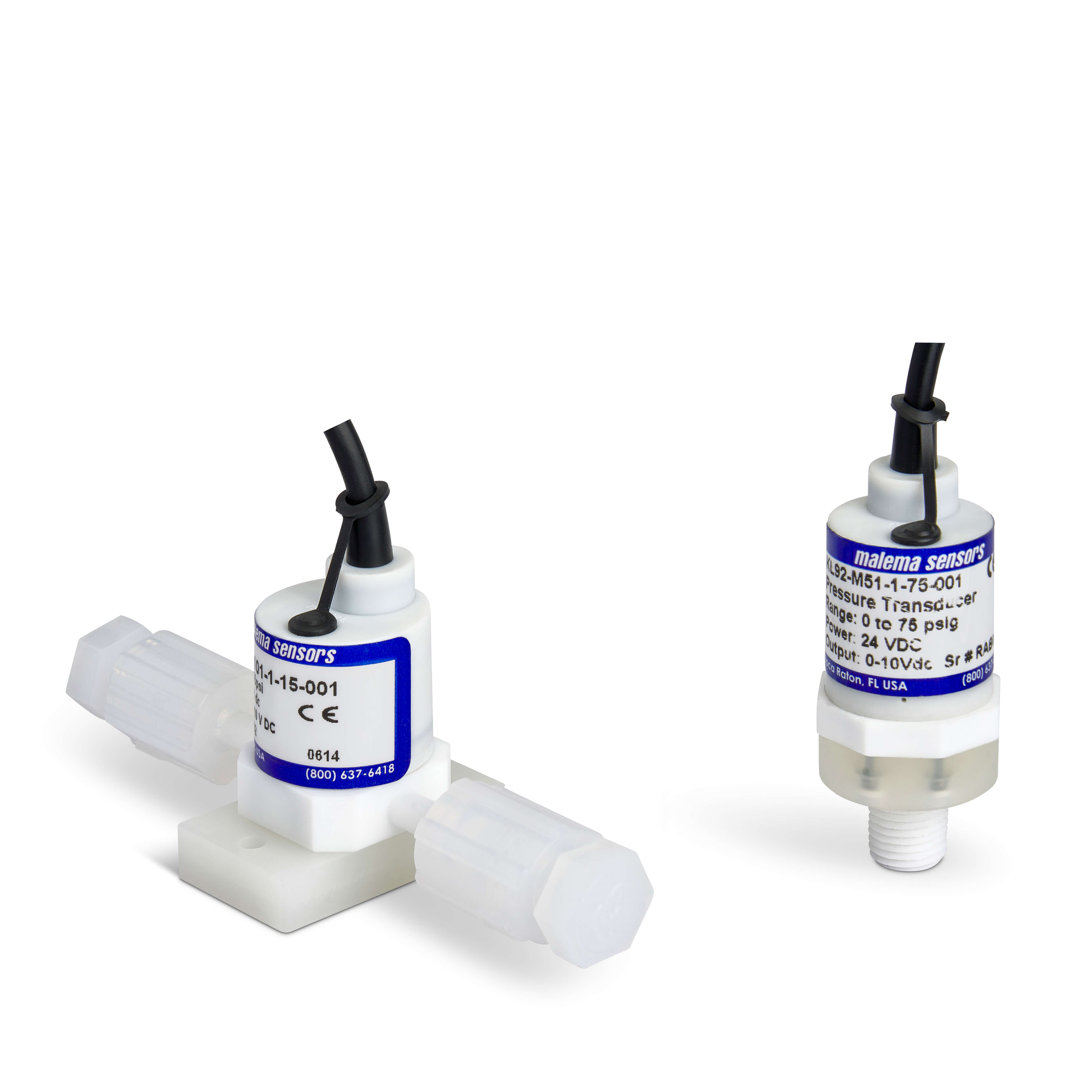

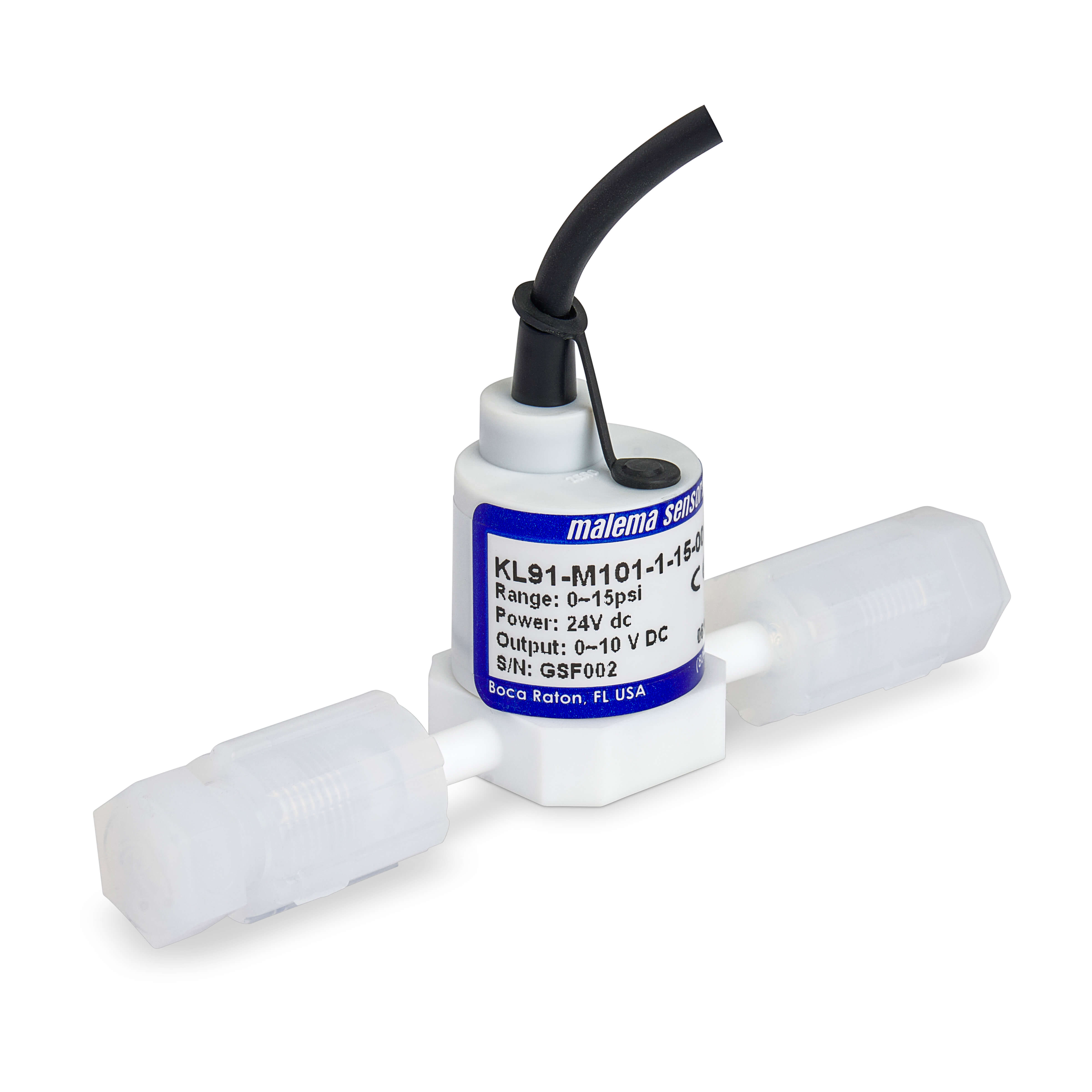

KL-91, KL-92, and KL-95 PRESSURE TRANSDUCERS High Purity Inline Pressure Sensors with PFA/PTFE Wetted Parts

Available in PFA and PTFE, Malema Pressure Sensors are designed to meet the requirements of contamination-free wetted parts, minimum dead volume and resistance to tough chemicals used in semiconductor and high-purity applications. These pressure sensors are available as a single port or inline flow-through design with tube connections or flare or pillar-type connection options.

Features

  • ± 1 % full-scale accuracy
  • All PFA/PTFE wetted part construction and PTFE coating on Alumina Sensor
  • No 'O'-ring seals or fill fluids
  • Choice of end fitting: Flare, Pillar, 20S, or Tube

Applications

  • High-purity DI water, and CMP slurry
  • Filtration condition monitoring
  • General pressure monitoring

Specifications

  Pressure Sensors
Measurement Range 0 - 50 psig
0 - 75 psig
Accuracy ±1% of Full Scale
Allowable Maximum Pressure 120 psig
Operating Temperature Range 25 - 89% RH (no condensation inside sensor)
Connection Sizes 1/4", 3/8", 1/2", 3/4", 1"
