High Flow Pump Range

The High Flow pump range has a flowrate of 0-27ml/s at 10RPS. Depending on the application, up to 30ml/s can be achieved by running the pumps at 11RPS. The 20mm rotor carries 2 cavities each with a resolution of 1.35ml. A range of pump configurations provide in-pump dilution, valves and mixers on the outlet. Low-pressure and high-pressure pumps are also available. QX260-DL dilution pumps can manage any dilution ratio from 1:1 to 1:30 where the concentrate flow rate is up to 27ml/s. The diluent flow rate is controlled by pressure regulation and a custom orifice moulded into the pump. See the product range below for more details.

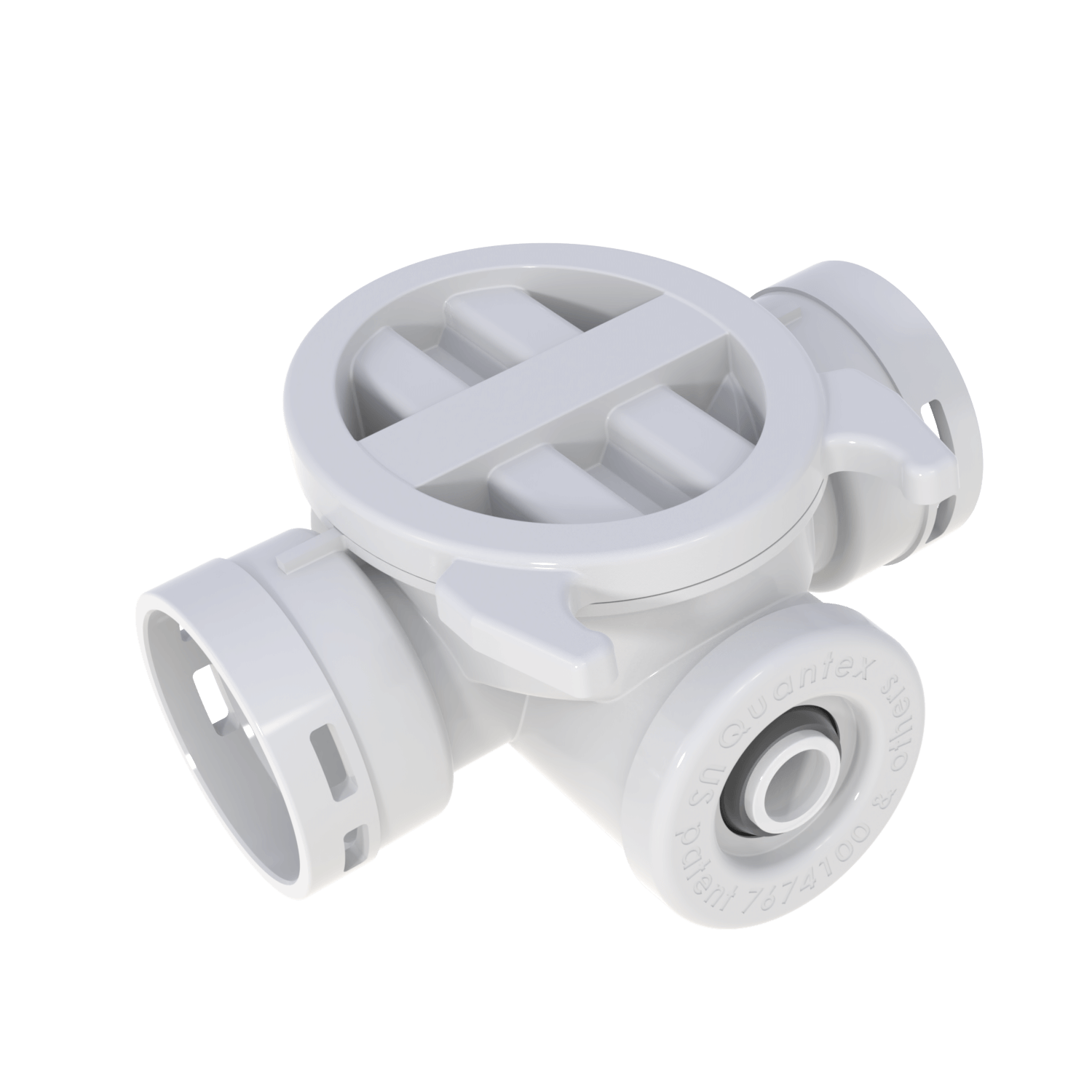

Q100-SD & Q100-HP

9.7-97 L/h

QX260-DL

9.7-97 L/h

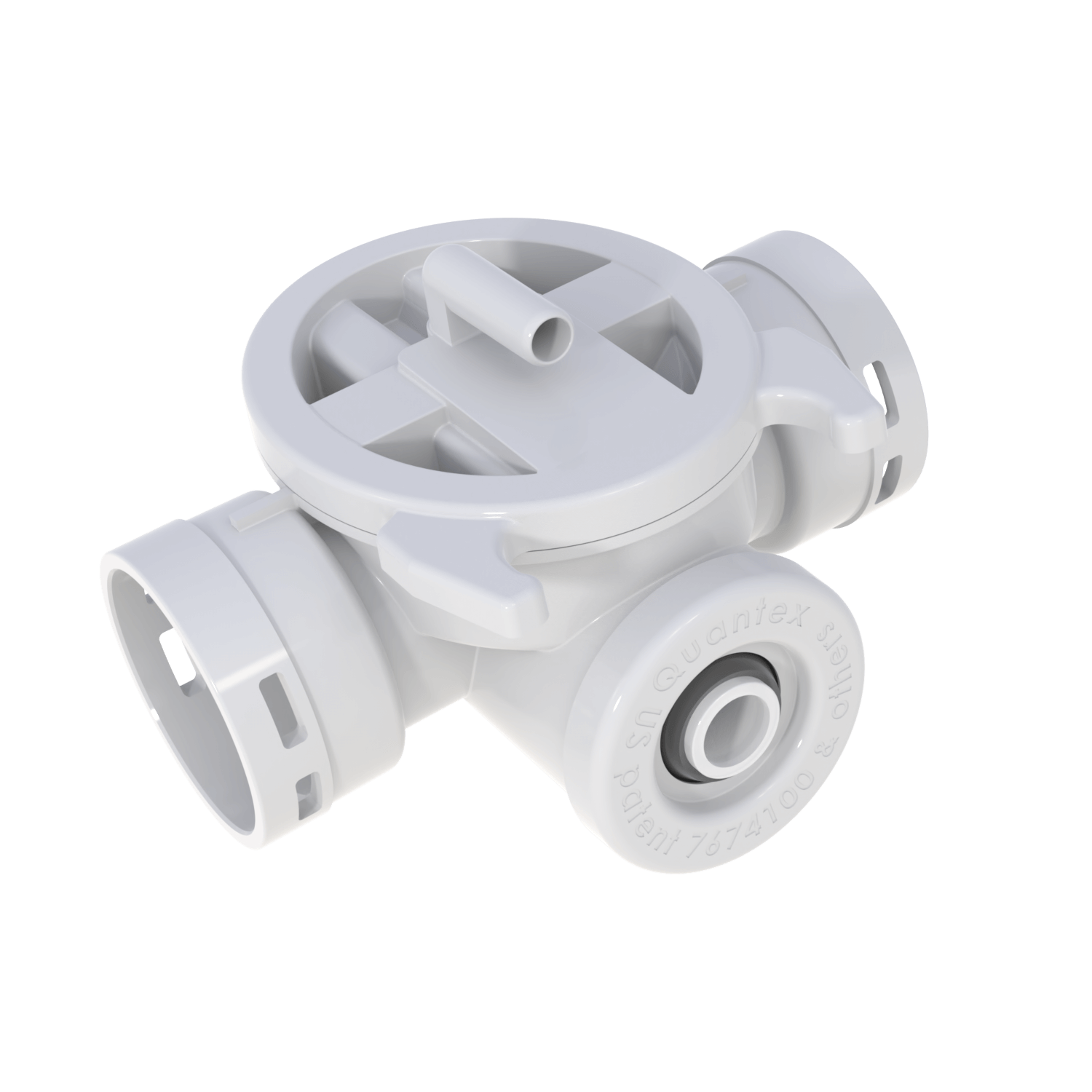

QX265-HS

9.7-267 L/hr

Pump Finder Tool

Use the fields below to help you identify which Quantex pump is most suitable for you.




Flow (LPM)

0.26-2.6 L/h 4.3-43 ml/min 0.07-0.7 ml/s

QX2-SD



QX2-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-SD



QX25-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-HP



QX25-HP

12-120 L/h 200-2000 ml/min 3.3-33 ml/s

QX120-DL



QX120-DL

2.3-63 L/h 38-1050 ml/min 0.63-17.5 ml/s

QX60-HS



QX60-HS

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

QX55-SD



QX55-SD

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

QX55-HP



QX55-HP

14.2-142 L/h 237-2367 ml/min 3.9-39 ml/s

QX140-DL



QX140-DL

5.4-148 L/h 90-2467 ml/min 1.5-41 ml/s

QX150-HS



QX150-HS

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-SD



QX100-SD

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-HP



QX100-HP

26.1-261 L/h 435-4350 ml/min 7.3-73 ml/s

QX260-DL



QX260-DL

9.7-267 L/hr 162-4450 ml/min 2.7-74 ml/s

QX265-HS



QX265-HS
