Frame M Centrifugal Pumps

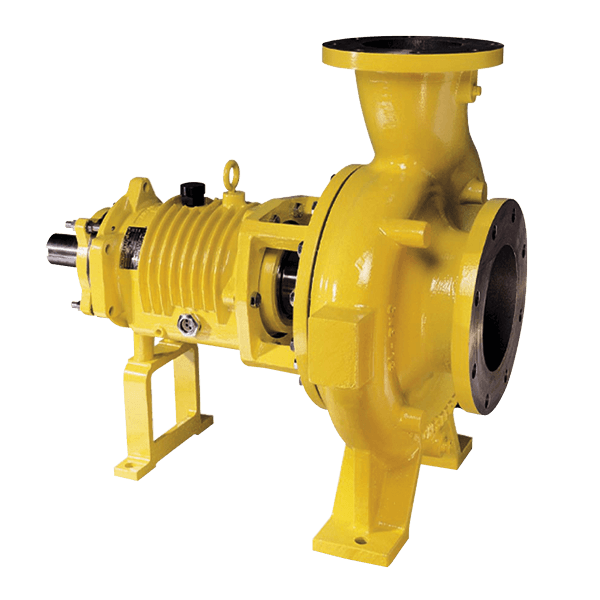

The Frame M Centrifugal Pump incorporates proven design features that provide maximum reliability and long life for the most demanding applications. Unparalleled design matched with the best warranty in the industry make the Frame M the most cost effective pumping system available.

The Frame M Centrifugal Pump offers the lowest L3/D4 stiffness ratio of any standard competitive size pump, and is engineered with the same heavy-duty advantages as the Frame LD17 with capacities to 4,500 gpm.

Features and Benefits

  • Engineered reliability for the most demanding environments
  • Lowest L3/D4 ratio of any process pump in this size range – 19 (.87) Frame M
  • Only ASME/ANSI B73.1 pump of its size that offers centerline mount for high temperature applications
  • Optional left/right side discharge
  • Available centerline mount for high temp applications
  • Left- or right-side discharge
  • Only large frame pump fully C-Frame/D-Flange capable. Accepts motor frame sizes up to 449TSC or 315L.

Applications

  • Chemicals
  • Mining de-watering
  • Water/wastewater
  • Liquid terminals

Technical Data

  • Five Year Power End Performance Assurance - Should any Blackmer Centrifugal Power End component fail within 5 years of the original installation, including bearings or shafts that have fractured, a free replacement component will be provided. This offer is limited to a claim for one of each component per power end.*
  • One Year Mechanical Seal Performance Assurance - should any factory supplied and installed mechanical seal fail within one year after the sale of the pump and seal, a spare parts kit (with materials the same as the original seal) will be provided at no charge. Limit of one seal claim per application.*

*See current Blackmer Warranty form 001-002 for full product warranty detail including exclusions and limitations of liability.

Get Your Centrifugal Pump Curves Now

Certifications

  • ASME (ANSI)
  • DIN/ISO
  • API 610

Now hear from our customers about what they had to say about Blackmer Centrifugal Pumps:

“Compared to the competition, Blackmer Centrifugal Pumps gives us the reliability and dependability we need to minimize downtime and stay competitive.”
- Jaydee Bullard, Manager of Terminals & Construction at Caljet

“It all comes down to reliability. Centrifugal pumps can operate across a wide range of their performance curve with minimal shaft deflection, which, in turn, increases mechanical seal and bearing life.”
– Anthony Paul, Director of PumpNSeal Pty. Ltd.

“The operational data of our Blackmer Centrifugal pumps proves their great reliability.”
– David Alexander, Owner of Caljet

“Blackmer offers a truly successful solution. Centrifugal Pumps deliver a truly reliable, trouble-free service.”
– Tony Ryder, Managing Director of REL

“The Centrifugal pump is perfect. We have spares, but they have been sitting on the shelf for years gathering dust because we never need them.”
– Tim Gardner, Maintenance Manager at Caljet

“From the initial engineering to the quality workmanship, Blackmer makes the perfect pump that, once put into service, will keep on running.”
– Jaydee Bullard, Manager of Terminals & Construction at Caljet

Downloads

Installation Operation Manuals (IOMs)

IOM Blackmer Centrifugal Pumps 1301-C00
Frame S, Frame SD, Frame A / LD17, Vortex and Frame M
IOM Blackmer Centrifugal Pumps 1301-C00 (DE)
Frame S, Frame SD, Frame A / LD17, Vortex und Frame M

Catalogs

CATALOG Blackmer Centrifugal Pumps Technical Reference 1301-001

Dimensions

DIMENSIONS Blackmer Seal Area 1301-101

Case Studies

CASE STUDY Peace of “Mine”
ATK0210-025 - Australian mine operator finds success in using Blackmer Centrifugal Pumps for mine dewatering operations.
CASE STUDY The Fuel For Success
ATK3000-031 - Focused on how a storage terminal uses Blackmer Centrifugal Pumps and Blackmer Sliding Vane Pumps like MLX and GX Models for quickly moving product.

ATEX Certification

CERTIFICATION Declaration of Conformity as Defined by the ATEX Directive Form 577
Frame SD, Frame S, Frame A, Frame LD17, Frame A IPP, Frame LD17 IPP, Frame M

Videos

Caljet Selects Blackmer® Centrifugal and Vane Pumps for Reliable Fuel-Terminal Transfer
