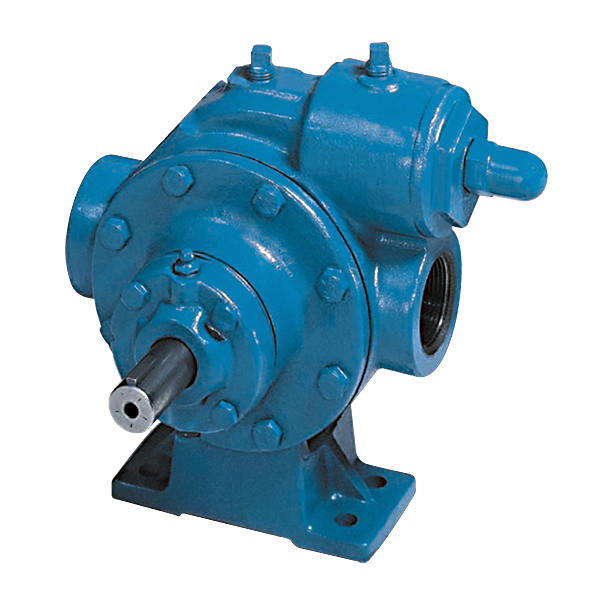

Part of the Cavitation Line, CRL high-speed sliding vane pumps are durable motor-speed pumps offer capacities from 5 to 22 U.S. gpm (19-83 L/min), and are ideal for loop systems and low volume transfer applications. CRL models are designed for foot-mounting to a common baseplate.
Available with 1.25- or 1.5-in NPT tapped ports, all models are equipped with an internal relief valve, and a replaceable casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary. The CRLR 1.25-in model features a special liner which offers lower flow rates than the CRL 1.25-in pump.
Standard construction materials for these pumps include silicon carbide mechanical seals and laminate vanes. Maximum differential pressure for the CRLR 1.25 is 70 psi (4.83 bar), and 100 psi (6.89 bar) for the CRL 1.25- and CRL 1.5-in models.
Assembled pump units are available from the factory, with or without motors. For dimensions of assembled pump units, refer to catalog dimension sheets.
Blackmer fully Integrated Unit Assemblies are the pre-engineered and pre-designed drop-in pumping solution. These unit assemblies, include motor, gearbox, baseplate, coupling safety covers, and a CRL 1.5-inch Sliding Vane Pump. No alignment required with these pre-configured fully Integrated Unit Assemblies as they are ready for immediate drop-in installation.
