Bag-In-Box Pump Range

The Bag-in-Box pump range has flowrates ranging from 1.5 – 41ml/s. The Bag-in-Box pump range is a direct replacement for a gravity-fed wine tap – its inlet is compatible with a standard Bag-in-Box (BiB) gland. The 19mm rotor carries 3 cavities each with a resolution of 0.5ml. A range of pump configurations provide in-pump dilution, valves and mixers on the outlet. Low-pressure and high-pressure pumps are also available. See the product range below for more details.

Pump Finder Tool

Use the fields below to help you identify which Quantex pump is most suitable for you.




Flow (LPM)

0.26-2.6 L/h 4.3-43 ml/min 0.07-0.7 ml/s

QX2-SD



QX2-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-SD



QX25-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-HP



QX25-HP

12-120 L/h 200-2000 ml/min 3.3-33 ml/s

QX120-DL



QX120-DL

2.3-63 L/h 38-1050 ml/min 0.63-17.5 ml/s

QX60-HS



QX60-HS

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

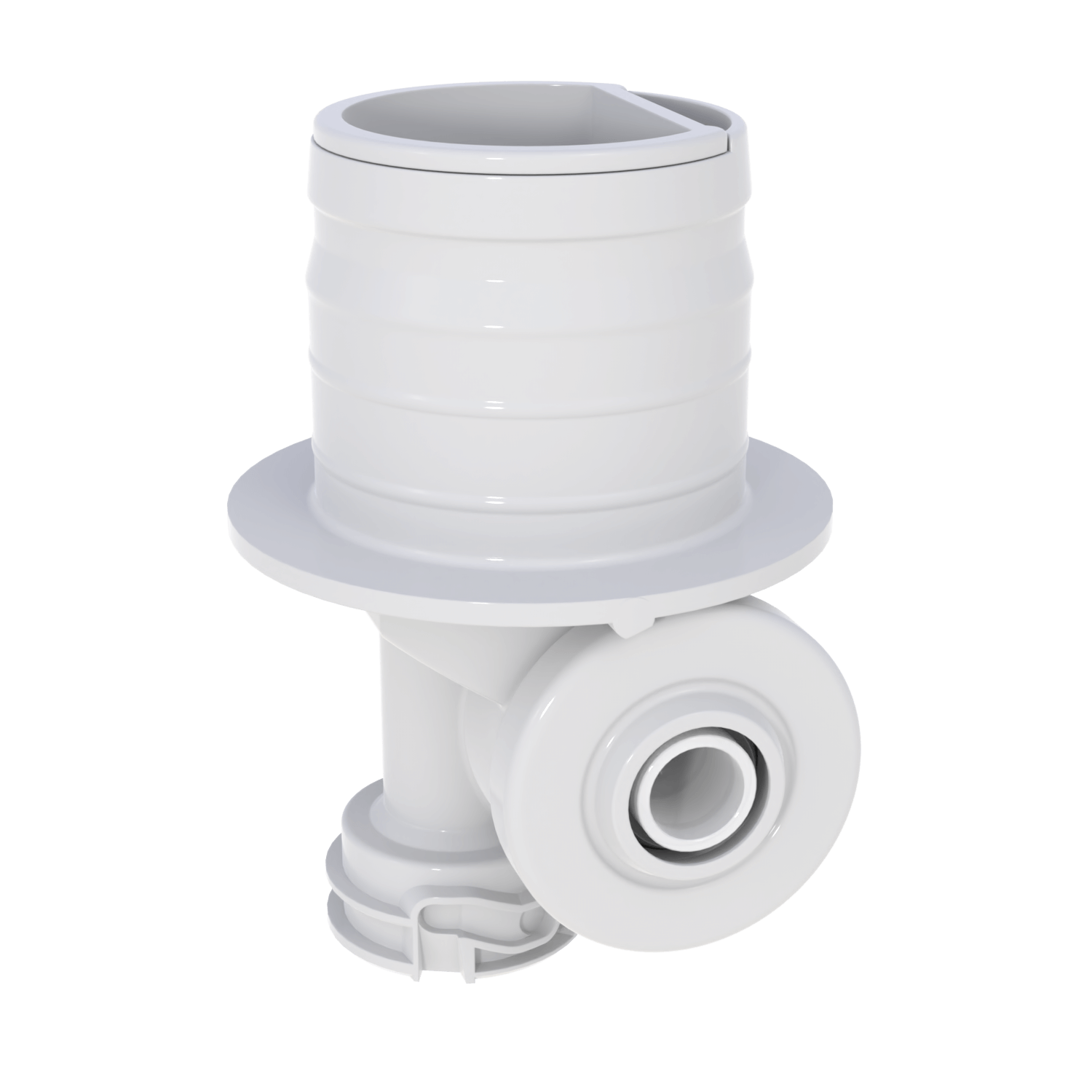

QX55-SD



QX55-SD

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

QX55-HP



QX55-HP

14.2-142 L/h 237-2367 ml/min 3.9-39 ml/s

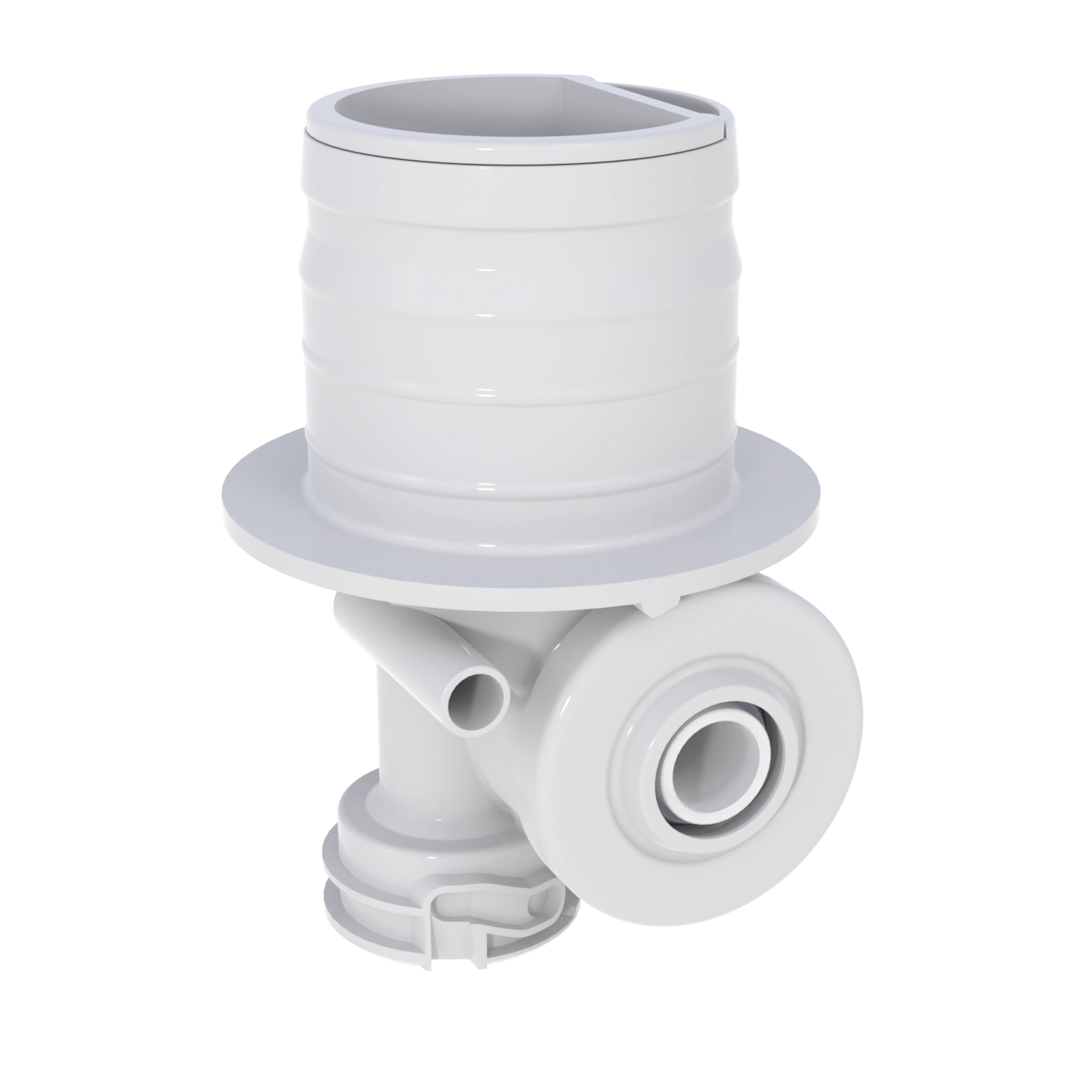

QX140-DL



QX140-DL

5.4-148 L/h 90-2467 ml/min 1.5-41 ml/s

QX150-HS



QX150-HS

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-SD



QX100-SD

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-HP



QX100-HP

26.1-261 L/h 435-4350 ml/min 7.3-73 ml/s

QX260-DL



QX260-DL

9.7-267 L/hr 162-4450 ml/min 2.7-74 ml/s

QX265-HS



QX265-HS
