Wilden AODD Double Diaphragm Pump - 76 mm (3 in.) - FDA Approved - PS15

76 mm (3") Pro-Flo®SHIFT Saniflo™ FDA Series Clamped Metal AODD Pump PS15

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • Tri-Clamp®
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.6’) Dry, 8.6 m (28.4’) Wet
  • EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
  • Rubber – 927 lpm (245 gpm)
  • EZ-Install TPE – 901 lpm (238 gpm)
  • Full-Stroke PTFE – 916 lpm (242 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 9.5 mm (3/8")
DISPLACEMENT PER STROKE *
  • Rubber – 5.2 L (1.38 gal)
  • EZ-Install TPE – 5.3 L (1.41 gal)
  • Full-Stroke PTFE – 5.1 L (1.34 gal)
    • * 1 cycle = 2 strokes
Order Online
  • EC-1935-LOGO
  • fda_logo
  • ce_logo
  • atex_logo

Features and Benefits

Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design

Downloads

Flyers

FLYER Wilden Pure-Fuse Flyer
WIL-19183-F-04

Spec Sheets

SPEC SHEET 76 mm (3") Pro-Flo Shift Original Metal Pump
Model: PS15 | Code: WIL-10420-T-02

Performance and Specifications

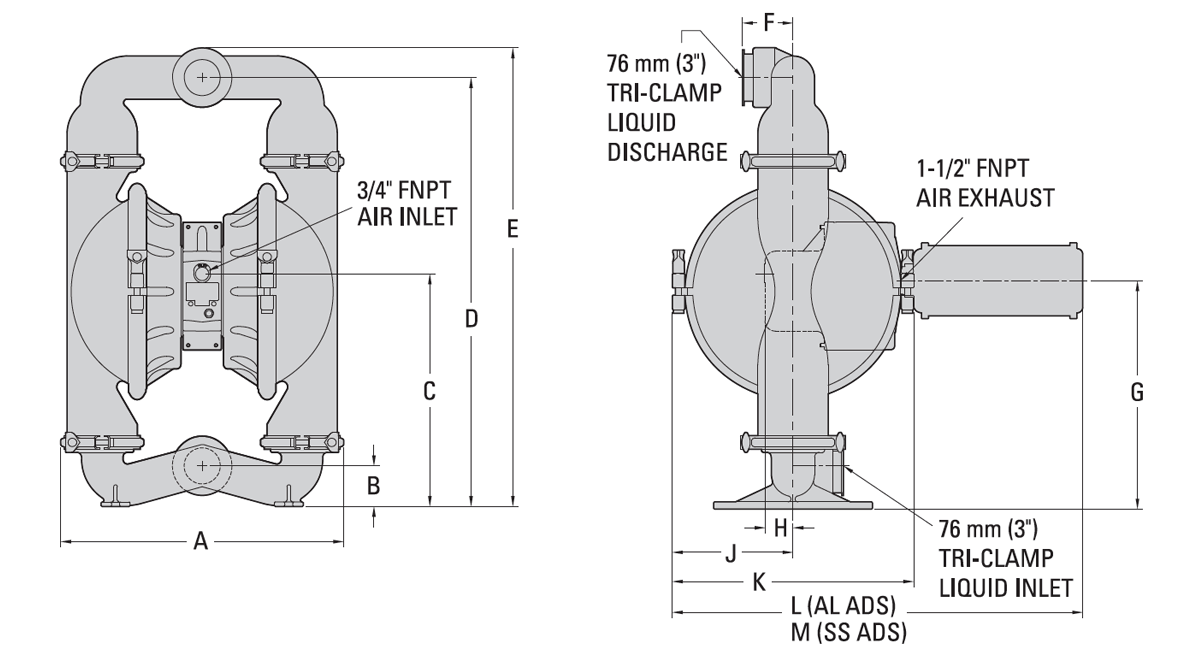

Dimensions

Dim-PS15-73mm3in-PFSS-FDA-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Metal Manual.

Flow Curve – EZ-Install TPE-Fitted

Flo-PS15-73mm3in-PFSS-FDA-CMP

Note: Additional performance curves can be found in the PS15 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • Tri-Clamp®
MAX FLOW RATE
  • Rubber – 927 lpm (245 gpm)
  • EZ-Install TPE – 901 lpm (238 gpm)
  • Full-Stroke PTFE – 916 lpm (242 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 9.5 mm (3/8")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.6’) Dry, 8.6 m (28.4’) Wet
  • EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 5.2 L (1.38 gal)
  • EZ-Install TPE – 5.3 L (1.41 gal)
  • Full-Stroke PTFE – 5.1 L (1.34 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Wt
Stainless Steel 105 kg (230 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Nickel-Plated, Stainless Steel, Polypropylene
Air Valve Aluminum, Nickel-Plated, Stainless Steel, Polypropylene
Air Chamber Aluminum, Nickel-Plated, Stainless Steel

Elastomer Options

Material Temperature Limits
PTFE* 4°C to 104°C (40°F to 220°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
