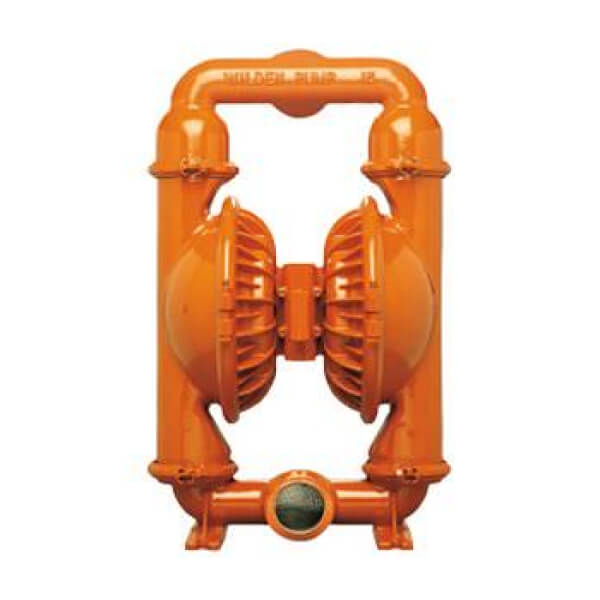

76 mm (3") Turbo-Flo™ Clamped Metal AODD Pump (T15)

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.5 m (18') Dry, 9.45 m (31') Wet
  • TPE – 3.49 m (13') Dry, 8.53 m (28') Wet
  • PTFE – 3.49 m (13') Dry, 8.53 m (28') Wet
MAX FLOW RATE
  • Rubber – 878 lpm (232 gpm)
  • TPE – 845 lpm (223 gpm)
  • PTFE – 704 lpm (186 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 10 mm (3/8'')
DISPLACEMENT PER STROKE *
  • Rubber – 5.3 L (1.40 gal)
  • TPE – 5.4 L (1.43 gal)
  • PTFE – 3.6 L (0.95 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE

Features and Benefits

Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.
  • Simple air distribution system design, minimal moving parts
  • Clamped design for lightweight and quick maintenance
  • Ability to handle dirty air applications
  • Single-point exhaust

Downloads

EOM

76 mm (3'') Turbo-Flo Clamped Metal Pump
Model: T15 | Code: WIL-10252-E-01

Performance and Specifications

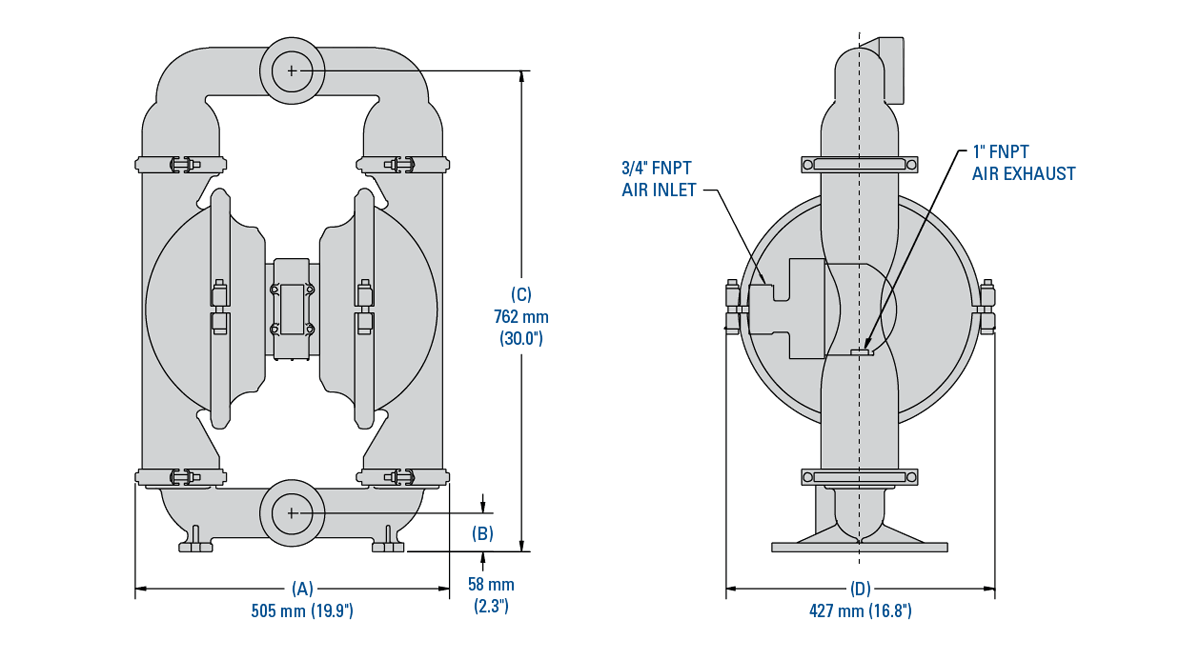

Dimensions

Dim-T15-76mm3inTurbo-Flo-CMP

Note: Dimensions vary by material and connection. For additional information, please refer to the T15 Metal Manual.

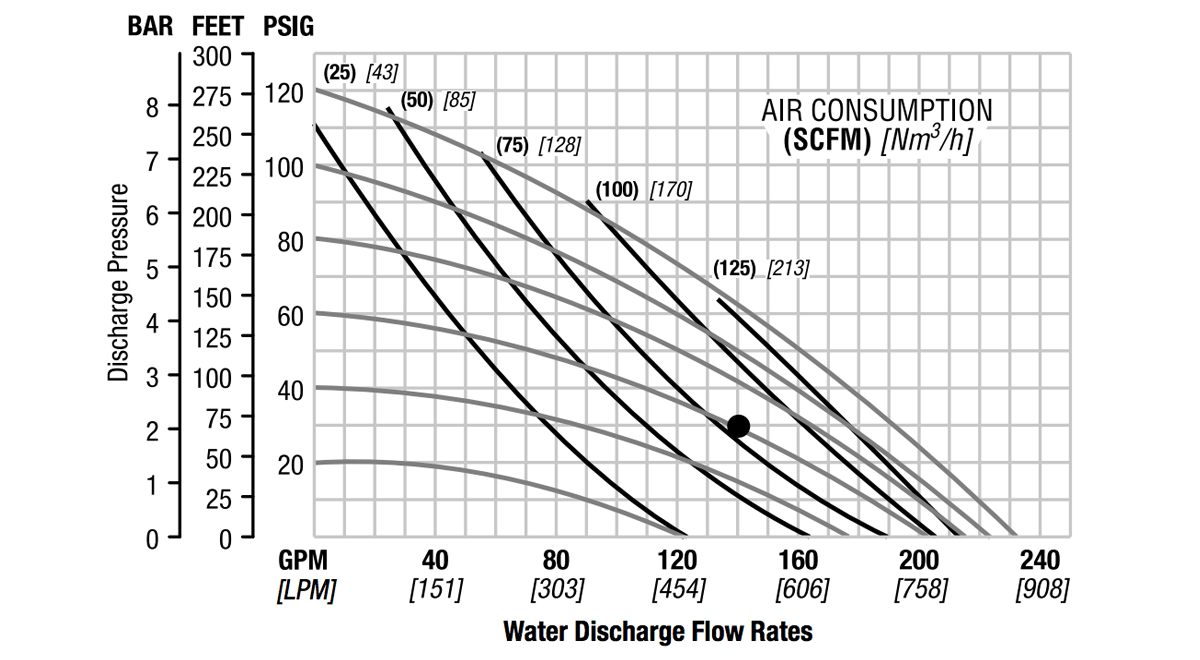

Flow Curve – TPE-Fitted

Flo-T15-76mm3inTurbo-Flo-CMP

Note: Additional performance curves can be found in the T15 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 878 lpm (232 gpm)
  • TPE – 845 lpm (223 gpm)
  • PTFE – 704 lpm (186 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 10 mm (3/8'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 5.5 m (18') Dry, 9.45 m (31') Wet
  • TPE – 3.49 m (13') Dry, 8.53 m (28') Wet
  • PTFE – 3.49 m (13') Dry, 8.53 m (28') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 5.3 L (1.40 gal)
  • TPE – 5.4 L (1.43 gal)
  • PTFE – 3.6 L (0.95 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 53 kg (116 lb)
Cast Iron 91 kg (200 lb)

Non-Wetted Housings

Description Material
Center Block Aluminum, Polypropylene
Air Valve Brass
Air Chamber  Aluminum

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
