76 mm (3") Pro-Flo® SHIFT Series Clamped Metal AODD Pump PS15

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.6') Dry, 8.6 m (28.4') Wet
  • EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
  • Rubber – 927 lpm (245 gpm)
  • EZ-Install TPE – 901 lpm (238 gpm)
  • Full-Stroke PTFE – 916 lpm (242 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 9.5 mm (3/8")
DISPLACEMENT PER STROKE *
  • Rubber – 5.2 L (1.38 gal)
  • EZ-Install TPE – 5.3 L (1.41 gal)
  • Full-Stroke PTFE – 5.1 L (1.34 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

  • NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

76 mm (3'') Pro-Flo SHIFT Clamped Metal Pump
Model: PS15 | Code: WIL-10420-E-11

Spec Sheets

SPEC SHEET 76 mm (3") Pro-Flo Shift Original Metal Pump
Model: PS15 | Code: WIL-10420-T-02

Performance and Specifications

Dimensions

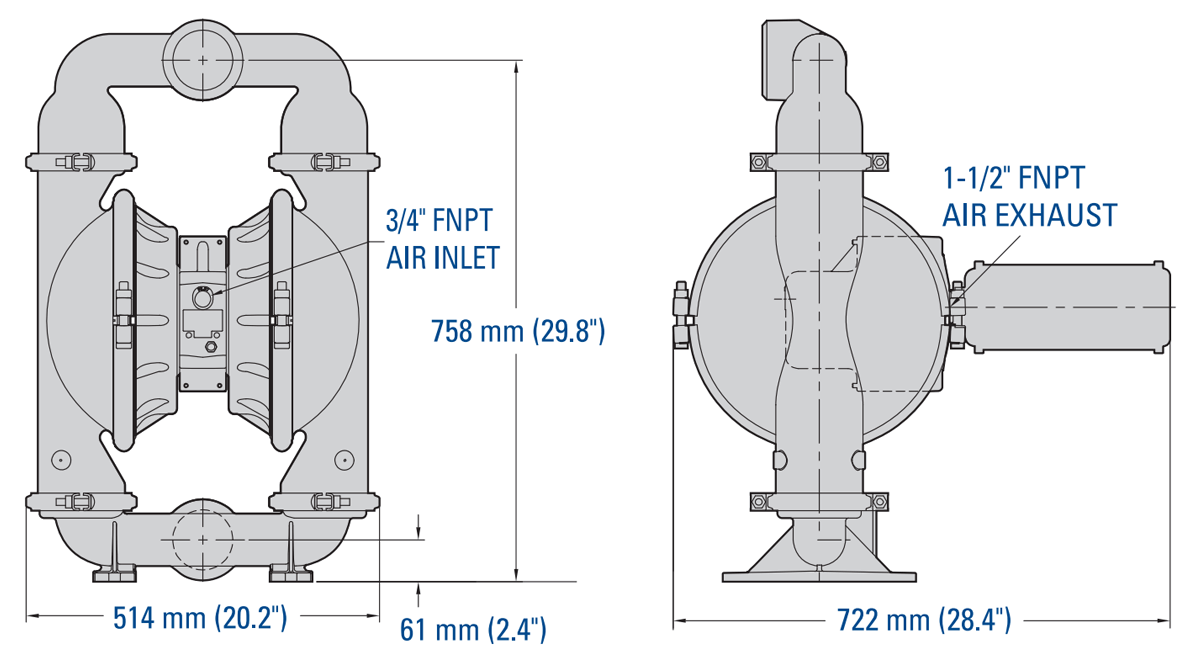

Dim-PS15-76mm-3in-PF-SSCMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS15 Metal Manual.

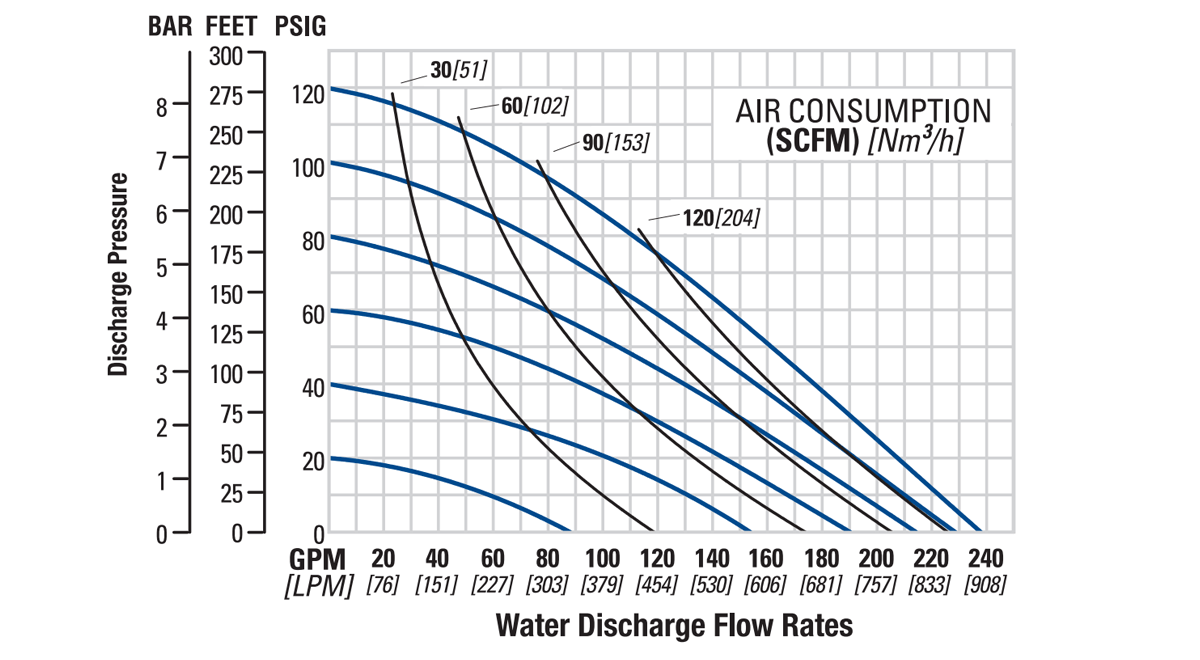

Flow Curve – EZ-Install TPE-Fitted

Flo-PS15-761mm-3in-PF-SSCMP

Note: Additional performance curves can be found in the PS220/PS230 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 927 lpm (245 gpm)
  • EZ-Install TPE – 901 lpm (238 gpm)
  • Full-Stroke PTFE – 916 lpm (242 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 9.5 mm (3/8")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.6') Dry, 8.6 m (28.4') Wet
  • EZ-Install TPE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
  • Full-Stroke PTFE – 6.2 m (20.2') Dry, 8.6 m (28.4') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 5.2 L (1.38 gal)
  • EZ-Install TPE – 5.3 L (1.41 gal)
  • Full-Stroke PTFE – 5.1 L (1.34 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 55 kg (121 lb)
Stainless Steel 105 kg (230 lb)
Ductile Iron 93 kg (205 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene
Air Valve Aluminum, Nickel-Plated Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene
Air Chamber Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
