Wilden AODD Double Diaphragm Pump - 76 mm (3 in.) - Pro-Flo Bolted Plastic - P1500

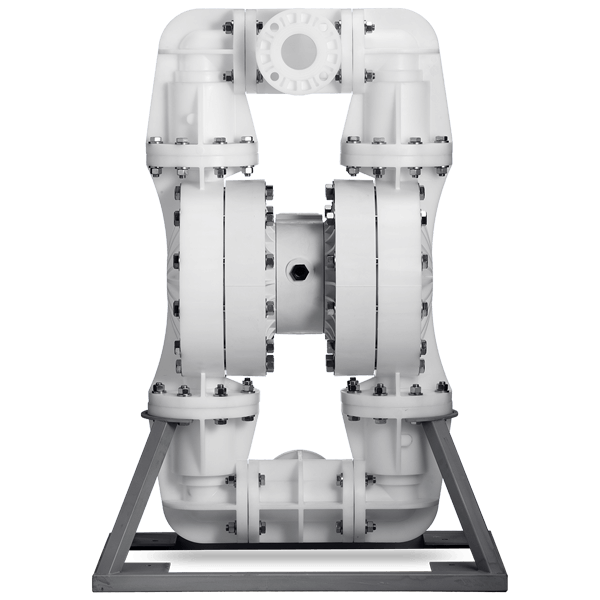

76 mm (3") Pro-Flo® Series Bolted Plastic AODD Pump P1500

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Full-Stroke PTFE – 5.5 m (18.2') Dry, 8.6 m (28.4') Wet
  • Reduced-Stroke PTFE – 3.63 m (12') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
  • Full-Stroke PTFE – 878 lpm (232 gpm)
  • Reduced-Stroke PTFE – 784 lpm (207 gpm)
MAX PRESSURE
  • 6.9 bar (100 psi) for polypropylene pumps
  • 8.6 bar (125 psi) for PVDF pumps
MAX DIAMETER SOLIDS
  • 12.7 mm (1/2'')
DISPLACEMENT PER STROKE *
  • Full-Stroke PTFE – 5.8 L (1.52 gal)
  • Reduced-Stroke PTFE – 3.75 L (0.99 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • DIN or ANSI flanged inlet/discharge liquid connections
  • Decades of proven performance
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Downloads

EOMs

76 mm (3") Pro-Flo Bolted Plastic Pump
Model: P1500 | Code: WIL-11160-E-09

Spec Sheets

SPEC SHEET 76 mm (3") Pro-Flo Plastic Pump
Model: P1500 | Code: WIL-11160-T-02

Performance and Specifications

Dimensions

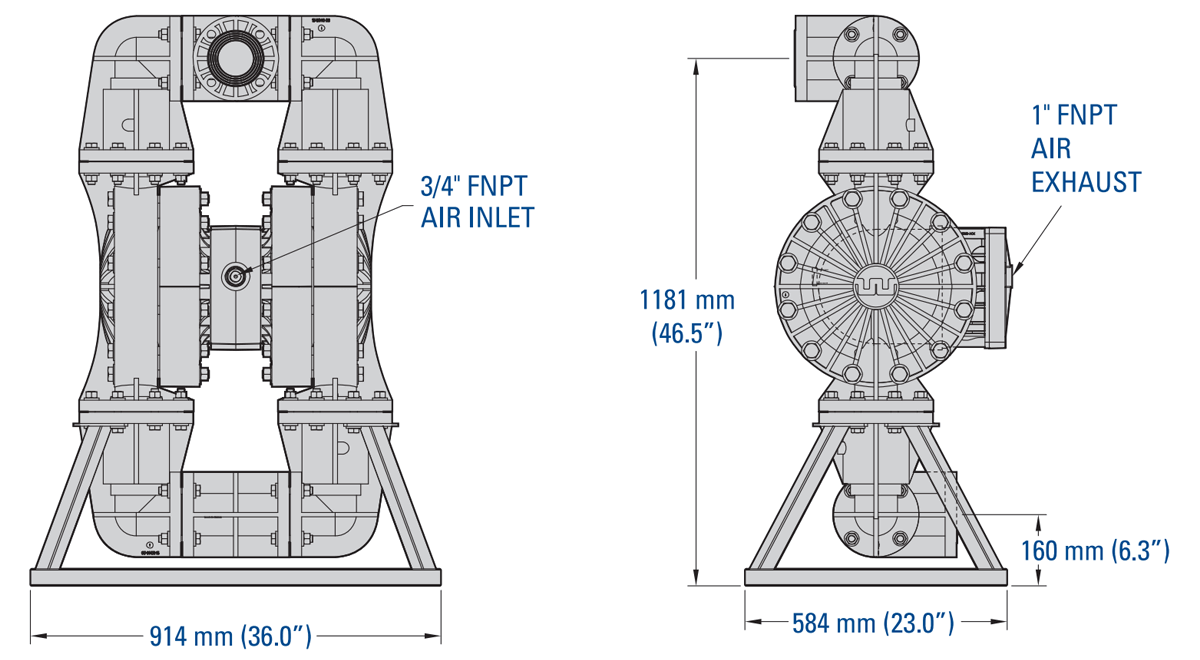

Dim-P1500-76mm3in-BPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P1500 Plastic Manual.

Flow Curve – Full-Stroke PFTE-Fitted

Flo-P1500-76mm3in-BPP

Note: Additional performance curves can be found in the P1500 Plastic Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Full-Stroke PTFE – 878 lpm (232 gpm)
  • Reduced-Stroke PTFE – 784 lpm (207 gpm)
MAX PRESSURE
  • 6.9 bar (100 psi) for polypropylene pumps
  • 8.6 bar (125 psi) for PVDF pumps
MAX DIAMETER SOLIDS
  • 12.7 mm (1/2'')
MAX SUCTION LIFT CAPABILITY
  • Full-Stroke PTFE – 5.5 m (18.2') Dry, 8.6 m (28.4') Wet
  • Reduced-Stroke PTFE – 3.63 m (12') Dry, 8.6 m (28.4') Wet
DISPLACEMENT PER STROKE *
  • Full-Stroke PTFE – 5.8 L (1.52 gal)
  • Reduced-Stroke PTFE – 3.75 L (0.99 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 138 kg (305 lb)
PVDF 161 kg (356 lb)

Non-wetted Housings

Description Material
Center Block Polypropylene
Air Valve Polypropylene
Air Chamber Polypropylene

Elastomer Options

Material Temperature Limits
EPDM -51°C to 138°C (-60°F to 280°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
