Wilden AODD Double Diaphragm Pump - 76 mm (3 in.) - High Pressure Hygienic Series 3A CIP FDA Pump - H1500

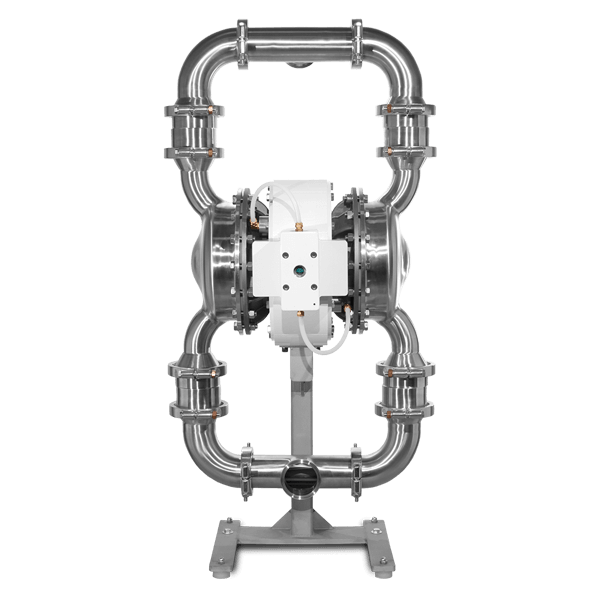

76 mm (3") High-Pressure Saniflo™ Hygienic™ Series Bolted Metal AODD Pump H1500

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • Tri-Clamp®
  • DIN
  • SMS
VALVE OPTIONS
  • Ball
  • Mushroom
MAX SUCTION LIFT CAPABILITY
  • Full-Stroke Integral Piston – 3.8 m (12.5') Dry, 9.0 m (29.5') Wet
MAX FLOW RATE
  • Full-Stroke Integral Piston – 291 lpm (77 gpm)
MAX PRESSURE
  • 5.9 bar (85 psi)
MAX DISCHARGE PRESSURE
  • 17.2 bar (250 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
DISPLACEMENT PER STROKE *
  • Full-Stroke Integral Piston – 1.2 L (0.32 gal)
  • * 1 cycle = 2 strokes
  • usp-logo
  • 3a_logo
  • fda_logo
  • ce_logo

Features and Benefits

High-Pressure Saniflo™ Hygienic™ Series (HS) pumps are uniquely designed for thick viscous product applications such as bean baste, peanut butter, and more. High-Pressure HS pumps meet high-cleanliness requirements and feature a free-draining flow path that enables them to be cleaned with ease. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to biopharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, USP Class VI* and FDA CFR 21.177.

*USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options
  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow - more gallons pumped per SCFM

Performance and Specifications

Dimensions

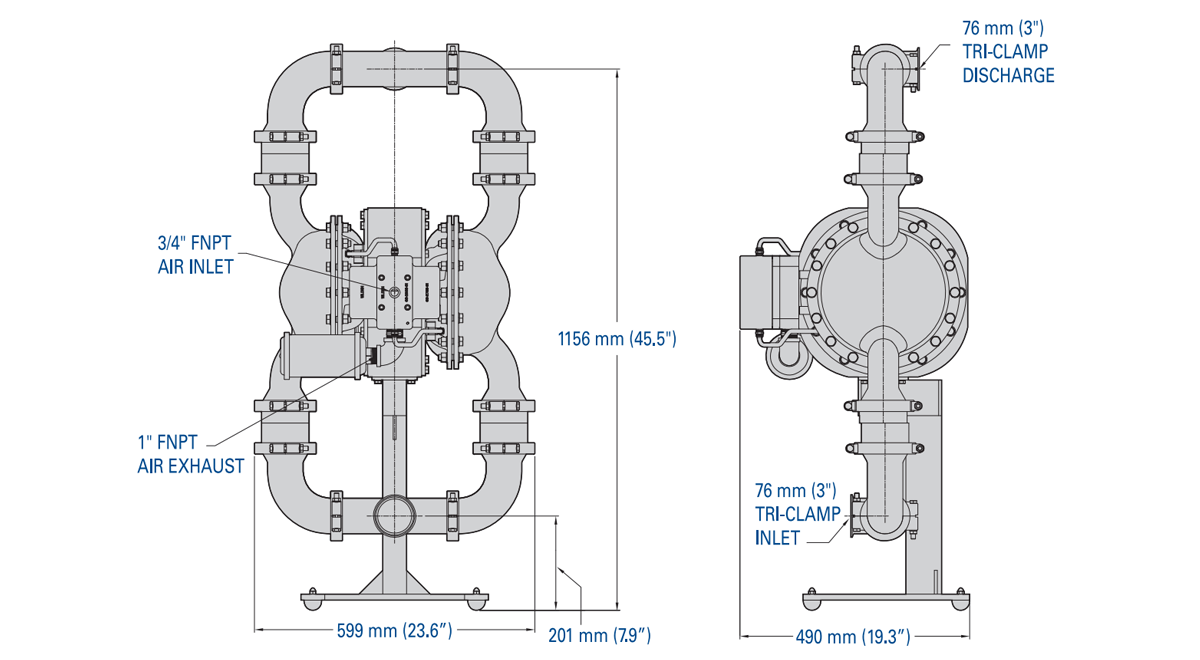

Dim-H1500HS-76mm3-SHS-MP

Note: Dimensions vary by material and connection. For additional information, please refer to the H1500 Metal Manual.

Flow Curve – Full-Stroke Integral Piston Diaphragm (Pure-Fuse)

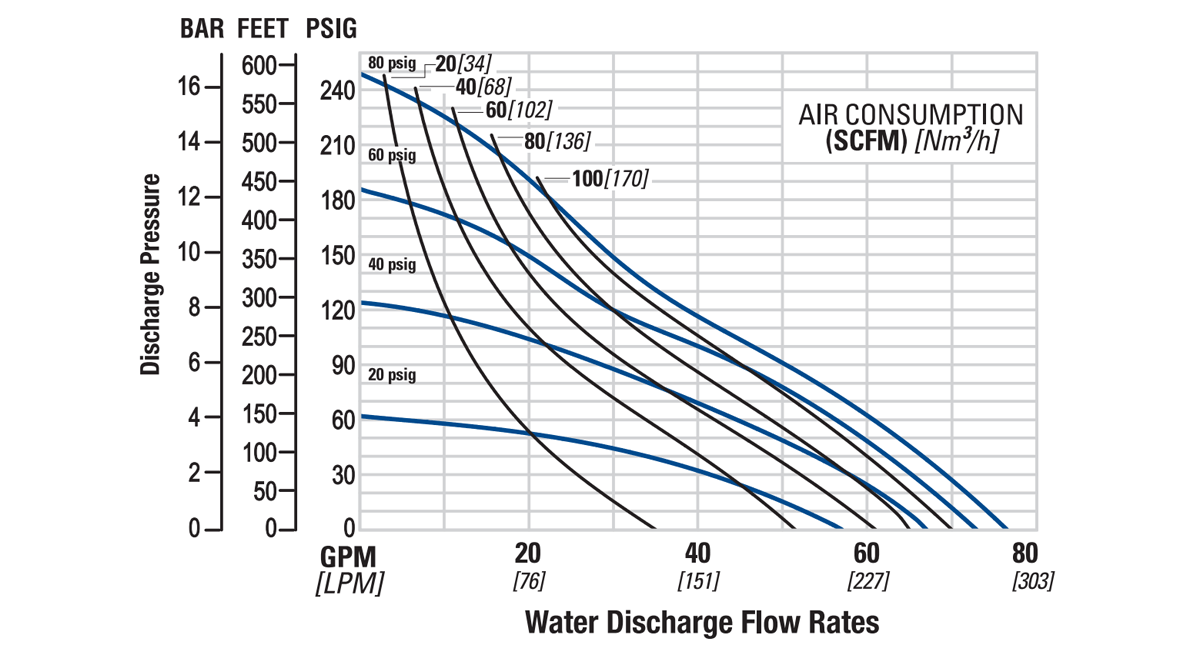

Flo-H1500HS-76mm3-SHS-MP

Note: Additional performance curves can be found in the H1500Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 76 mm (3")
LIQUID DISCHARGE
  • 76 mm (3")
CONNECTION TYPE
  • Tri-Clamp®
  • DIN
  • SMS
MAX FLOW RATE
  • Full-Stroke Integral Piston – 291 lpm (77 gpm)
VALVE OPTIONS
  • Ball
  • Mushroom
MAX PRESSURE
  • 5.9 bar (85 psi)
MAX DISCHARGE PRESSURE
  • 17.2 bar (250 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
MAX SUCTION LIFT CAPABILITY
  • Full-Stroke Integral Piston – 3.8 m (12.5') Dry, 9.0 m (29.5') Wet
DISPLACEMENT PER STROKE *
  • Full-Stroke Integral Piston – 1.2 L (0.32 gal)
  • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
316L Stainless Steel 115 kg (254 lb)

Non-Wetted Housings

Description Material
Center Block Powder-Coated Aluminum
Air Valve Powder-Coated Aluminum
Air Chamber Stainless Steel

Elastomer Options

Material Temperature Limits
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)
