6 mm (1/4") Pro-Flo® Series Clamped Plastic AODD Pump P.025

AIR INLET
  • 1/8" FNPT
LIQUID INLET
  • 6 mm (1/4")
LIQUID DISCHARGE
  • 6 mm (1/4")
CONNECTION TYPE
  • NPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet
  • TPE – 3.05 m (10') Dry, 8.84 m (29') Wet
  • PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet
MAX FLOW RATE
  • Rubber – 18.1 lpm (4.8 gpm)
  • TPE – 18.1 lpm (4.8 gpm)
  • PTFE – 18.1 lpm (4.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 0.4 mm (1/64")
DISPLACEMENT PER STROKE *
  • Rubber – 0.02 L (0.005 gal)
  • TPE – 0.02 L (0.005 gal)
  • PTFE – 0.02 L (0.005 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

  • FNPT threaded inlet/discharge liquid connections
  • Rotatable inlet and discharge for flexibility
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Downloads

EOMs

6 mm (1/4") Pro-Flo Clamped Plastic Pump
Model: P.025 | Code: WIL-10090-E-08

Spec Sheets

SPEC SHEET 6 mm (1/4") Pro-Flo Plastic Pump
Model: P.025 | Code: WIL-10090-T-01

Performance and Specifications

Dimensions

Dim-P.025-6mm.25in-CPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P.025 Plastic Manual.

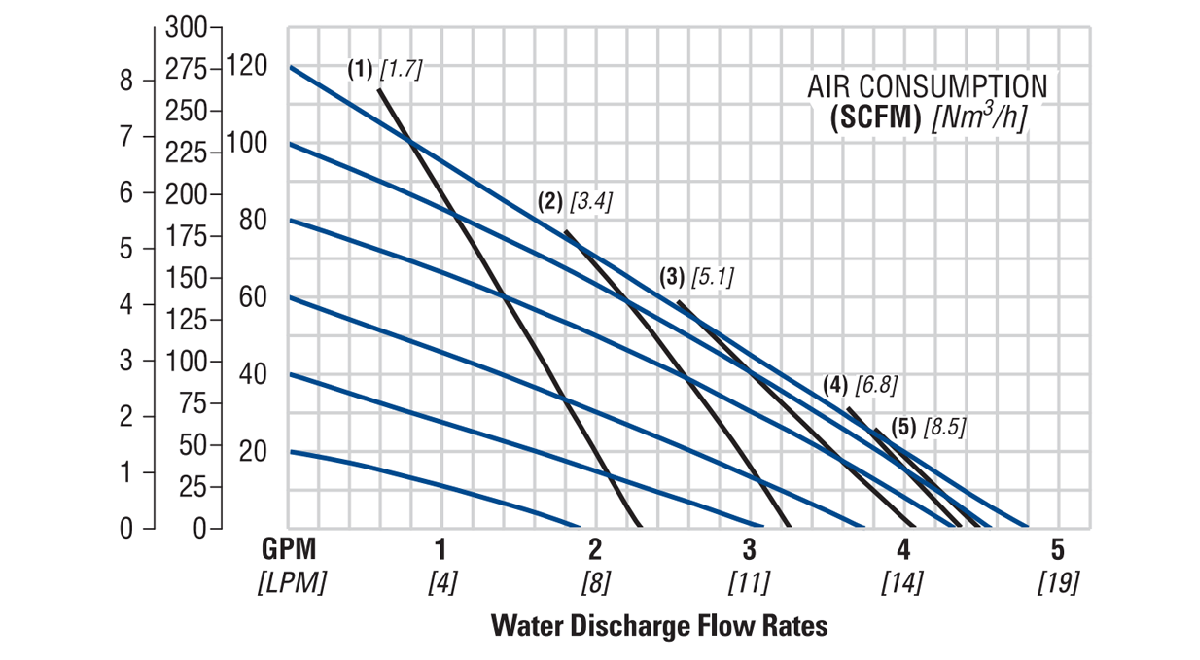

Flow Curve – TPE-Fitted

Flo-P.025-6mm.25in-CPP

Note: Additional performance curves can be found in the P.025 Plastic Manual.

AIR INLET
  • 1/8" FNPT
LIQUID INLET
  • 6 mm (1/4")
LIQUID DISCHARGE
  • 6 mm (1/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 18.1 lpm (4.8 gpm)
  • TPE – 18.1 lpm (4.8 gpm)
  • PTFE – 18.1 lpm (4.8 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 0.4 mm (1/64")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet
  • TPE – 3.05 m (10') Dry, 8.84 m (29') Wet
  • PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 0.02 L (0.005 gal)
  • TPE – 0.02 L (0.005 gal)
  • PTFE – 0.02 L (0.005 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 1.4 kg (3 lb)
PVDF 1.4 kg (3 lb)

Non-Wetted Housings

Description Material
Center Section Polypropylene, Acetal
Air Valve Polypropylene, Acetal

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
