6 mm (1/4") Accu-Flo™ Bolted Plastic AODD Pump A25PS

Combining elegant simplicity with robust and reliable performance that end users have come to trust for more than 20 years, the 6 mm (1/4") Wilden® Accu-Flo™ Series A25PS Bolted Plastic AODD Pump features a direct electrical interface that utilizes electrical impulses to stroke the pump, providing a variable stroke rate that is easily set and controlled as needed. Available in a variety of voltage options, the Accu-Flo A25PS pump offers the flexibility, reliability, performance and dependability required in challenging dosing and batching applications.

• Simple and durable design
• Longest-lasting wear parts
• Lube-free operation
• Bolted construction for superior containment
• Integrated electronic (solenoid) control
• Multiple signal input voltage options: 24V DC, 12V DC and 110V AC

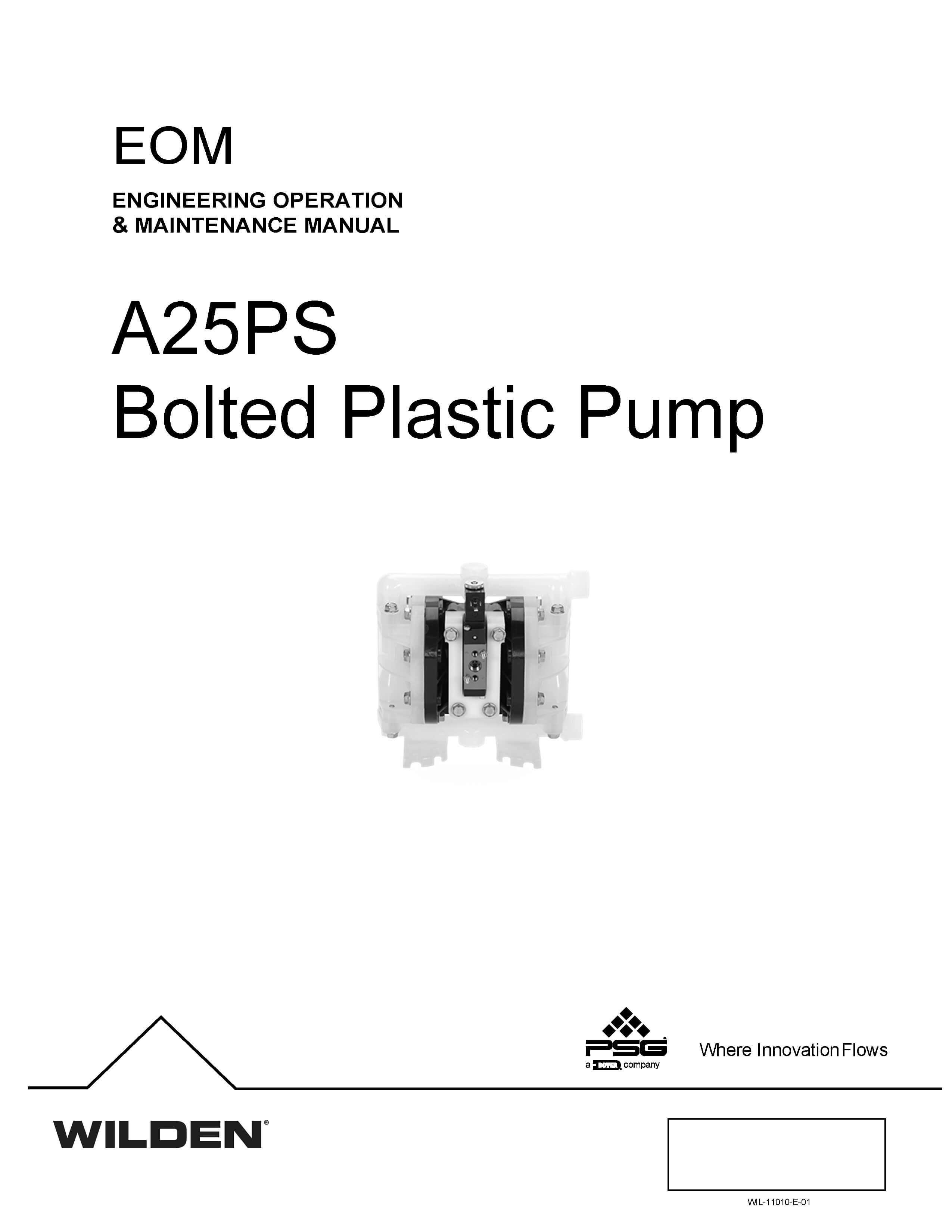

EOMs

Flyers

Dimensions

Note: For additional information, please refer to the A25PS Bolted Plastic Manual (EOM).

Flow Curve – Rubber-Fitted

AIR INLET

• 1/4" FNPT

LIQUID INLET

• 6 mm (1/4")

LIQUID DISCHARGE

• 6 mm (1/4")

CONNECTION TYPE

• FNPT/FBSPT (Threaded)

MAX SUCTION LIFT CAPABILITY

• 4.2 m (14') Dry, 8.5 m (28') Wet

MAX FLOW RATE

• 21.6 lpm (5.7 gpm)

MAX PRESSURE

• 8.3 bar (120 psi)

MAX DIAMETER SOLIDS

• 1.6 mm (1/16")

DISPLACEMENT PER STROKE ^*

• 0.0397 L (0.0105 gal)
^* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
