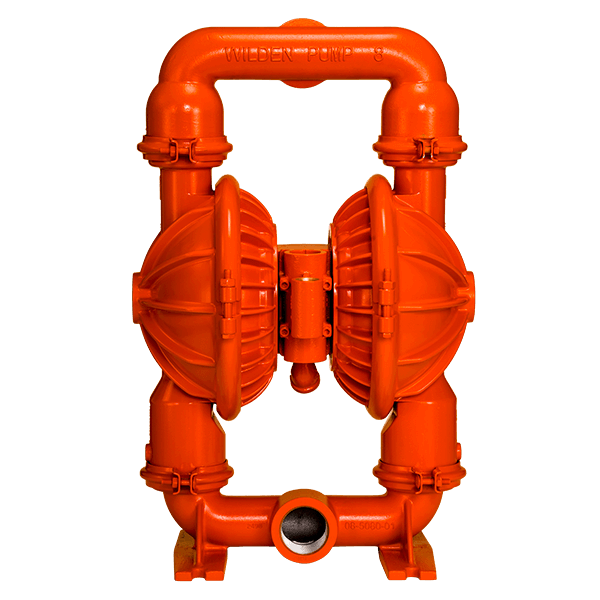

51 mm (2") Turbo-Flo™ Clamped Metal AODD Pump T8

Famous for its long life and easy serviceability, the durable Wilden® Turbo-Flo™ Series is the first air distribution system (ADS) that originated in the air-operated double-diaphragm (AODD) pump industry. Though enhancements have been made, these pumps work well in certain applications where quality of the compressed air is a concern. These pumps are easy to maintain, cost effective, and economical. Portable and available in a single-point exhaust option for submersible applications, the Turbo-Flo excels in utilitarian-type applications, including the transfer of water, slurry and more.

• Simple air distribution system design, minimal moving parts
• Clamped design for lightweight and quick maintenance
• Ability to handle dirty air applications
• Single-point exhaust

EOMs

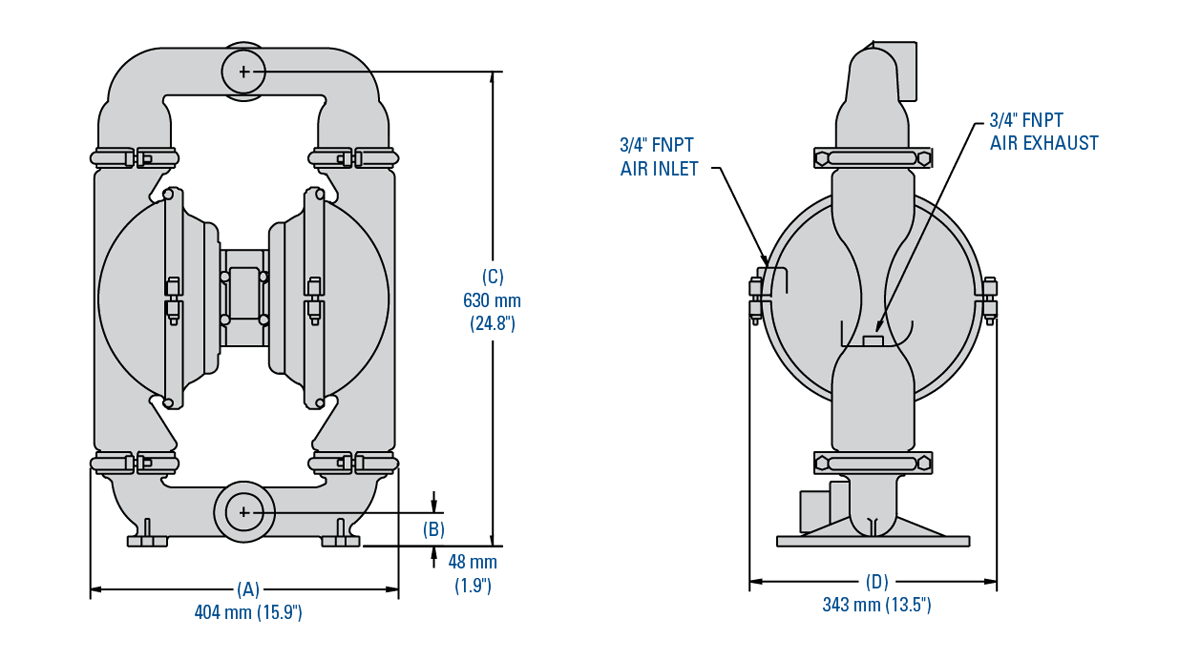

Dimensional Drawings

Dimensions

Note: Dimensions vary by material and connection. For additional information, please refer to the T8 Metal Manual.

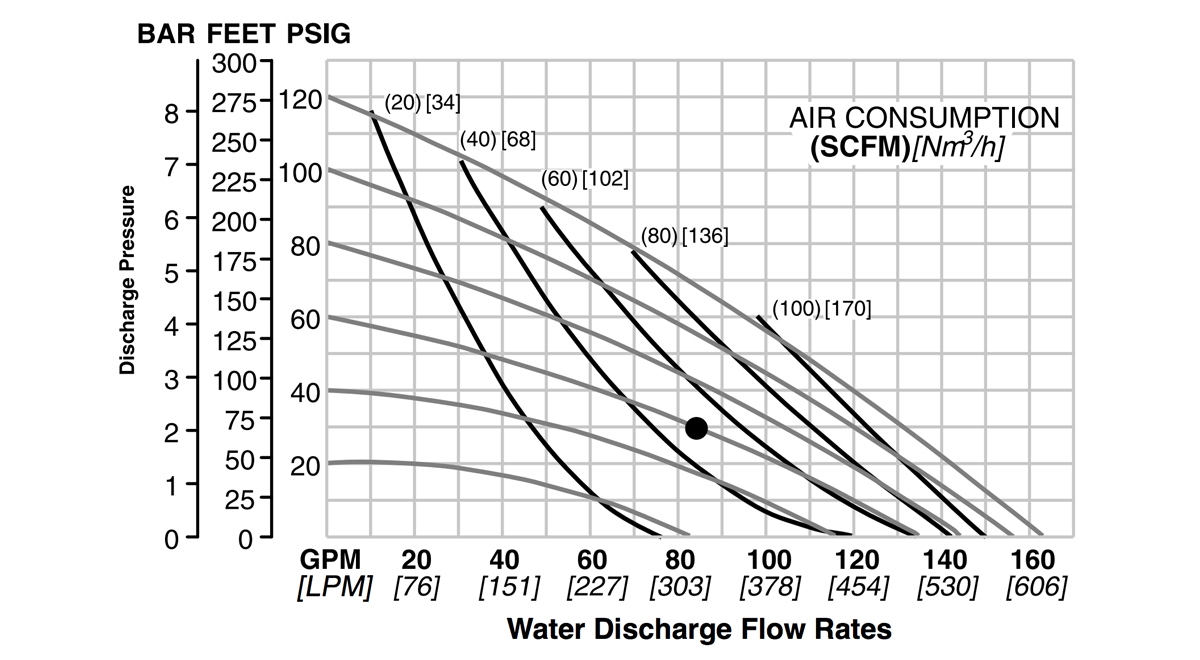

Flow Curve – TPE-Fitted

Note: Additional performance curves can be found in the T8 Metal Manual.

AIR INLET

• 3/4" FNPT

LIQUID INLET

• 51 mm (2")

LIQUID DISCHARGE

• 51 mm (2")

CONNECTION TYPE

• NPT/BSPT (Threaded)

MAX FLOW RATE

• Rubber – 617 lpm (163 gpm)
• TPE – 613 lpm (162 gpm)
• PTFE – 534 lpm (141 gpm)

MAX PRESSURE

• 8.6 bar (125 psi)

MAX DIAMETER SOLIDS

• 6.4 mm (1/4'')

MAX SUCTION LIFT CAPABILITY

• Rubber – 6.4 m (21') Dry, 9.5 m (31') Wet
• TPE – 6.1 m (20') Dry, 9.5 m (31') Wet
• PTFE – 3.7 m (12') Dry, 9.5 m (31') Wet

DISPLACEMENT PER STROKE ^*

• Rubber – 2.69 L (0.71 gal)
• TPE – 2.8 L (0.74 gal)
• PTFE – 1.51 L (0.40 gal)
^* 1 cycle = 2 strokes

Wetted Housings

Non-Wetted Housings
