Wilden AODD Double Diaphragm Pump - 51 mm (2 in.) - Pro-Flo SHIFT Clamped Plastic - PS8

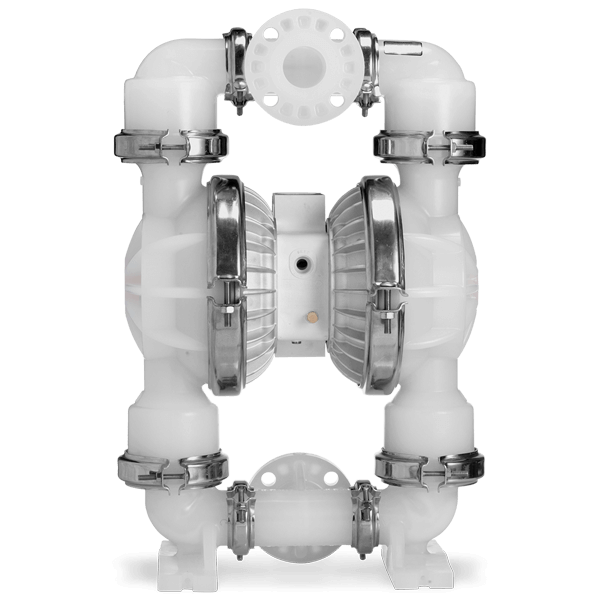

51 mm (2") Pro-Flo® SHIFT Series Clamped Plastic AODD Pump PS8

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.8') Dry, 8.3 m (27.2') Wet
  • EZ-Install TPE – 6.2 m (20.2') Dry, 8.3 m (27.2') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
MAX FLOW RATE
  • Rubber – 643 lpm (170 gpm)
  • EZ-Install TPE – 643 lpm (170 gpm)
  • Full-Stroke PTFE – 597 lpm (158 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4'')
DISPLACEMENT PER STROKE *
  • Rubber – 2.8 L (0.75 gal)
  • EZ-Install TPE – 2.7 L (0.72 gal)
  • Full-Stroke PTFE – 2.6 L (0.69 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE

Features and Benefits

When Jim Wilden first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.

  • DIN and ANSI flanged inlet/discharge liquid connections
  • Rotatable inlet and discharge for flexibility
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Performance and Specifications

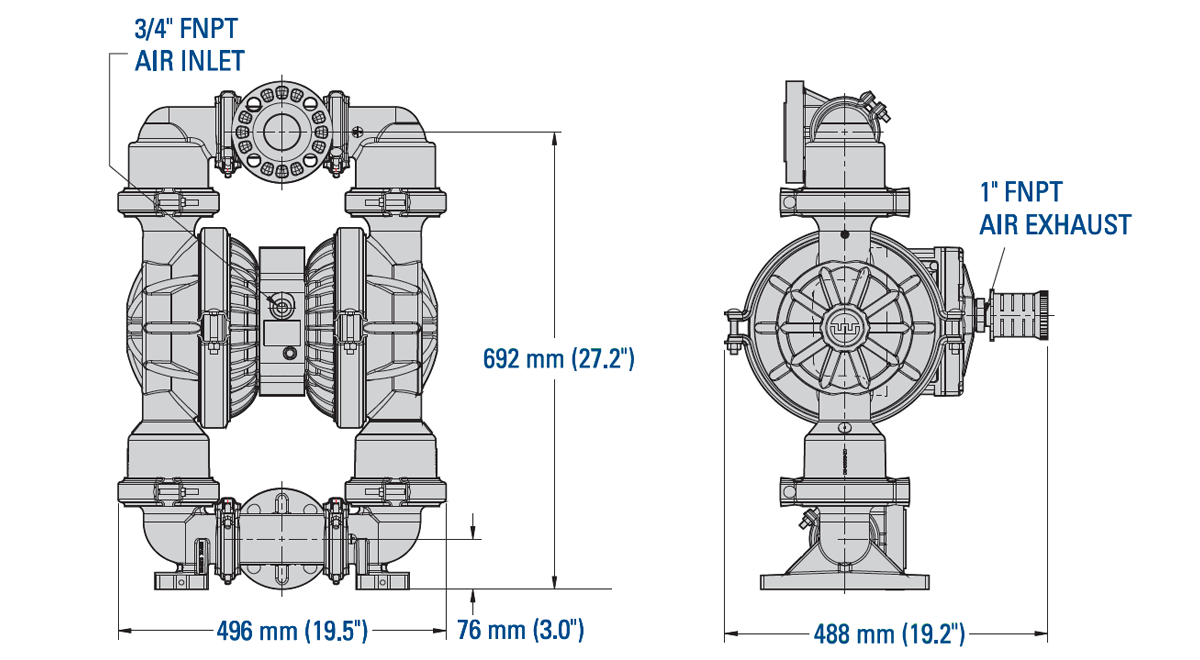

Dimensions

Dim-PS8-51mm

Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Plastic Manual.

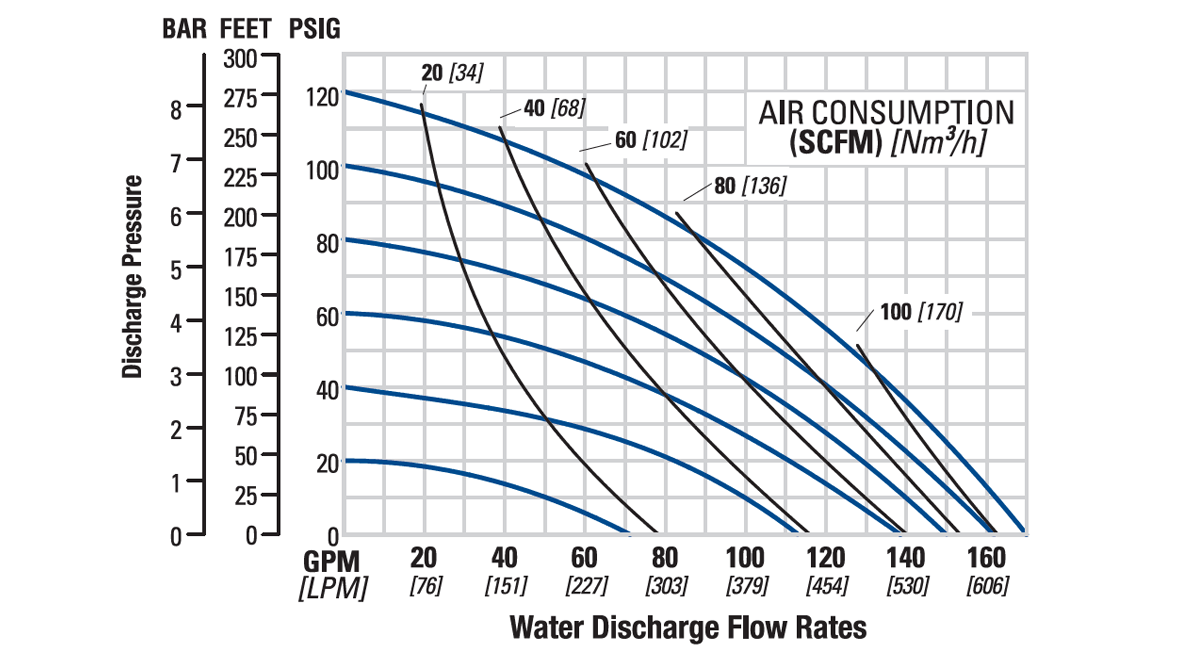

Flow Curve – EZ-Install TPE-Fitted

Flo-PS8-518mm

Note: Additional performance curves can be found in the PS8 Plastic Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • Rubber – 643 lpm (170 gpm)
  • EZ-Install TPE – 643 lpm (170 gpm)
  • Full-Stroke PTFE – 597 lpm (158 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAXIMUM DIAMETER SOLIDS
  • 6.4 mm (1/4'')
MAX SUCTION LIFT CAPABILITY
  • Rubber – 6.6 m (21.8') Dry, 8.3 m (27.2') Wet
  • EZ-Install TPE – 6.2 m (20.2') Dry, 8.3 m (27.2') Wet
  • Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 2.8 L (0.75 gal)
  • EZ-Install TPE – 2.7 L (0.72 gal)
  • Full-Stroke PTFE – 2.6 L (0.69 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 36 kg (79 lb)

Non-Wetted Housings

Description Material
Center Block Polypropylene, Aluminum, Stainless Steel
Air Valve Polypropylene, Aluminum, Stainless Steel
Air Chamber Polypropylene, Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
