51 mm (2") Pro-Flo® SHIFT Series Clamped Metal AODD Pump PS8

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
MAX FLOW RATE
  • Rubber – 700 lpm (185 gpm)
  • EZ-Install TPE – 719 lpm (190 gpm)
  • Full-Stroke PTFE – 723 lpm (191 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4")
DISPLACEMENT PER STROKE *
  • Rubber – 2.6 L (0.69 gal)
  • EZ-Install TPE – 2.6 L (0.69 gal)
  • Full-Stroke PTFE – 2.4 L (0.64 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex

Features and Benefits

Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped billions of gallons of fluid on an annual basis.

  • NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
  • Featuring the energy-efficient Pro-Flo® SHIFT ADS
  • Greater flow - more gallons pumped per SCFM
  • Reduced air consumption and kilowatt usage
  • Decades of proven performance
  • Clamped connections for faster maintenance
  • Low cost
  • Simple installation
  • Ease of operation and maintenance

Performance and Specifications

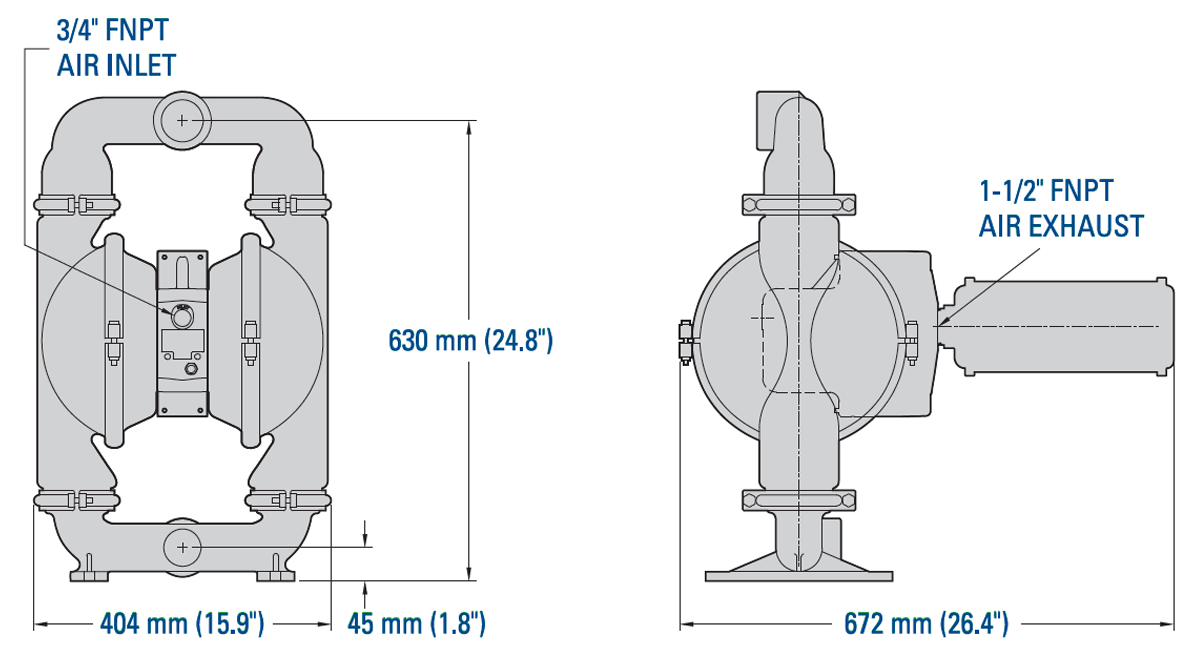

Dimensions

Dim-PS8-51mm-2in-PF-SSCMP

Note: Dimensions vary by material and connection. For additional information, please refer to the PS8 Metal Manual.

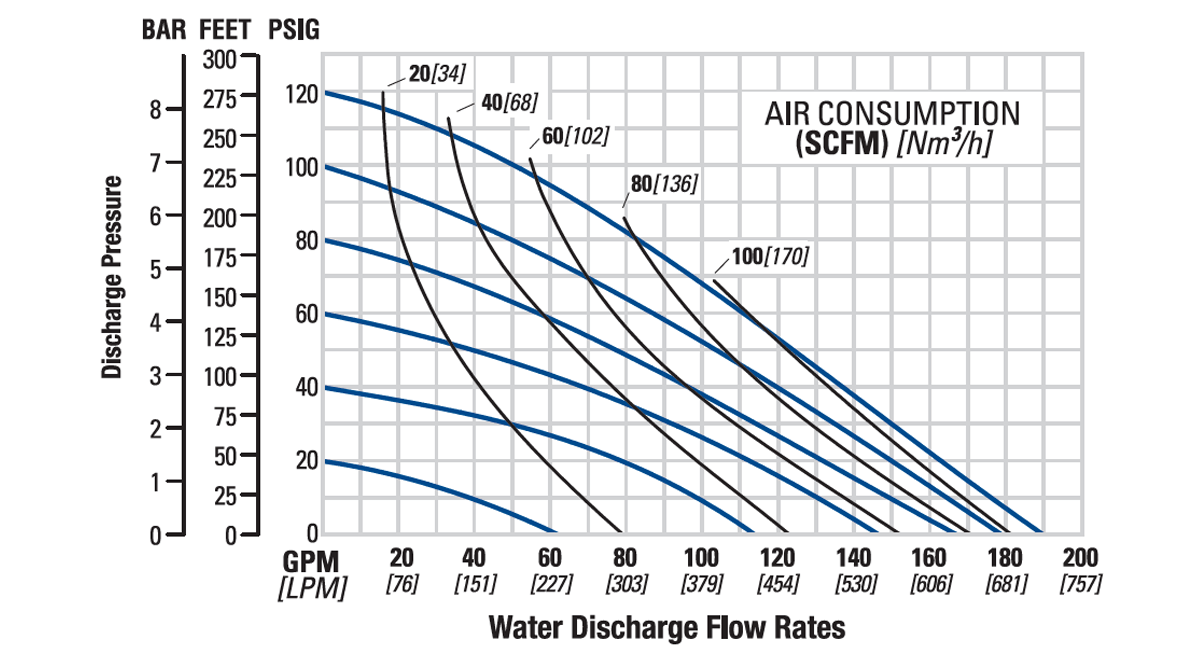

Flow Curve – EZ-Install TPE-Fitted

Flo-PS8-51mm-2in-PF-SSCMP

Note: Additional performance curves can be found in the PS8 Metal Manual.

Air Inlet
  • 3/4" FNPT
LIQUID INLET
  • 51 mm (2")
LIQUID DISCHARGE
  • 51 mm (2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • Rubber – 700 lpm (185 gpm)
  • EZ-Install TPE – 719 lpm (190 gpm)
  • Full-Stroke PTFE – 723 lpm (191 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 6.4 bar (1/4")
MAX SUCTION LIFT CAPABILITY
  • Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet
  • EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet
  • Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet
DISPLACEMENT PER STROKE *
  • Rubber – 2.6 L (0.69 gal)
  • EZ-Install TPE – 2.6 L (0.69 gal)
  • PTFE Full-Stroke – 2.4 L (0.64 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Wt
Aluminum 35 kg (78 lb)
Stainless Steel 53 kg (117 lb)
Ductile Iron 49 kg (109 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene
Air Valve Aluminum, Nickel-Plated Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene
Air Chamber Aluminum, Nickel-Plated Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Geolast® -40°C to 82°C (-40°F to 180°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)
Polyurethane -12°C to 66°C (10°F to 150°F)
Saniflex™ -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ -40°C to 107°C (-40°F to 225°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
