38mm (1-1/2") CSA-Certified Bolted Metal AODD Pump GPS420/GPS430

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE – 4.7 m (15.3) Dry, 9.0 m (29.5’) Wet
  • Full-Stroke PTFE – 4.5 m (14.8’) Dry, 8.6 m (28.4’) Wet
MAX FLOW RATE
  • EZ-Install TPE – 441 lpm (117 gpm)
  • Full-Stroke PTFE – 460 lpm (122 gpm)
MAX PRESSURE
  • 6.9 bar (100 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4”)
DISPLACEMENT PER STROKE *
  • EZ-Install TPE – 0.8 L (0.22 gal)
  • Full-Stroke PTFE – 0.9 L (0.24 gal)
    • * 1 cycle = 2 strokes
  • icon_cert-CE
  • icon_cert-Ex
  • csa logo

Features and Benefits

Wilden® GPS Series pumps, equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) and available in bolted metal construction, are certified by the Canadian Standards Association (CSA) to be powered by natural gas and maintain a safe, reliable operation. They are perfect for oil and gas operations where compressed air is not readily accessible but where natural gas is plentiful.

  • NPT or BSPT threaded inlet/discharge liquid connections (GPS420)
  • DIN or ANSI flanged inlet/discharge liquid connections (GPS430) that don't require welding or nipple attachment
  • GPS Series pumps utilize the Wilden Pro-Flo SHIFT ADS
    • Helps plants save valuable natural gas
    • Pro-Flo SHIFT uses 60% less natural gas, without hindering performance
    • Greater flow - more gallons pumped per SCFM

Performance and Specifications

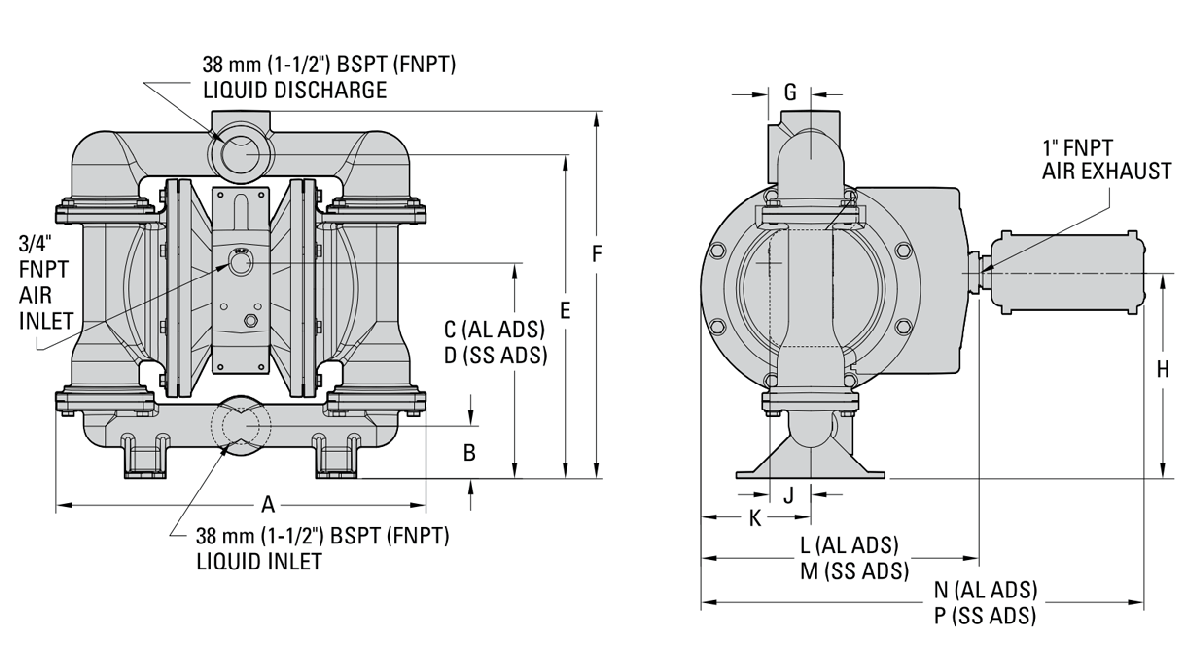

Dimensions

Dim-GPS420-38mm1.5in-CSA-C-BMP

Note: Dimensions vary by material and connection. For additional information, please refer to the GPS420/GPS430 Metal Manual.

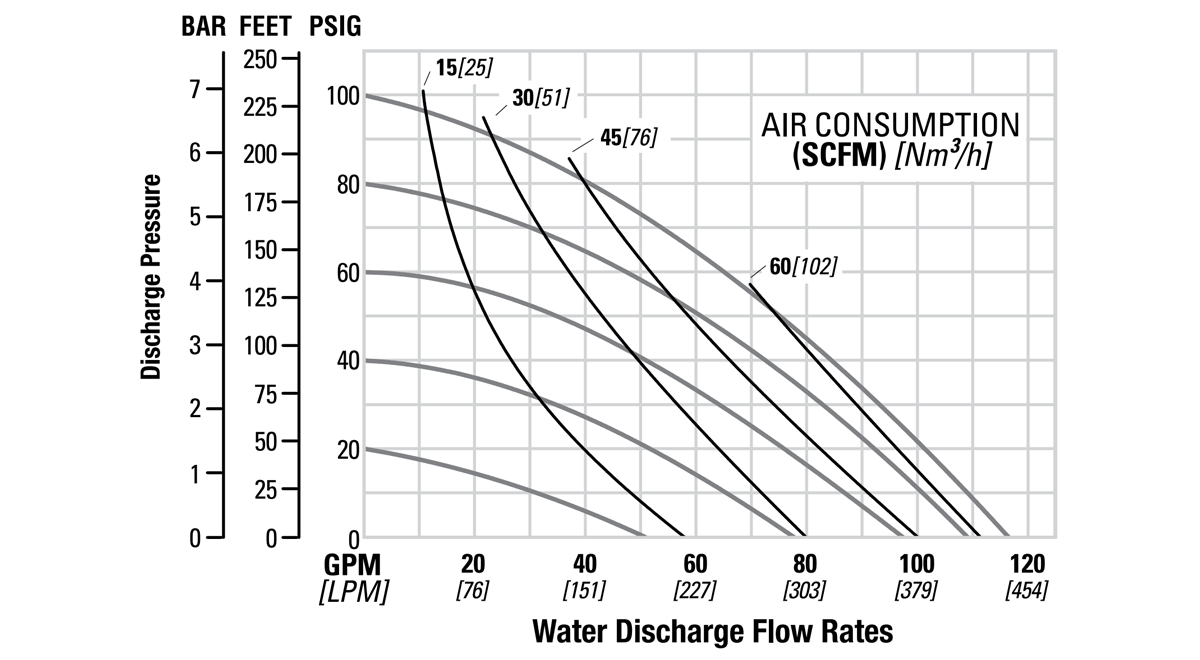

Flow Curve – EZ-Install TPE-Fitted

Flo-GPS420-38mm1.5in-CSA-C-BMP

Note: Additional performance curves can be found in the GPS420/GPS430 Metal Manual.

AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 38 mm (1-1/2")
LIQUID DISCHARGE
  • 38 mm (1-1/2")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
  • DIN/ANSI (Flanged)
MAX FLOW RATE
  • EZ-Install TPE – 441 lpm (117 gpm)
  • Full-Stroke PTFE – 460 lpm (122 gpm)
MAX PRESSURE
  • 6.9 bar (100 psi)
MAX DIAMETER SOLIDS
  • 6.4 mm (1/4”)
MAX SUCTION LIFT CAPABILITY
  • EZ-Install TPE – 4.7 m (15.3) Dry, 9.0 m (29.5’) Wet
  • Full-Stroke PTFE – 4.5 m (14.8’) Dry, 8.6 m (28.4’) Wet
DISPLACEMENT PER STROKE *
  • EZ-Install TPE – 0.8 L (0.22 gal)
  • Full-Stroke PTFE – 0.9 L (0.24 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Aluminum 26 kg (57 lb) (PS420)
28 kg (62 lb) (PS430)
Stainless Steel 50 kg (111 lb) (PS420)
53 kg (116 lb) (PS430)

Non-Wetted Housings

Description Material
Center Section Aluminum, Stainless Steel
Air Valve Aluminum, Stainless Steel
Air Chamber Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
PTFE* 4°C to 104°C (40°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
